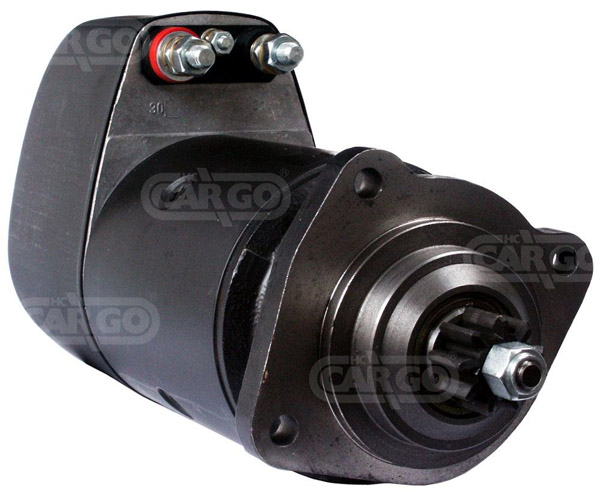

112507 - Starter (112507)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 24, kW 5.4, Mount. flange 89.00, Drive dist. 51.00, Dist./back 322.00, Dist./front 62.00, No. of teeth 9, B+ M10, B- M10, Gear type DD, Dist. 89.35, Dist. 2 126.85, Dist. 3 89.85,
Rotation: CR, No./mount. holes 3 (0), Clutch type Dry,
Drive Type: Steel,
Total Length: 385.00, Oil sealed No, Waterproof No, Info BOSCH OE 0001414022 IS OIL-SEALED. CARGO 112507 IS NOT!
Electrical specifications (Starter) | ||||
| Voltage | 24 | |||
| kW | 5.4 | |||
Physical specifications (Starter) | ||||
| A | Mount. flange 89.00 | |||
| B | Drive dist. 51.00 | |||
| F | Dist./back 322.00 | |||
| G | Dist./front 62.00 | |||
| H | No. of teeth 9 | |||
| I | B+ M10 | |||
| S | B- M10 | |||
| N | Gear type DD | |||
| O | Dist. 89.35 | |||
| O | Dist. 2 126.85 | |||
| O | Dist. 3 89.85 | |||
| P | Rotation CR | |||
| R | Total length 385.00 | |||
Further information (Starter) | ||||
| No./mount. | holes 3 (0) | |||
| Clutch | type Dry | |||
| Drive | type Steel | |||
| Oil | sealed No | |||
| Waterproof | No | |||
| Info | BOSCH OE 0001414022 IS OIL-SEALED. CARGO 112507 IS NOT! | |||
Replacing | ||||
| 0001414022 | BOSCH | |||
| 0001416026 | BOSCH | |||
| 19024026 | REMY (DELCO) | |||
| 4881097 | VOLVO | |||
| 860520 | BUTEC | |||
| im526 | AVF ( DELCO - H/MOGURT ) | |||
UNISTART Price: £248.43
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Volvo, Trucks EU | F Series | 5.5 | Diesel | 1981 02 | 1986 02 | 128 | 174 | 5480 | 6 | TD60B | Platform / Chassis | F 616 | ||
| Volvo, Trucks EU | F Series | 5.5 | Diesel | 1978 12 | 1981 10 | 132 | 180 | 5480 | 6 | TD60B | Platform / Chassis | F 615 S | ||
| Volvo, Trucks EU | F Series | 5.5 | Diesel | 1975 09 | 1986 02 | 128 | 174 | 5480 | 6 | TD60B | Platform / Chassis | F 614 | ||
| Volvo, Trucks EU | F Series | 5.5 | Diesel | 1975 09 | 1986 02 | 128 | 174 | 5480 | 6 | TD60B | Platform / Chassis | F 613 | ||
| Volvo, Trucks EU | F Series | 5.5 | Diesel | 1978 12 | 1986 02 | 132 | 180 | 5480 | 6 | TD60B | Platform / Chassis | F 617 S | ||
| Volvo Penta, Marine | Engine | 5.5 | Diesel | 1982 01 | 1986 06 | 0 | 0 | 5480 | 6 | TD60. | Engine | |||
| Volvo Penta, Marine | Engine | 5.5 | Diesel | 1982 01 | 1986 06 | 0 | 0 | 5480 | 6 | TD60. | Engine |
