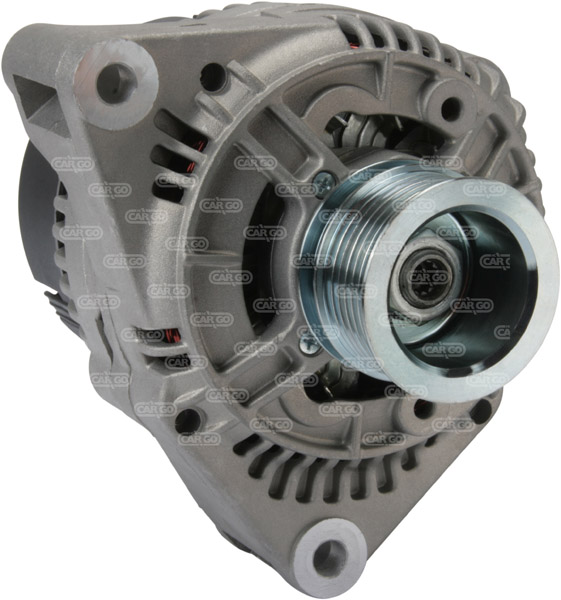

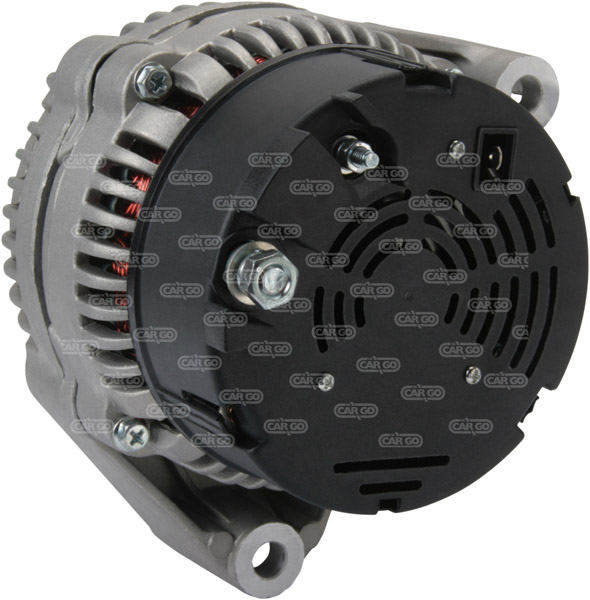

112529 - Alternator (112529)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 90, Terminal W,
Bracket Hole: 10.20, Belt. adj. bracket hole 10.20,
Width/Holder Arm: 56.10, Belt. adj. brackethole pos. 50,
Pulley Dia.: 55.10,
Pulley Dist.: 92.00,
Grooves/Pulley: 6,
Radius: 90.00,
Radius: 90.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: IF, Pulley SP,
Total Length: 200.00

Electrical specifications (Alternator)
Voltage 14
Amp 90
Terminal W

Physical specifications (Alternator)
D Bracket hole 10.20
G Belt. adj. bracket hole 10.20
B Width/holder arm 56.10
E Belt. adj. brackethole pos. 50
H Pulley dia. 55.10
A Pulley dist. 92.00
i Grooves/pulley 6
j Radius 90.00
j Radius 90.00
k B+ position M8
n Rotation CR
o Regulator plug PL_NA
R Total length 200.00

Further information (Alternator)
Blower IF
Pulley SP

Replacing
0091543002 MERCEDES BENZ
0091543002 SSANG YONG
0091543502 MERCEDES BENZ
0091545802 MERCEDES BENZ
0101544702 MERCEDES BENZ
0101545402 MERCEDES BENZ
0111540402 MERCEDES BENZ
0123315501 BOSCH
0123320010 BOSCH
0123320045 BOSCH

UNISTART Price: £126.28

Sorry, this item is out of stock.

The 112529 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators , Trucks, Trailers and Buses > Starters & Alternators , Agriculture > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Mercedes-Benz, Passenger Car EU 220 2.2 Diesel 1993 08 2000 05 70 95 2155 4 Diesel OM604.910 C 220
Mercedes-Benz, Passenger Car EU 300 3 Diesel 1993 06 1996 06 100 136 2996 6 TD OM606.910 Estate E 300
Mercedes-Benz, Passenger Car EU 210 2.9 Diesel 1988 10 1996 02 70 95 2874 5 Diesel OM602.940 Van 210
Mercedes-Benz, Passenger Car EU 210 2.9 Diesel 1988 11 1996 02 72 98 2874 5 Diesel OM602.940 Bus 210
Mercedes-Benz, Passenger Car EU 230 2.3 Gasoline 1995 10 2000 05 142 193 2295 4 M111.975 Kompressor C 230
Mercedes-Benz, Passenger Car EU 250 2.5 Diesel 1995 10 2000 05 110 150 2497 5 TD OM605.960 C 250
Mercedes-Benz, Passenger Car EU 220 2.2 Diesel 1995 06 1999 07 70 95 2155 4 Diesel OM604.912 E 220
Mercedes-Benz, Passenger Car EU 308 2.3 Diesel 1990 05 1996 02 58 79 2299 4 Diesel OM601.940 Bus 308
Mercedes-Benz, Passenger Car EU 220 2.2 Diesel 1996 06 1998 09 70 95 2155 4 Diesel OM604.910 Estate C 220
Mercedes-Benz, Passenger Car EU 290 2.9 Diesel 1996 06 1999 07 95 129 2874 5 TD OM602.982 Estate E 290
Mercedes-Benz, Passenger Car EU 310 2.9 Diesel 1989 06 1996 02 70 95 2874 5 Diesel OM602.940 Van 310
Mercedes-Benz, Passenger Car EU 200 2 Diesel 1996 01 2002 03 65 88 1997 4 Diesel OM604.917 E 200
Mercedes-Benz, Passenger Car EU Sprinter 2.3 Diesel 1995 01 2000 04 58 79 2299 4 Diesel OM601.943 Platform / Chassis Sprinter 208
Mercedes-Benz, Passenger Car EU Sprinter 2.3 Diesel 1996 09 2000 04 60 82 2299 4 Diesel OM601.943 Platform / Chassis Sprinter 208
Mercedes-Benz, Passenger Car EU Sprinter 2.3 Diesel 1995 02 2000 04 58 79 2299 4 Diesel OM601.943 Platform / Chassis Sprinter 308
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1995 02 2000 04 90 122 2874 5 Diesel OM602.980 Platform / Chassis Sprinter 312
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1997 05 2002 08 75 102 2874 5 Diesel OM602.980 Bus 4x4 Sprinter 310
Mercedes-Benz, Passenger Car EU 230 2.3 Gasoline 2000 06 2002 06 145 197 2295 4 M111.982 Coupe Kompressor 230
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1997 05 2006 05 75 102 2874 5 Diesel OM602.980 Platform / Chassis 4x4 Sprinter 410
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1996 02 2006 05 90 122 2874 5 Diesel OM602.980 Platform / Chassis Sprinter 412
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1996 02 2006 05 90 122 2874 5 Diesel OM602.980 Van Sprinter 412
Mercedes-Benz, Passenger Car EU 4t 2.9 Diesel 1988 11 1995 06 70 95 2874 5 Diesel OM602.940 Twin Cab 410
Mercedes-Benz, Passenger Car EU 4t 2.3 Diesel 1988 11 1995 06 58 79 2299 4 Diesel OM601.940 Platform / Chassis 408
Mercedes-Benz, Passenger Car EU 208 2.3 Diesel 1988 11 1996 02 58 79 2299 4 Diesel OM601.940 Van 208
Mercedes-Benz, Passenger Car EU 210 2.9 Diesel 1988 10 1996 02 72 98 2874 5 Diesel OM602.940 Van 210
Mercedes-Benz, Passenger Car EU 300 3 Diesel 1993 06 1996 06 108 147 2996 6 TD OM603.960 Estate E 300
Mercedes-Benz, Passenger Car EU 308 2.3 Diesel 1989 06 1996 02 60 82 2299 4 Diesel OM601.940 Platform / Chassis 308
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1995 02 2000 04 90 122 2874 5 Diesel OM602.980 Platform / Chassis Sprinter 212
Mercedes-Benz, Passenger Car EU Sprinter 2.3 Diesel 1995 02 2000 04 58 79 2299 4 Diesel OM601.943 Van Sprinter 308
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1997 01 2000 04 75 102 2874 5 Diesel OM602.980 Platform / Chassis Sprinter 210
Mercedes-Benz, Passenger Car EU 200 2 Gasoline 1998 03 2000 06 141 192 1998 4 M111.944 Convertible Kompressor CLK 200
Mercedes-Benz, Passenger Car EU 200 2 Gasoline 2000 06 2002 06 120 163 1998 4 M111.956 Coupe Kompressor 200
Mercedes-Benz, Passenger Car EU Sprinter 2.3 Diesel 1996 02 2006 05 58 79 2299 4 Diesel OM601.943 Van Sprinter 408
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1996 02 2006 05 75 102 2874 5 Diesel OM602.980 Van Sprinter 410
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1997 05 2006 05 75 102 2874 5 Diesel OM602.980 Van 4x4 Sprinter 410
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1996 02 2006 05 85 115 2874 5 Diesel OM602.980 Van Sprinter 412
Mercedes-Benz, Passenger Car EU 4t 2.3 Diesel 1988 11 1995 06 58 79 2299 4 Diesel OM601.940 Twin Cab 408
Mercedes-Benz, Passenger Car EU 4t 2.9 Diesel 1988 11 1995 06 70 95 2874 5 Diesel OM602.940 Platform / Chassis 410
Mercedes-Benz, Passenger Car EU 210 2.9 Diesel 1988 11 1996 02 70 95 2874 5 Diesel OM602.940 Platform / Chassis 210
Mercedes-Benz, Passenger Car EU 310 2.9 Diesel 1989 06 1996 02 72 98 2874 5 Diesel OM602.940 Van 310
Mercedes-Benz, Passenger Car EU 208 2.3 Diesel 1988 10 1996 02 58 79 2299 4 Diesel OM601.940 Bus 208
Mercedes-Benz, Passenger Car EU 208 2.3 Diesel 1988 10 1996 02 60 82 2299 4 Diesel OM601.940 Bus 208
Mercedes-Benz, Passenger Car EU 210 2.9 Diesel 1988 11 1996 02 70 95 2874 5 Diesel OM602.940 Bus 210
Mercedes-Benz, Passenger Car EU 310 2.9 Diesel 1990 06 1996 02 72 98 2874 5 Diesel OM602.940 Bus 310
Mercedes-Benz, Passenger Car EU 200 2 Diesel 1996 10 2000 05 65 88 1997 4 Diesel OM604.915 C 200
Mercedes-Benz, Passenger Car EU 200 2 Gasoline 1995 10 2000 05 132 180 1998 4 M111.944 Kompressor C 200
Mercedes-Benz, Passenger Car EU 300 3 Diesel 1993 06 1996 06 108 147 2996 6 TD OM603.963 Estate 4 Matic E 300
Mercedes-Benz, Passenger Car EU 200 2 Gasoline 1996 11 2000 05 141 192 1998 4 M111.944 Kompressor C 200
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1995 02 2000 04 75 102 2874 5 Diesel OM602.980 Van Sprinter 310
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1995 02 2000 04 90 122 2874 5 Diesel OM602.980 Bus Sprinter 312
Mercedes-Benz, Passenger Car EU Sprinter 2.3 Diesel 1995 02 2000 04 58 79 2299 4 Diesel OM601.943 Bus Sprinter 308
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1995 02 2000 04 90 122 2874 5 Diesel OM602.980 Van Sprinter 312
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1997 05 2002 08 90 122 2874 5 Diesel OM602.980 Bus 4x4 Sprinter 312
Mercedes-Benz, Passenger Car EU 200 2 Gasoline 1996 11 2001 03 141 192 1998 4 M111.944 Estate C 200
Mercedes-Benz, Passenger Car EU 310 2.9 Diesel 1989 06 1996 02 72 98 2874 5 Diesel OM602.940 Platform / Chassis 310
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1996 02 2006 05 75 102 2874 5 Diesel OM602.980 Platform / Chassis Sprinter 410
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1997 05 2006 05 90 122 2874 5 Diesel OM602.980 Platform / Chassis 4x4 Sprinter 412
Mercedes-Benz, Passenger Car EU 200 2 Gasoline 2000 09 2001 03 120 163 1998 4 M111.956 Estate Kompressor C 200
Mercedes-Benz, Passenger Car EU Sprinter 2.3 Diesel 1995 02 2000 04 58 79 2299 4 Diesel OM601.943 Bus Sprinter 208
Mercedes-Benz, Passenger Car EU 250 2.5 Diesel 1995 06 1999 07 83 113 2497 5 Diesel OM605.912 E 250
Mercedes-Benz, Passenger Car EU 300 3 Diesel 1995 06 1997 06 100 136 2996 6 Diesel OM606.912 E 300
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1995 02 2000 04 90 122 2874 5 Diesel OM602.980 Van Sprinter 212
Mercedes-Benz, Passenger Car EU Sprinter 2.3 Diesel 1996 10 2000 04 60 82 2299 4 Diesel OM601.943 Van Sprinter 208
Mercedes-Benz, Passenger Car EU Sprinter 2.3 Diesel 1996 11 2000 04 60 82 2299 4 Diesel OM601.943 Platform / Chassis Sprinter 308
Mercedes-Benz, Passenger Car EU 230 2.3 Gasoline 1997 06 2000 09 142 193 2295 4 M111.975 Estate Kompressor C 230
Mercedes-Benz, Passenger Car EU 208 2.3 Diesel 1988 11 1996 02 58 79 2299 4 Diesel OM601.940 Platform / Chassis 208
Mercedes-Benz, Passenger Car EU 350 3.4 Diesel 1991 09 2002 10 100 136 3449 6 TD OM603.972 350 G
Mercedes-Benz, Passenger Car EU 308 2.3 Diesel 1989 06 1996 02 58 79 2299 4 Diesel OM601.940 Platform / Chassis 308
Mercedes-Benz, Passenger Car EU 208 2.3 Diesel 1989 06 1996 02 60 82 2299 4 Diesel OM601.940 Platform / Chassis 208
Mercedes-Benz, Passenger Car EU 308 2.3 Diesel 1988 11 1996 02 58 79 2299 4 Diesel OM601.940 Van 308
Mercedes-Benz, Passenger Car EU 308 2.3 Diesel 1989 06 1996 02 60 82 2299 4 Diesel OM601.940 Bus 308
Mercedes-Benz, Passenger Car EU 250 2.5 Diesel 1993 06 1996 06 83 113 2497 5 TD OM605.911 Estate E 250
Mercedes-Benz, Passenger Car EU 308 2.3 Diesel 1989 06 1996 02 60 82 2299 4 Diesel OM601.940 Van 308
Mercedes-Benz, Passenger Car EU T1 2.3 Gasoline 1982 01 1994 12 70 95 2299 4 M102.942 Platform / Chassis T1
Mercedes-Benz, Passenger Car EU 230 2.3 Gasoline 1998 03 2000 06 142 193 2295 4 M111.975 Convertible Kompressor CLK 230
Mercedes-Benz, Passenger Car EU 220 2.2 Diesel 1996 06 2001 03 55 75 2155 4 Diesel OM604.910 Estate C 220
Mercedes-Benz, Passenger Car EU Sprinter 2.3 Diesel 1996 02 2006 05 58 79 2299 4 Diesel OM601.943 Platform / Chassis Sprinter 408
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1996 02 2006 05 85 115 2874 5 Diesel OM602.980 Platform / Chassis Sprinter 412
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1997 05 2002 08 90 122 2874 5 Diesel OM602.980 Van 4x4 Sprinter 312
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1998 12 2001 09 85 116 2874 5 Diesel Platform / Chassis Sprinter 312
Mercedes-Benz, Passenger Car EU 210 2.9 Diesel 1988 11 1996 02 72 98 2874 5 Diesel OM602.940 Platform / Chassis 210
Mercedes-Benz, Passenger Car EU 200 2 Diesel 1993 03 2000 05 55 75 1997 4 Diesel OM601.913 C 200
Mercedes-Benz, Passenger Car EU 250 2.5 Diesel 1993 05 2000 05 83 113 2497 5 Diesel OM605.910 C 250
Mercedes-Benz, Passenger Car EU 208 2.3 Diesel 1988 10 1996 02 60 82 2299 4 Diesel OM601.940 Van 208
Mercedes-Benz, Passenger Car EU 310 2.9 Diesel 1989 06 1996 02 70 95 2874 5 Diesel OM602.940 Bus 310
Mercedes-Benz, Passenger Car EU 250 2.5 Diesel 1993 07 1995 06 83 113 2497 5 Diesel OM605.911 E 250
Mercedes-Benz, Passenger Car EU 300 3 Diesel 1993 07 1995 06 100 136 2996 6 Diesel OM606.910 E 300
Mercedes-Benz, Passenger Car EU 250 2.5 Diesel 1996 06 2001 03 110 150 2497 5 TD OM605.960 Estate C 250
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1995 02 2000 04 90 122 2874 5 Diesel OM602.980 Bus Sprinter 212
Mercedes-Benz, Passenger Car EU 230 2.3 Gasoline 1997 06 2000 06 142 193 2295 4 M111.975 Coupe Kompressor CLK 230
Mercedes-Benz, Passenger Car EU 250 2.5 Diesel 1997 06 1999 07 110 150 2497 5 TD OM605.962 E 250
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1997 01 2000 04 75 102 2874 5 Diesel OM602.980 Platform / Chassis Sprinter 310
Mercedes-Benz, Passenger Car EU 310 2.9 Diesel 1989 06 1996 02 70 95 2874 5 Diesel OM602.940 Platform / Chassis 310
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1997 05 2006 05 85 115 2874 5 Diesel OM602.980 Platform / Chassis 4x4 Sprinter 412
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1997 05 2006 05 85 115 2874 5 Diesel OM602.980 Van 4x4 Sprinter 412
Mercedes-Benz, Passenger Car EU Sprinter 2.9 Diesel 1997 05 2006 05 90 122 2874 5 Diesel OM602.980 Van 4x4 Sprinter 412
Mercedes-Benz, Passenger cars US 300 3.2 Gasoline 1993 01 1993 01 0 0 3199 L6 300 TE
Mercedes-Benz, Passenger cars US 230 2.3 Gasoline 1997 01 1997 01 0 0 2295 L4 C 230
Mercedes-Benz, Passenger cars US 300 3.2 Gasoline 1993 01 1993 01 0 0 3199 L6 300 CE
Mercedes-Benz, Passenger cars US 320 3.2 Gasoline 1994 01 1997 01 0 0 3199 L6 E 320
Mercedes-Benz, Passenger cars US 300 3.2 Gasoline 1993 01 1993 01 0 0 3199 L6 300 E
Mercedes-Benz, Passenger cars US 36 3.6 Gasoline 1995 01 1997 01 0 0 3606 L6 C 36 AMG
Mercedes-Benz, Passenger cars US 300 2.8 Gasoline 1993 01 1993 01 0 0 2799 L6 300 E
Mercedes-Benz, Passenger cars US 300 3 Diesel 1995 01 1997 01 0 0 2996 L6 E 300 D
Mercedes-Benz, Passenger cars US 280 2.8 Gasoline 1994 01 1997 01 0 0 2799 L6 C 280
Mercedes-Benz, Passenger cars US 300 3.4 Diesel 1992 01 1993 01 0 0 3449 L6 Turbo 300 SD
Mercedes-Benz, Passenger cars US 220 2.2 Gasoline 1994 01 1996 01 0 0 2199 L4 C 220
John Deere, Agricultural 6000 Series Diesel 1994 01 - 0 0 6788 6 6920
John Deere, Agricultural 6000 Series Diesel 1994 01 - 0 0 0 0 6020
John Deere, Agricultural 6000 Series Diesel 1994 01 - 0 0 6788 6 6520
John Deere, Agricultural 6000 Series Diesel 1994 01 - 0 0 6788 6 6620
John Deere, Agricultural 6000 Series 4.5 Diesel 1994 01 - 0 0 4530 4 6420 S
John Deere, Agricultural 6000 Series Diesel 1994 01 - 0 0 6788 6 6820
Ssangyong, Passenger Car EU Korando 2.3 Diesel 1996 12 - 58 79 2299 4 Diesel OM601.940 4WD Korando
Ssangyong, Passenger Car EU Musso 2.9 Diesel 1996 03 - 73 99 2874 5 Diesel OM662 4WD Musso
Ssangyong, Passenger Car EU Korando 2.9 Diesel 1996 12 - 72 98 2874 5 Diesel OM662 4WD Korando
Ssangyong, Passenger Car EU Musso 2.3 Diesel 1995 10 - 59 80 2299 4 Diesel OM661 4WD Musso
Ssangyong, Passenger Car EU Istana 1996 07 - 0 0 0 Various Models
Ssangyong, Passenger Car EU Musso 2.3 Diesel 1995 10 - 59 80 2299 4 Diesel OM601.940 4WD Musso
Ssangyong, Passenger Car EU Korando 2.9 Diesel 1997 11 - 72 98 2874 5 Diesel OM662 Convertible Korando
