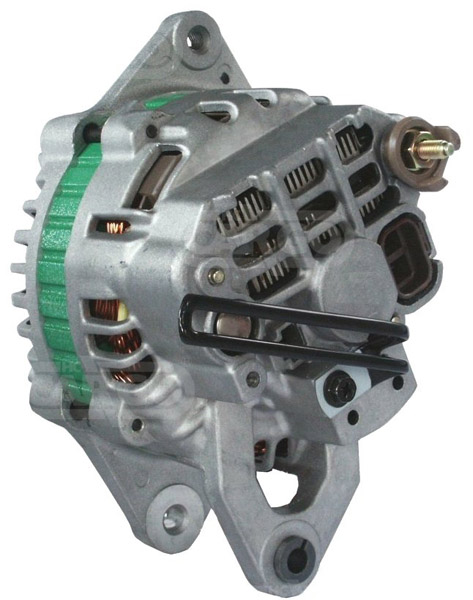

112531 - Alternator (112531)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 60,
Bracket Hole: 8.50, Belt. adj. bracket hole M8,
Width/Holder Arm: 13.00, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 55.00,
Pulley Dia.: 55.00,
Pulley Dist.: 37.45,
Grooves/Pulley: 4,
Radius: 90.00,
Radius: 86.50,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL07,
Blower: IF, Pulley SP,
Total Length: 162.50

Electrical specifications (Alternator)
Voltage 14
Amp 60

Physical specifications (Alternator)
D Bracket hole 8.50
G Belt. adj. bracket hole M8
B Width/holder arm 13.00
E Belt. adj. brackethole pos. 60
C Mount. bracket dist. 55.00
H Pulley dia. 55.00
A Pulley dist. 37.45
i Grooves/pulley 4
j Radius 90.00
j Radius 86.50
k B+ position M6
n Rotation CR
o Regulator plug PL07
R Total length 162.50

Further information (Alternator)
Blower IF
Pulley SP

Replacing
101211-0560 DENSO
327121A1 CASE
A002T09291 MITSUBISHI
A002T09392 MITSUBISHI
A002T43691 MITSUBISHI
A002T48691 MITSUBISHI
a2t09291 MITSUBISHI
a2t09392 MITSUBISHI
a2t43691 MITSUBISHI
a2t48691 MITSUBISHI

UNISTART Price: £92.86

Sorry, this item is out of stock.

The 112531 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Mitsubishi, Passenger Car EU Colt 1.5 Gasoline 1988 04 1992 05 62 84 1468 4 4G15 Hatchback Colt
Mitsubishi, Passenger Car EU Colt 1.5 Gasoline 1990 07 1992 05 66 90 1468 4 4G15 Hatchback Colt
Mitsubishi, Passenger Car EU Lancer 1.5 Gasoline 1988 04 1992 05 62 84 1468 4 4G15 Lancer
Mitsubishi, Passenger Car EU Lancer 1.5 Gasoline 1989 05 1992 05 66 90 1468 4 12V 4G15 Hatchback Lancer
Mitsubishi, Passenger Car EU Galant 2.4 Gasoline 1985 07 1990 04 82 112 2351 4 G64B Galant
Mitsubishi, Passenger Car EU Space Wagon 2 Gasoline 1988 06 1991 04 74 101 1997 4 4G63 MPV Space Wagon
Mitsubishi, Passenger Car EU Colt 1.3 Gasoline 1988 04 1992 05 55 75 1299 4 12V 4G13 Hatchback Colt
Mitsubishi, Passenger Car EU Lancer 1.3 Gasoline 1988 04 1992 05 44 60 1299 4 4G13 Lancer
Mitsubishi, Passenger Car EU Lancer 1.5 Gasoline 1989 05 1992 05 66 90 1468 4 12V 4G15 Lancer
Mitsubishi, Passenger Car EU Galant 2 Gasoline 1984 06 1990 04 75 102 1997 4 4G63 Galant
Mitsubishi, Passenger Car EU Space Wagon 2 Gasoline 1985 03 1991 04 75 102 1997 4 4G63 MPV 4WD Space Wagon
Mitsubishi, Passenger Car EU Colt 1.3 Gasoline 1988 04 1990 12 44 60 1299 4 4G13 Hatchback Colt
Mitsubishi, Passenger Car EU Lancer 1.3 Gasoline 1992 06 1994 05 55 75 1299 4 12V 4G13 Hatchback Lancer
Mitsubishi, Passenger Car EU Galant 2 Gasoline 1986 06 1990 04 66 90 1997 4 G63B Galant
Mitsubishi, Passenger Car EU Space Wagon 2 Gasoline 1988 06 1991 04 74 101 1997 4 4G63 MPV 4WD Space Wagon
Mitsubishi, Passenger Car EU Space Wagon 1.8 Gasoline 1987 10 1988 08 66 90 1755 4 4G37 MPV 4WD Space Wagon
Mitsubishi, Passenger Car EU Lancer 1.5 Gasoline 1990 09 1991 12 66 90 1468 4 12V 4G15 Estate Lancer
Mitsubishi, Passenger Car EU Sapporo 2.4 Gasoline 1987 06 1990 08 91 124 2351 4 4G64 Coupe Sapporo
Mitsubishi, Passenger Car EU Colt 1.3 Gasoline 1988 04 1992 05 51 70 1299 4 4G13 Hatchback Colt
Mitsubishi, Passenger Car EU Lancer 1.5 Gasoline 1988 09 1990 12 61 83 1468 4 4G15 Estate Lancer
Mitsubishi, Passenger Car EU Lancer 1.3 Gasoline 1988 08 1992 05 51 70 1299 4 4G13 Lancer
Mitsubishi, Passenger Car EU Lancer 1.3 Gasoline 1991 01 1992 06 55 75 1299 4 12V 4G13 Lancer
Mitsubishi, Passenger Car EU Lancer 1.5 Gasoline 1988 06 1992 05 62 84 1468 4 4G15 Hatchback Lancer
Hyundai, Passenger Car EU Pony 1.5 Gasoline 1990 01 1995 01 53 72 1468 4 G4DJ Pony
Hyundai, Passenger Car EU Pony 1.5 Gasoline 1990 01 1995 01 61 83 1468 4 i G15B Pony
Hyundai, Passenger Car EU Scoupe 1.5 Gasoline 1990 02 1996 05 62 84 1468 4 i G15B Coupe Scoupe
Hyundai, Passenger Car EU Pony 1.5 Gasoline 1989 10 1995 01 62 84 1468 4 i G4DJ Hatchback Pony
Hyundai, Passenger Car EU Pony 1.5 Gasoline 1989 10 1995 01 62 84 1468 4 i G15B Hatchback Pony
Hyundai, Passenger Car EU Lantra 1.5 Gasoline 1990 10 1995 11 63 86 1468 4 i G4DJ Lantra
Hyundai, Passenger Car EU Pony 1.5 Gasoline 1990 01 1995 01 53 72 1468 4 G15B Pony
Hyundai, Passenger Car EU Pony 1.5 Gasoline 1990 01 1995 01 62 84 1468 4 i G15B Pony
Hyundai, Passenger Car EU Lantra 1.5 Gasoline 1990 10 1995 11 63 86 1468 4 i G15B Lantra
Hyundai, Passenger Car EU Pony 1.5 Gasoline 1990 01 1995 01 61 83 1468 4 i G4DJ Pony
Hyundai, Passenger Car EU Pony 1.5 Gasoline 1990 01 1995 01 62 84 1468 4 i G4DJ Pony
Hyundai, Passenger Car EU Pony 1.3 Gasoline 1989 10 1995 01 43 58 1299 4 G4DG Hatchback Pony
Hyundai, Passenger Car EU Pony 1.5 Gasoline 1989 10 1995 01 53 72 1468 4 G4DJ Hatchback Pony
Hyundai, Passenger Car EU Pony 1.5 Gasoline 1989 10 1995 01 53 72 1468 4 G15B Hatchback Pony
Hyundai, Passenger Car EU Pony 1.5 Gasoline 1989 10 1995 01 61 83 1468 4 i G4DJ Hatchback Pony
Hyundai, Passenger Car EU Scoupe 1.5 Gasoline 1990 02 1996 05 62 84 1468 4 i G4DJ Coupe Scoupe
Hyundai, Passenger Car EU Pony 1.3 Gasoline 1989 10 1995 01 49 67 1299 4 G4DG Hatchback Pony
Hyundai, Passenger Car EU Lantra 1.5 Gasoline 1990 10 1995 11 63 86 1468 4 i G4DJ Lantra
Hyundai, Passenger Car EU Lantra 1.5 Gasoline 1990 10 1995 11 63 86 1468 4 i G15B Lantra
Hyundai, Passenger Car EU Pony 1.3 Gasoline 1989 10 1995 01 43 58 1299 4 G4DG Hatchback Pony
Hyundai, Passenger Car EU Pony 1.3 Gasoline 1989 10 1995 01 49 67 1299 4 G4DG Hatchback Pony
