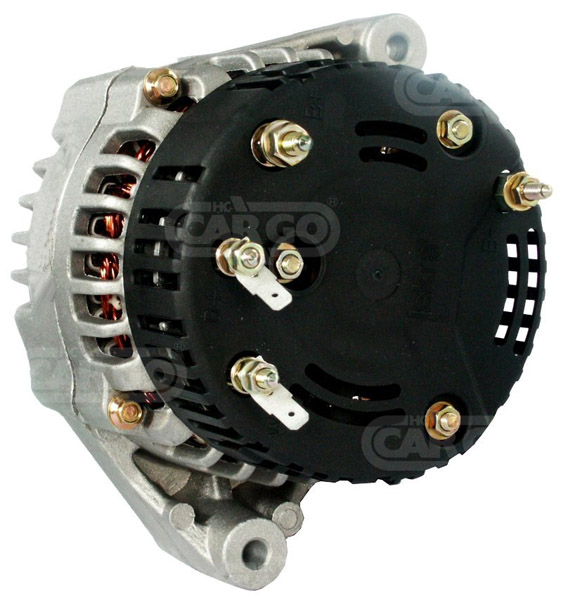

112556 - Alternator (112556)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 95, Terminal W,
Bracket Hole: 8.30, Belt. adj. bracket hole 8.30,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 55,
Radius: 84.30,
Radius: >85,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: IF, Pulley w/o, Remarks Dust proof.,
Total Length: 190.50, Source Mahle Letrika
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 95 | |||
| Terminal | W | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 8.30 | |||
| G | Belt. adj. bracket hole 8.30 | |||
| B | Width/holder arm 56.00 | |||
| E | Belt. adj. brackethole pos. 55 | |||
| j | Radius 84.30 | |||
| j | Radius >85 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
| R | Total length 190.50 | |||
| Source | Mahle Letrika | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | w/o | |||
| Remarks | Dust proof. | |||
Replacing | ||||
| 11.201.666 | ISKRA | |||
| 11.201.675 | ISKRA | |||
| 11.203.016 | ISKRA | |||
| 11.203.098 | ISKRA | |||
| 16359975 | ZETOR | |||
| 836640927 | VALMET | |||
| aak5114 | ISKRA | |||
| aak5118 | ISKRA | |||
| aak5315 | ISKRA | |||
| aak5363 | ISKRA | |||
UNISTART Price: £238.59
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Valtra, Agricultural | X Series | 1999 01 | - | 0 | 0 | 0 | X 100 | |||||||
| Valtra, Agricultural | 8000 Series | Diesel | 1996 01 | - | 0 | 0 | 0 | 620DS | 8150 | |||||
| Valtra, Agricultural | 8000 Series | Diesel | 1998 01 | - | 0 | 0 | 0 | 634DS | 8950 | |||||
| Valtra, Agricultural | S | 8.4 | Diesel | - | - | 0 | 0 | 0 | 645D.. | S260 | ||||
| Valtra, Agricultural | 8000 Series | Diesel | 1996 01 | - | 0 | 0 | 0 | 620DS | 8050 | |||||
| Valtra, Agricultural | 8000 Series | Diesel | 1996 01 | - | 0 | 0 | 0 | 620DW | 8450 | |||||
| Valtra, Agricultural | 8000 Series | Diesel | 1996 01 | - | 0 | 0 | 0 | 634DA | 8750 | |||||
| Valtra, Agricultural | X Series | 1999 01 | - | 0 | 0 | 0 | X 110 | |||||||
| Valtra, Agricultural | X Series | 1999 01 | - | 0 | 0 | 0 | X 120 | |||||||
| Valtra, Agricultural | 8000 Series | Diesel | 1998 01 | - | 0 | 0 | 0 | 634DS | 8550 | |||||
| Valtra, Agricultural | 8000 Series | Diesel | 1996 01 | - | 0 | 0 | 0 | 634DS | 8750 | |||||
| Valtra, Agricultural | S | 8.4 | Diesel | - | - | 0 | 0 | 0 | S230 | |||||
| Same, Agricultural | Titan | 6 | Diesel | 1991 05 | - | 117 | 0 | 0 | 6 | Diesel | Titan 160 | |||
| Same, Agricultural | Titan | 6 | Diesel | 1992 01 | - | 139 | 0 | 0 | 6 | Diesel | Titan 190 |
