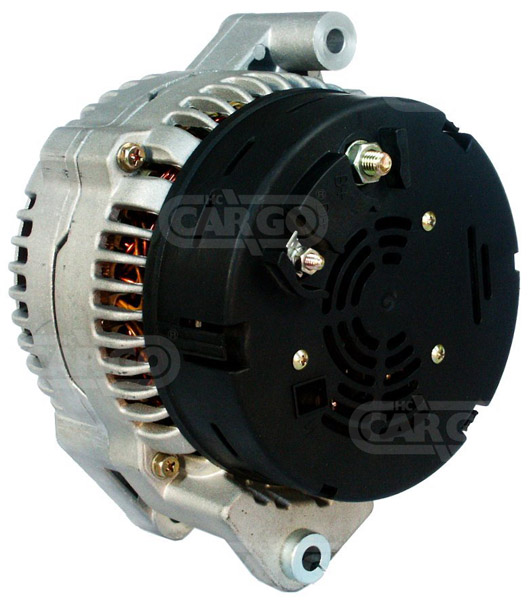

112557 - Alternator (112557)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 120,
Bracket Hole: 8.50, Belt. adj. bracket hole 8.50,
Width/Holder Arm: 21.00, Belt. adj. brackethole pos. 45, Belt. adj. brackethole pos. 58,
Mount. Bracket Dist.: 55.50,
Pulley Dia.: 56.00,
Pulley Dist.: 47.80,
Grooves/Pulley: 6,
Radius: 90.50,
Radius: 92.60,
Radius: 89.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: IF, Pulley SP, Belt. adj. bracket hole 8.50,
Total Length: 180.00

Electrical specifications (Alternator)
Voltage 14
Amp 120

Physical specifications (Alternator)
D Bracket hole 8.50
G Belt. adj. bracket hole 8.50
B Width/holder arm 21.00
E Belt. adj. brackethole pos. 45
E Belt. adj. brackethole pos. 58
C Mount. bracket dist. 55.50
H Pulley dia. 56.00
A Pulley dist. 47.80
i Grooves/pulley 6
j Radius 90.50
j Radius 92.60
j Radius 89.00
k B+ position M8
n Rotation CR
o Regulator plug PL_NA
G Belt. adj. bracket hole 8.50
R Total length 180.00

Further information (Alternator)
Blower IF
Pulley SP

Replacing
0120465006 BOSCH
0120465012 BOSCH
0120500004 BOSCH
0123213006 BOSCH
0123310017 BOSCH
0123310030 BOSCH
0123315016 BOSCH
0123315021 BOSCH
0123500004 BOSCH
0123500014 BOSCH

UNISTART Price: £122.10

Sorry, this item is out of stock.

The 112557 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Volvo, Passenger Car EU 850 2.5 Gasoline 1991 06 1994 07 103 140 2435 5 10V B5252 850
Volvo, Passenger Car EU 850 2.5 Gasoline 1994 08 1996 12 106 144 2435 5 B5252FS Estate 850
Volvo, Passenger Car EU V90 2.9 Gasoline 1997 01 1998 12 150 204 2922 6 B6304G Estate V90
Volvo, Passenger Car EU 850 2.3 Gasoline 1995 08 1996 12 184 250 2319 5 B5234T4 T5R 850
Volvo, Passenger Car EU 960 2.9 Gasoline 1990 08 1994 07 150 204 2922 6 B6304S Estate 960
Volvo, Passenger Car EU 850 2.5 Gasoline 1994 08 1996 12 106 144 2435 5 10V B5252S 850
Volvo, Passenger Car EU 850 2.5 Gasoline 1992 09 1996 12 125 170 2435 5 20V B5254S Estate 850
Volvo, Passenger Car EU 960 2.5 Gasoline 1994 07 1996 12 125 170 2473 6 24V B6254S 960
Volvo, Passenger Car EU 960 2.5 Gasoline 1994 08 1996 12 125 170 2473 6 24V B6254S Estate 960
Volvo, Passenger Car EU 850 2 Gasoline 1993 08 1996 12 155 210 1984 5 Turbo B5204FT 850
Volvo, Passenger Car EU 850 2.5 Gasoline 1996 04 1996 12 142 193 2435 5 B5254T Estate AWD 850
Volvo, Passenger Car EU 850 2.3 Gasoline 1993 08 1996 07 166 226 2319 5 B5234FT T5 850
Volvo, Passenger Car EU 850 2.3 Gasoline 1995 08 1996 12 184 250 2319 5 B5234T4 Estate T5R 850
Volvo, Passenger Car EU 960 2,9 Gasoline 1990 08 1994 07 150 204 2922 6 B6304F 960
Volvo, Passenger Car EU 960 2.9 Gasoline 1990 08 1994 07 150 204 2922 6 B6304F Estate 960
Volvo, Passenger Car EU 850 2.5 Gasoline 1991 08 1996 12 125 170 2435 5 20V B5254S 850
Volvo, Passenger Car EU 960 2.9 Gasoline 1994 07 1996 12 150 204 2922 6 24V B6304S 960
Volvo, Passenger Car EU 960 2.9 Gasoline 1995 08 1996 12 150 204 2922 6 24V B6304S Estate 960
Volvo, Passenger Car EU 850 2 Gasoline 1993 02 1996 12 155 210 1984 5 Turbo B5204FT Estate 850
Volvo, Passenger Car EU 850 2.5 Gasoline 1992 08 1994 07 103 140 2435 5 B5252 Estate 850
Volvo, Passenger Car EU V90 2.9 Gasoline 1997 01 1998 12 132 180 2922 6 B6304S2 Estate V90
Volvo, Passenger Car EU S40 1.6 Gasoline 1999 03 2003 12 80 109 1587 4 B4164S2 S40
Volvo, Passenger Car EU 850 2.3 Gasoline 1993 02 1996 12 166 226 2319 5 B5234FT Estate T5 850
Volvo, Passenger Car EU S90 2.9 Gasoline 1997 01 1998 05 150 204 2922 6 B6304G S90
Volvo, Passenger Car EU S90 2.9 Gasoline 1997 01 1998 05 132 180 2922 6 B6304S2 S90
Volvo, Passenger Car EU V40 1.6 Gasoline 1999 03 2004 06 80 109 1587 4 B4164S2 Estate V40
Volvo, Passenger Car EU 960 2,9 Gasoline 1990 08 1994 07 150 204 2922 6 B6304G 960
Renault, Passenger Car EU Laguna 2 Gasoline 1995 06 2001 03 102 139 1948 4 16V N7Q704 Hatchback Laguna
Renault, Passenger Car EU Laguna 2 Gasoline 1995 09 2001 03 102 139 1948 4 16V N7Q700 Estate Laguna
Renault, Passenger Car EU Laguna 2 Gasoline 1995 06 2001 03 102 139 1948 4 16V N7Q700 Hatchback Laguna
Renault, Passenger Car EU Laguna 2 Gasoline 1995 09 2001 03 102 139 1948 4 16V N7Q704 Estate Laguna
Renault, Passenger Car EU Safrane 2.5 Gasoline 1996 07 2000 12 121 165 2435 5 20V N7U700 Hatchback Safrane
Renault, Passenger Car EU Safrane 2.5 Gasoline 1996 07 2000 12 121 165 2435 5 20V N7U701 Hatchback Safrane
Renault, Passenger Car EU Safrane 1.9 Gasoline 1996 07 2000 12 100 136 1948 4 16V N7Q710 Hatchback Safrane
Renault, Passenger Car EU Laguna 2 Gasoline 1999 09 2001 03 103 140 1998 4 16V F4R780 Estate Laguna
Renault, Passenger Car EU Safrane 1.9 Gasoline 1996 07 2000 12 100 136 1948 4 16V N7Q711 Hatchback Safrane
Volvo, Passenger cars AO 850 2.3 Gasoline 1995 06 1997 10 177 241 2319 5 Turbo B5234T5 Estate R 850
Volvo, Passenger cars US 960 2.9 Gasoline 1992 01 1997 01 0 0 2917 L6 B6304F 960
