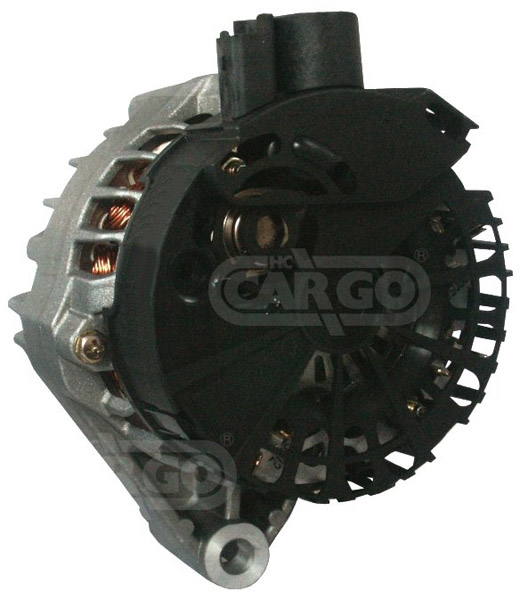

112648 - Alternator (112648)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 70,
Bracket Hole: 10.20, Belt. adj. bracket hole 8.90,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 50,
Pulley Dia.: 56.20,
Pulley Dist.: 75.00,
Grooves/Pulley: 5,
Radius: 90.00,
Radius: 90.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL72,
Blower: IF, Pulley SP,
Total Length: 173.00, Source Marelli
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 70 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.20 | |||
| G | Belt. adj. bracket hole 8.90 | |||
| B | Width/holder arm 56.00 | |||
| E | Belt. adj. brackethole pos. 50 | |||
| H | Pulley dia. 56.20 | |||
| A | Pulley dist. 75.00 | |||
| i | Grooves/pulley 5 | |||
| j | Radius 90.00 | |||
| j | Radius 90.00 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL72 | |||
| R | Total length 173.00 | |||
| Source | Marelli | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | SP | |||
Replacing | ||||
| 2542305 | VALEO | |||
| 2542398 | VALEO | |||
| 2542398B | VALEO | |||
| 63321741 | MAGNETI MARELLI | |||
| 9638276180 | PEUGEOT | |||
| a11vi102 | VALEO | |||
| a11vi108 | VALEO | |||
UNISTART Price: £184.65
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Citroen, Passenger Car EU | Saxo | 1.4 | Gasoline | 1996 05 | 2003 06 | 55 | 75 | 1360 | 4 | KFX (TU3JP) | Hatchback | VTS | Saxo | |
| Citroen, Passenger Car EU | Saxo | 1.6 | Gasoline | 1996 05 | 2003 06 | 65 | 88 | 1587 | 4 | NFZ (TU5JP) | Hatchback | Saxo | ||
| Citroen, Passenger Car EU | Berlingo | 1.6 | Gasoline | 2000 10 | - | 80 | 109 | 1587 | 4 | 16V | NFU (TU5JP4) | Van | Berlingo | |
| Citroen, Passenger Car EU | Saxo | 1.1 | Gasoline | 1996 05 | 2003 09 | 40 | 54 | 1124 | 4 | HDZ (TU1M) | Hatchback | Saxo | ||
| Citroen, Passenger Car EU | Saxo | 1.1 | Gasoline | 1996 05 | 2003 09 | 44 | 60 | 1124 | 4 | HDZ (TU1M) | Hatchback | Saxo | ||
| Peugeot, Passenger Car EU | 106 | 1.4 | Gasoline | 1996 05 | - | 55 | 75 | 1360 | 4 | i | KFX (TU3JP) | Hatchback | 106 | |
| Peugeot, Passenger Car EU | 106 | 1.1 | Gasoline | 1997 01 | - | 40 | 54 | 1124 | 4 | i | HDY (TU1M) | Hatchback | 106 | |
| Peugeot, Passenger Car EU | 106 | 1.1 | Gasoline | 1996 05 | - | 44 | 60 | 1124 | 4 | i | HDZ (TU1M) | Hatchback | 106 | |
| Peugeot, Passenger Car EU | 106 | 1.1 | Gasoline | 2000 03 | - | 44 | 60 | 1124 | 4 | i | HFX (TU1JP) | Hatchback | 106 |
