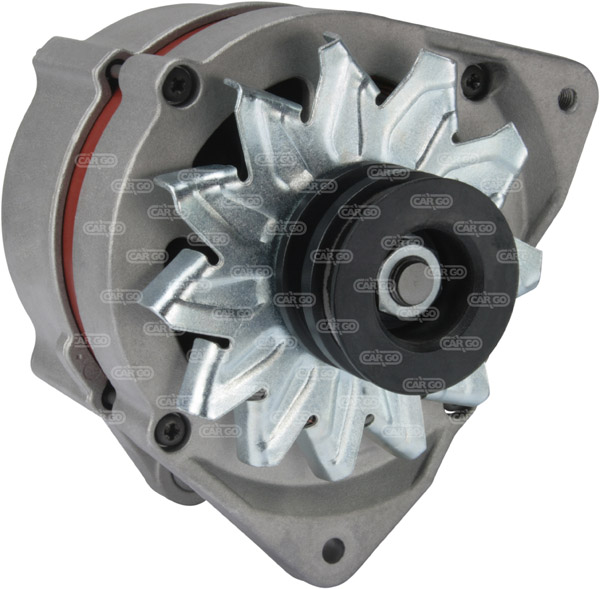

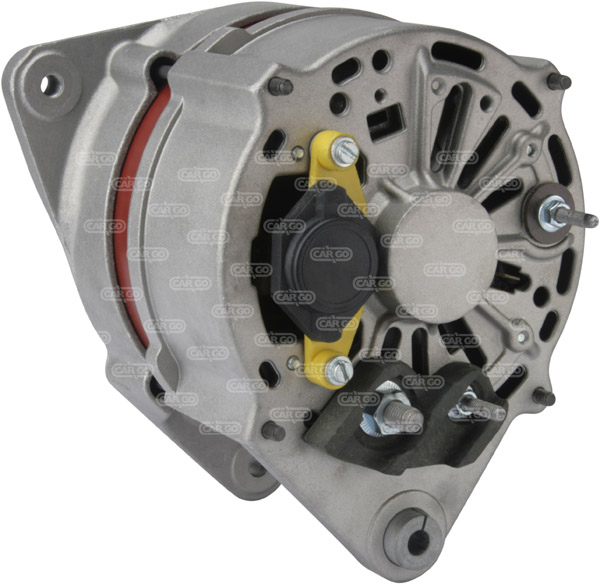

112730 - Alternator (112730)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 90, Terminal W,
Bracket Hole: 8.50, Belt. adj. bracket hole M8-1.25,
Width/Holder Arm: 14.00, Belt. adj. brackethole pos. 10,
Mount. Bracket Dist.: 81.00,
Pulley Dia.: 64.00,
Pulley Dist.: 35.75,
Grooves/Pulley: 2,
Radius: 92.00,
Radius: 93.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley DP,
Total Length: 180.50
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 90 | |||
| Terminal | W | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 8.50 | |||
| G | Belt. adj. bracket hole M8-1.25 | |||
| B | Width/holder arm 14.00 | |||
| E | Belt. adj. brackethole pos. 10 | |||
| C | Mount. bracket dist. 81.00 | |||
| H | Pulley dia. 64.00 | |||
| A | Pulley dist. 35.75 | |||
| i | Grooves/pulley 2 | |||
| j | Radius 92.00 | |||
| j | Radius 93.00 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
| R | Total length 180.50 | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | DP | |||
Replacing | ||||
| 0120469559 | BOSCH | |||
| 0120469566 | BOSCH | |||
| 0120469659 | BOSCH | |||
| 0120469660 | BOSCH | |||
| 0120469713 | BOSCH | |||
| 0120469754 | BOSCH | |||
| 0120469899 | BOSCH | |||
| 94460310900 | PORSCHE | |||
UNISTART Price: £184.08
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Porsche, Passenger cars US | 944 | 2.5 | Gasoline | 1983 01 | 1984 01 | 0 | 0 | 2475 | L4 | 944 | ||||
| Porsche, Passenger cars US | 944 | 2.5 | Gasoline | 1985 01 | 1986 01 | 0 | 0 | 2475 | L4 | 944 | ||||
| Porsche, Passenger cars US | 924 | 2.5 | Gasoline | 1987 01 | 1988 01 | 0 | 0 | 2475 | L4 | S | 924 |
