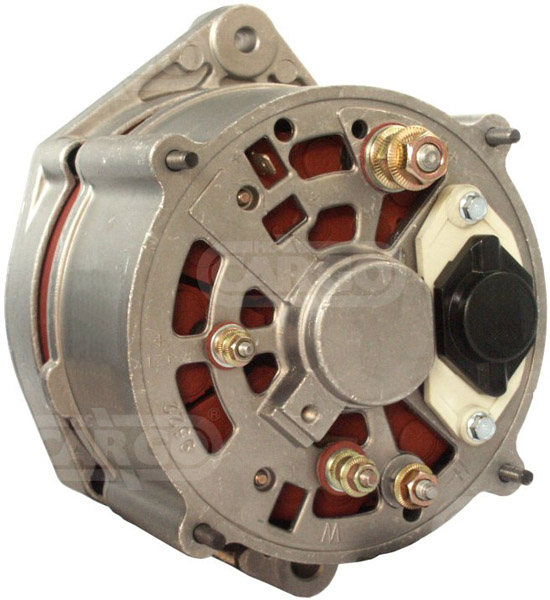

112742 - Alternator (112742)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 90, Terminal W,
Bracket Hole: 12.00, Belt. adj. bracket hole 8.00,
Width/Holder Arm: 51.00, Belt. adj. brackethole pos. 56,
Pulley Dia.: 70.30,
Pulley Dist.: 72.50,
Grooves/Pulley: 2,
Radius: 89.00,
Radius: 90.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: w/o, Pulley DP
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 90 | |||
| Terminal | W | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 12.00 | |||
| G | Belt. adj. bracket hole 8.00 | |||
| B | Width/holder arm 51.00 | |||
| E | Belt. adj. brackethole pos. 56 | |||
| H | Pulley dia. 70.30 | |||
| A | Pulley dist. 72.50 | |||
| i | Grooves/pulley 2 | |||
| j | Radius 89.00 | |||
| j | Radius 90.00 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
Further information (Alternator) | ||||
| Blower | w/o | |||
| Pulley | DP | |||
Replacing | ||||
| 0120469507 | BOSCH | |||
| 0120469522 | BOSCH | |||
| 0120469749 | BOSCH | |||
| 1509425 | VOLVO | |||
| 1578139 | VOLVO | |||
| 1578938 | VOLVO | |||
| 5001782 | VOLVO | |||
| 5001835 | VOLVO | |||
| 5003261 | VOLVO | |||
| 6779713 | VOLVO | |||
UNISTART Price: £222.78
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Volvo, Trucks EU | F Series | 9.6 | Diesel | 1983 01 | 1985 06 | 192 | 261 | 9600 | 6 | TD100G | Platform / Chassis | F 10/260 | ||
| Volvo, Trucks EU | F Series | 9.6 | Diesel | 1982 02 | 1985 06 | 192 | 261 | 9600 | 6 | TD100GA | Dump Truck | F 10/260 | ||
| Volvo, Trucks EU | F Series | 5.5 | Diesel | 1980 02 | 1986 02 | 113 | 154 | 5480 | 6 | TD60C | Platform / Chassis | F 611 | ||
| Volvo, Trucks EU | F Series | 6.7 | Diesel | 1978 08 | 1985 12 | 162 | 220 | 6700 | 6 | TD70F | Platform / Chassis | F 7 | ||
| Volvo, Trucks EU | F 80 Serie | 9.6 | Diesel | - | 1977 06 | 190 | 258 | 9600 | 6 | TD100A | Platform / Chassis | F 88/260 | ||
| Volvo, Trucks EU | F Series | 9.6 | Diesel | 1982 02 | 1985 06 | 192 | 261 | 9600 | 6 | TD100GA | Semi-Trailer | F 10/260 | ||
| Volvo, Trucks EU | F 80 Serie | 12 | Diesel | 1970 10 | 1977 06 | 243 | 330 | 12000 | 6 | TD120A | Platform / Chassis | F 89/330 | ||
| Volvo, Trucks EU | F Series | 9.6 | Diesel | 1982 02 | 1985 06 | 192 | 261 | 9600 | 6 | TD100G | Semi-Trailer | F 10/260 | ||
| Volvo, Trucks EU | F Series | 6.7 | Diesel | 1978 08 | 1985 12 | 162 | 220 | 6700 | 6 | TD70F | Semi-Trailer | F 7 | ||
| Volvo, Trucks EU | F Series | 3.6 | Diesel | 1978 04 | 1986 02 | 80 | 109 | 3590 | 6 | TD40A | Platform / Chassis | F 408 | ||
| Volvo, Trucks EU | F Series | 6.7 | Diesel | 1978 08 | 1985 12 | 162 | 220 | 6700 | 6 | TD70F | Dump Truck | F 7 | ||
| Volvo, Trucks EU | F Series | 3.9 | Diesel | 1975 09 | 1986 02 | 59 | 80 | 3860 | 4 | D39B | Platform / Chassis | F 406 | ||
| Volvo, Trucks EU | F Series | 5.5 | Diesel | 1978 12 | 1981 10 | 132 | 180 | 5480 | 6 | TD60B | Platform / Chassis | F 615 S | ||
| Volvo, Trucks EU | F Series | 9.6 | Diesel | 1982 02 | 1985 06 | 192 | 261 | 9600 | 6 | TD100G | Platform / Chassis | F 10/260 | ||
| Volvo, Trucks EU | F Series | 9.6 | Diesel | 1982 02 | 1985 06 | 192 | 261 | 9600 | 6 | TD100G | Dump Truck | F 10/260 | ||
| Volvo, Trucks EU | F 80 Serie | 12 | Diesel | 1970 10 | 1977 06 | 243 | 330 | 12000 | 6 | TD120A | Platform / Chassis | F 89 | ||
| Volvo, Trucks EU | F Series | 5.5 | Diesel | 1975 09 | 1986 02 | 128 | 174 | 5480 | 6 | TD60B | Platform / Chassis | F 613 | ||
| Volvo, Trucks EU | F Series | 5.5 | Diesel | 1978 12 | 1986 02 | 132 | 180 | 5480 | 6 | TD60B | Platform / Chassis | F 617 S | ||
| Valtra, Agricultural | 2000 Series | Diesel | 1985 01 | - | 0 | 0 | 0 | 2005 | ||||||
| Valtra, Agricultural | 2000 Series | Diesel | 1985 01 | - | 0 | 0 | 0 | 2105 | ||||||
| Volvo BM, Agricultural | 2600 | 5.5 | Diesel | 1979 05 | 1982 06 | 0 | 0 | 5480 | 6 | TD60B | 2650 | |||
| Volvo BM, Agricultural | 2600 | 5.5 | Diesel | 1979 05 | 1982 06 | 0 | 0 | 5480 | 6 | TD60B | 2654 |
