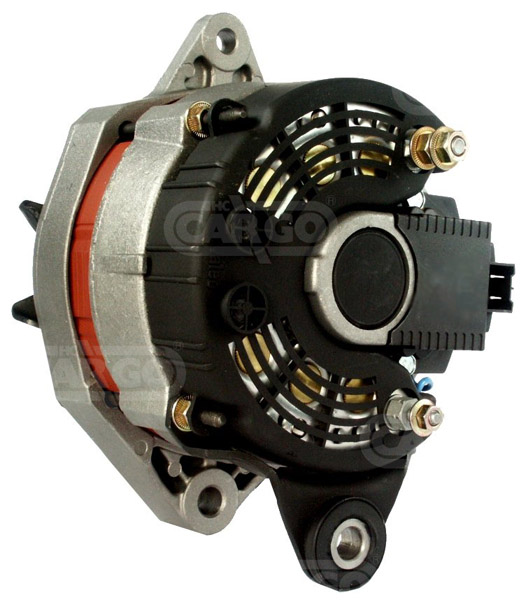

112744 - Alternator (112744)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 60,
Bracket Hole: 10.00, Belt. adj. bracket hole 8.00,
Width/Holder Arm: 27.00, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 66.00,
Pulley Dia.: 56.00,
Pulley Dist.: 45.00,
Grooves/Pulley: 5,
Radius: 83.50,
Radius: 84.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL27,
Blower: EF, Pulley SP,
Total Length: 162.50

Electrical specifications (Alternator)
Voltage 14
Amp 60

Physical specifications (Alternator)
D Bracket hole 10.00
G Belt. adj. bracket hole 8.00
B Width/holder arm 27.00
E Belt. adj. brackethole pos. 60
C Mount. bracket dist. 66.00
H Pulley dia. 56.00
A Pulley dist. 45.00
i Grooves/pulley 5
j Radius 83.50
j Radius 84.00
k B+ position M6
n Rotation CR
o Regulator plug PL27
R Total length 162.50

Further information (Alternator)
Blower EF
Pulley SP

Replacing
11.201.532 ISKRA
2541466 VALEO
516038 DUCELLIER
516067 DUCELLIER
7700721797 RENAULT
7700721977 RENAULT
7700729300 RENAULT
7700730363 RENAULT
7700751337 RENAULT
7701499230 RENAULT

UNISTART Price: £108.75

Sorry, this item is out of stock.

The 112744 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Renault, Passenger Car EU R19 1.7 Gasoline 1988 07 1992 04 66 90 1721 4 F3N742 R19
Renault, Passenger Car EU R21 1.7 Gasoline 1989 09 1994 06 66 90 1721 4 F3N723 Hatchback R21
Renault, Passenger Car EU R21 1.7 Gasoline 1989 10 1993 12 66 90 1721 4 F3N723 Estate R21
Renault, Passenger Car EU R9 1.7 Gasoline 1986 10 1988 12 55 75 2011 4 F2N730 R9
Renault, Passenger Car EU R11 1.7 Gasoline 1983 10 1987 12 59 80 1721 4 F2N704 Hatchback R11
Renault, Passenger Car EU R19 1.7 Gasoline 1992 04 1995 12 54 73 1721 4 F3N741 Hatchback R19
Renault, Passenger Car EU Trafic 1.7 Gasoline 1992 08 1994 08 50 68 1721 4 F1N720 Van Trafic
Renault, Passenger Car EU R9 1.7 Gasoline 1986 10 1988 12 65 88 1721 4 F2N798 R9
Renault, Passenger Car EU R9 1.7 Gasoline 1986 10 1988 12 65 88 1721 4 F2N710 R9
Renault, Passenger Car EU R11 1.7 Gasoline 1986 10 1988 12 65 88 1721 4 F2N710 Hatchback R11
Renault, Passenger Car EU R19 1.7 Gasoline 1988 09 1992 04 66 90 1721 4 F3N743 Hatchback R19
Renault, Passenger Car EU R19 1.7 Gasoline 1989 10 1992 04 54 73 1721 4 F3N741 R19
Renault, Passenger Car EU R19 1.7 Gasoline 1992 04 1995 12 54 73 1721 4 F3N740 R19
Renault, Passenger Car EU R19 1.7 Gasoline 1992 04 1993 09 66 90 1721 4 F3N742 Convertible R19
Renault, Passenger Car EU R19 1.7 Gasoline 1988 07 1992 04 66 90 1721 4 F3N743 R19
Renault, Passenger Car EU R21 1.7 Gasoline 1986 07 1994 02 54 73 1721 4 F2N750 R21
Renault, Passenger Car EU R21 1.7 Gasoline 1986 09 1994 02 66 90 1721 4 F3N722 R21
Renault, Passenger Car EU Trafic 1.7 Gasoline 1992 08 1994 08 50 68 1721 4 F1N724 Bus Trafic
Renault, Passenger Car EU R21 1.7 Gasoline 1987 06 1989 04 64 87 1721 4 F2N752 R21
Renault, Passenger Car EU R11 1.7 Gasoline 1987 06 1988 12 69 94 1721 4 F3N708 Hatchback R11
Renault, Passenger Car EU Trafic 1.7 Gasoline 1986 06 1989 04 50 68 1721 4 F1N724 Bus Trafic
Renault, Passenger Car EU Trafic 1.7 Gasoline 1989 05 1994 08 50 68 1721 4 F1N722 Platform / Chassis Trafic
Renault, Passenger Car EU R21 1.7 Gasoline 1989 09 1992 10 54 73 1721 4 F3N726 Hatchback R21
Renault, Passenger Car EU R21 1.7 Gasoline 1986 09 1994 02 66 90 1721 4 F3N723 R21
Renault, Passenger Car EU R21 1.7 Gasoline 1989 09 1994 06 66 90 1721 4 F3N722 Hatchback R21
Renault, Passenger Car EU R21 1.7 Gasoline 1988 05 1993 06 54 73 1721 4 F3N726 Estate R21
Renault, Passenger Car EU R21 1.7 Gasoline 1986 06 1989 12 69 94 1721 4 F3N723 Estate R21
Renault, Passenger Car EU R19 1.7 Gasoline 1988 09 1992 04 54 73 1721 4 F3N740 Hatchback R19
Renault, Passenger Car EU R19 1.7 Gasoline 1988 09 1992 04 66 90 1721 4 F3N742 Hatchback R19
Renault, Passenger Car EU R19 1.7 Gasoline 1992 04 1995 12 54 73 1721 4 F3N740 Hatchback R19
Renault, Passenger Car EU R11 1.7 Gasoline 1987 06 1988 12 64 87 1721 4 F2N732 Hatchback R11
Renault, Passenger Car EU R11 1.7 Gasoline 1986 10 1988 12 65 88 1721 4 F2N708 Hatchback R11
Renault, Passenger Car EU R9 1.7 Gasoline 1987 06 1988 12 69 94 1721 4 F3N708 R9
Renault, Passenger Car EU R9 1.7 Gasoline 1986 10 1988 12 65 88 1721 4 F2N708 R9
Renault, Passenger Car EU R9 1.7 Gasoline 1986 10 1988 12 54 73 1721 4 F3N718 R9
Renault, Passenger Car EU R9 1.7 Gasoline 1984 09 1989 12 59 80 1721 4 F2N700 TXE R9
Renault, Passenger Car EU R11 1.7 Gasoline 1986 10 1988 12 54 73 1721 4 F2N730 Hatchback R11
Renault, Passenger Car EU R11 1.7 Gasoline 1983 10 1987 12 59 80 1721 4 F2N700 Hatchback R11
Renault, Passenger Car EU R11 1.7 Gasoline 1987 06 1988 12 64 87 1721 4 F2N742 Hatchback R11
Renault, Passenger Car EU R19 1.7 Gasoline 1989 10 1992 04 54 73 1721 4 F3N740 R19
Renault, Passenger Car EU R19 1.7 Gasoline 1992 04 1995 12 54 73 1721 4 F3N741 R19
Renault, Passenger Car EU R21 1.7 Gasoline 1986 03 1987 12 55 75 1721 4 F2N712 R21
Renault, Passenger Car EU R21 1.7 Gasoline 1986 03 1994 02 69 94 1721 4 F3N722 R21
Renault, Passenger Car EU R21 1.7 Gasoline 1986 03 1993 03 65 88 1721 4 F2N710 R21
Renault, Passenger Car EU Trafic 1.7 Gasoline 1986 06 1989 04 50 68 1721 4 F1N722 Platform / Chassis Trafic
Renault, Passenger Car EU R9 1.7 Gasoline 1984 09 1989 12 59 80 1721 4 F2N704 TXE R9
Renault, Passenger Car EU R11 1.7 Gasoline 1984 10 1988 12 55 75 1721 4 F3N718 Hatchback R11
Renault, Passenger Car EU R11 1.7 Gasoline 1986 10 1988 12 65 88 1721 4 F2N798 Hatchback R11
Renault, Passenger Car EU R21 1.7 Gasoline 1986 06 1989 12 69 94 1721 4 F3N722 Estate R21
Renault, Passenger Car EU R21 1.7 Gasoline 1989 10 1993 12 66 90 1721 4 F3N722 Estate R21
Renault, Passenger Car EU R19 1.7 Gasoline 1988 09 1992 04 54 73 1721 4 F3N741 Hatchback R19
Renault, Passenger Car EU Trafic 1.7 Gasoline 1986 06 1989 04 50 68 1721 4 F1N724 Van Trafic
Renault, Passenger Car EU R21 1.7 Gasoline 1987 06 1989 04 64 87 1721 4 F2N752 Estate R21
Volvo, Passenger Car EU 340 1.7 Gasoline 1985 08 1991 07 59 80 1721 4 B172K Hatchback 340
Volvo, Passenger Car EU 340 1.7 Gasoline 1985 08 1991 07 59 80 1721 4 B172K 340
