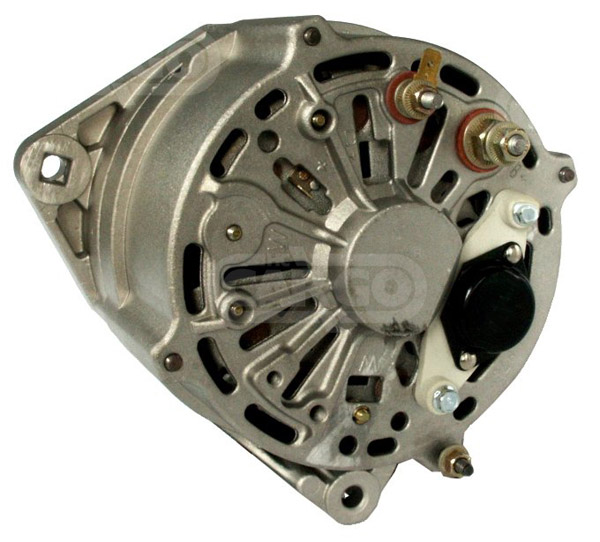

112746 - Alternator (112746)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 80,
Bracket Hole: 8.20, Belt. adj. bracket hole 8.20,
Width/Holder Arm: 71.00, Belt. adj. brackethole pos. 11,
Pulley Dia.: 64.25,
Pulley Dist.: 93.00,
Grooves/Pulley: 2,
Radius: 97.00,
Radius: 90.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley DP,
Total Length: 163.00

Electrical specifications (Alternator)
Voltage 14
Amp 80

Physical specifications (Alternator)
D Bracket hole 8.20
G Belt. adj. bracket hole 8.20
B Width/holder arm 71.00
E Belt. adj. brackethole pos. 11
H Pulley dia. 64.25
A Pulley dist. 93.00
i Grooves/pulley 2
j Radius 97.00
j Radius 90.00
k B+ position M6
n Rotation CR
o Regulator plug PL_NA
R Total length 163.00

Further information (Alternator)
Blower EF
Pulley DP

Replacing
0120469784 BOSCH
0120469785 BOSCH
0120469786 BOSCH
0120469787 BOSCH
0120469793 BOSCH
100211-8370 DENSO
100211-8371 DENSO
1363496 VOLVO
1363511 VOLVO
1398327 VOLVO

UNISTART Price: £172.46

Sorry, this item is out of stock.

The 112746 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Volvo, Passenger Car EU 240 2.3 Gasoline 1986 08 1987 07 83 113 2315 4 B230F 240
Volvo, Passenger Car EU 240 2.3 Gasoline 1986 08 1993 07 85 115 2316 4 B230K 240
Volvo, Passenger Car EU 240 2.3 Gasoline 1986 08 1993 07 85 115 2316 4 B230F Estate 240
Volvo, Passenger Car EU 740 2.3 Gasoline 1984 08 1990 07 84 114 2316 4 B230F 740
Volvo, Passenger Car EU 760 2.4 Diesel 1987 08 1992 07 85 115 2383 6 TD D24TIC Intercooler 760
Volvo, Passenger Car EU 360 2 Gasoline 1986 08 1988 07 82 112 1986 4 B200E Hatchback 360
Volvo, Passenger Car EU 360 2 Gasoline 1986 08 1988 07 82 112 1986 4 B200EA 360
Volvo, Passenger Car EU 740 2.3 Gasoline 1988 01 1990 10 87 118 2316 4 B230F Estate 740
Volvo, Passenger Car EU 740 2 Gasoline 1986 01 1990 08 118 160 1986 4 B200ET 740
Volvo, Passenger Car EU 940 2.4 Diesel 1990 08 1994 08 90 122 2383 6 TD D24TIC Estate Intercooler 940
Volvo, Passenger Car EU 940 2 Gasoline 1996 04 1998 10 114 155 1986 4 Turbo B200FT 940
Volvo, Passenger Car EU 240 2.3 Gasoline 1986 08 1987 07 83 113 2316 4 B230F Estate 240
Volvo, Passenger Car EU 340 2 Gasoline 1980 08 1983 07 70 95 1986 4 B200K Hatchback 340
Volvo, Passenger Car EU 740 2.3 Gasoline 1987 08 1992 07 85 115 2316 4 B230F Estate 740
Volvo, Passenger Car EU 360 2 Gasoline 1986 08 1988 07 82 112 1986 4 B200F Hatchback 360
Volvo, Passenger Car EU 940 2 Gasoline 1992 01 1994 07 82 112 1986 4 B200F Estate 940
Volvo, Passenger Car EU 760 2.4 Diesel 1987 08 1992 07 85 116 2383 6 TD D24TIC Estate Intercooler 760
Volvo, Passenger Car EU 360 2 Gasoline 1984 08 1987 07 77 105 1986 4 B200K 360
Volvo, Passenger Car EU 940 2.4 Diesel 1990 08 1994 12 60 82 2383 6 Diesel D24 940
Volvo, Passenger Car EU 240 2.3 Gasoline 1986 08 1988 12 85 115 2316 4 B230K 240
Volvo, Passenger Car EU 740 2.3 Gasoline 1984 08 1988 07 96 131 2316 4 B230E 740
Volvo, Passenger Car EU 940 2.4 Diesel 1990 08 1994 12 90 122 2383 6 TD D24TIC Intercooler 940
Volvo, Passenger Car EU 360 2 Gasoline 1987 08 1988 07 81 110 1986 4 B200EA 360
Volvo, Passenger Car EU 740 2.3 Gasoline 1986 08 1988 07 86 117 2316 4 B230K 740
Volvo, Passenger Car EU 740 2 Gasoline 1988 09 1990 08 76 103 1986 4 B200K Estate 740
Volvo, Passenger Car EU 740 2.4 Diesel 1986 08 1988 10 90 122 2383 6 TD D24TIC 740
Volvo, Passenger Car EU 240 2.3 Gasoline 1984 08 1988 12 98 133 2316 4 B23E Estate 240
Volvo, Passenger Car EU 740 2.3 Gasoline 1985 09 1990 07 84 114 2316 4 B230K Estate 740
Volvo, Passenger Car EU 740 2 Gasoline 1989 08 1991 07 82 112 1986 4 B200F Estate 740
Volvo, Passenger Car EU 360 2 Gasoline 1984 08 1990 07 75 102 1986 4 B200K 360
Volvo, Passenger Car EU 360 2 Gasoline 1988 08 1989 07 80 109 1986 4 B200F Hatchback 360
Volvo, Passenger Car EU 360 2 Gasoline 1987 08 1988 07 81 110 1986 4 B200F Hatchback 360
Volvo, Passenger Car EU 360 2 Gasoline 1988 08 1989 07 80 109 1986 4 B200F 360
Volvo, Passenger Car EU 940 2.4 Diesel 1990 08 1994 12 80 109 2383 6 TD D24T 940
Volvo, Passenger Car EU 940 2 Gasoline 1996 04 1998 10 114 155 1986 4 Turbo B200FT Estate 940
Volvo, Passenger Car EU 940 2.4 Diesel 1990 08 1995 07 60 82 2383 6 Diesel D24 Estate 940
Volvo, Passenger Car EU 940 2.4 Diesel 1990 08 1994 07 80 109 2383 6 TD D24T Estate 940
Volvo, Passenger Car EU 240 2.3 Gasoline 1984 08 1989 12 98 133 2316 4 B23E 240
Volvo, Passenger Car EU 240 2.3 Gasoline 1986 08 1993 07 85 115 2316 4 B230F 240
Volvo, Passenger Car EU 740 2.3 Gasoline 1985 09 1989 12 83 113 2315 4 B230F 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1984 08 1990 07 84 114 2316 4 B23A 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1987 08 1992 07 85 115 2316 4 B230F 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1985 08 1989 12 83 113 2315 4 B230F Estate 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1985 08 1988 07 96 131 2316 4 B230E Estate 740
Volvo, Passenger Car EU 940 2 Gasoline 1992 01 1994 07 82 112 1986 4 B200F 940
Volvo, Passenger Car EU 360 2 Gasoline 1984 08 1987 07 77 105 1986 4 B200K Hatchback 360
Volvo, Passenger Car EU 240 2.3 Gasoline 1986 08 1988 12 85 115 2316 4 B230K Estate 240
Volvo, Passenger cars US 240 2.3 Gasoline 1990 01 1990 01 0 0 2316 L4 B230F DL 240
Volvo, Passenger cars US 240 2.3 Gasoline 1991 01 1991 01 0 0 2316 L4 B230F SE 240
Volvo, Passenger cars US 760 2.3 Gasoline 1989 01 1990 01 0 0 2316 L4 Turbo B230FT 760
Volvo, Passenger cars US 740 2.3 Gasoline 1990 01 1992 01 0 0 2316 L4 B230F 740
Volvo, Passenger cars US 760 2.3 Gasoline 1988 01 1988 01 0 0 2316 L4 Turbo B230FT GLE 760
Volvo, Passenger cars US 240 2.3 Gasoline 1992 01 1992 01 0 0 2316 L4 B230F GL 240
Volvo, Passenger cars US 245 2.3 Gasoline 1986 01 1989 01 0 0 2316 L4 B230F DL 245
Volvo, Passenger cars US 244 2.3 Gasoline 1985 01 1989 01 0 0 2316 L4 B230F DL 244
Volvo, Passenger cars US 245 2.3 Gasoline 1985 01 1985 01 0 0 2316 L4 B230F 245
Volvo, Passenger cars US 740 2.3 Gasoline 1987 01 1988 01 0 0 2316 L4 B230F GLE 740
Volvo, Passenger cars US 240 2.3 Gasoline 1990 01 1993 01 0 0 2316 L4 B230F 240
Volvo, Passenger cars US 244 2.3 Gasoline 1985 01 1989 01 0 0 2316 L4 B230F GL 244
Volvo, Passenger cars US 245 2.3 Gasoline 1986 01 1989 01 0 0 2316 L4 B230F GL 245
Volvo, Passenger cars US 740 2.3 Gasoline 1989 01 1990 01 0 0 2316 L4 B230F GL 740
Volvo, Passenger cars US 740 2.3 Gasoline 1989 01 1989 01 0 0 2316 L4 B230F GLE 740
Volvo, Passenger cars US 940 2.3 Gasoline 1994 01 1995 01 0 0 2316 L4 B230FD 940
