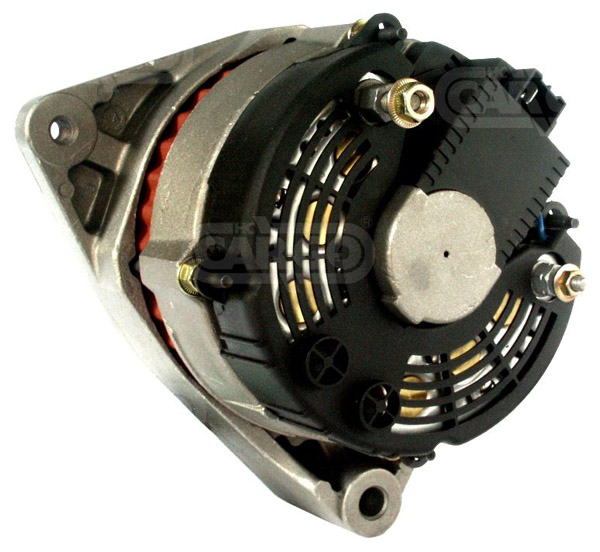

112754 - Alternator (112754)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 70,
Bracket Hole: 10.50, Belt. adj. bracket hole M8,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 10,
Pulley Dia.: 68.00,
Pulley Dist.: 95.00,
Grooves/Pulley: 1,
Radius: 89.00,
Radius: 90.50,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL26,
Blower: EF, Pulley P,
Total Length: 172.50
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 70 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.50 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 56.00 | |||
| E | Belt. adj. brackethole pos. 10 | |||
| H | Pulley dia. 68.00 | |||
| A | Pulley dist. 95.00 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 89.00 | |||
| j | Radius 90.50 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL26 | |||
| R | Total length 172.50 | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | P | |||
Replacing | ||||
| 11.201.679 | ISKRA | |||
| 2180675 | VALEO | |||
| 2541170 | VALEO | |||
| 2541364 | VALEO | |||
| 95632727 | PEUGEOT | |||
| a13n130 | VALEO | |||
| a13n176 | VALEO | |||
| a13n216 | VALEO | |||
| aak4542 | ISKRA | |||
UNISTART Price: £102.09
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Citroen, Passenger Car EU | AX | 1 | Gasoline | 1986 12 | 1988 12 | 30 | 41 | 954 | 4 | C3A | Hatchback | AX 10 | ||
| Citroen, Passenger Car EU | AX | 1.4 | Diesel | 1991 08 | 1997 12 | 37 | 50 | 1360 | 4 | Diesel | K9Y (TUD3Y) | Hatchback | AX 14 | |
| Citroen, Passenger Car EU | AX | 1.1 | Gasoline | 1986 09 | 1997 12 | 44 | 60 | 1124 | 4 | H1B | Hatchback | AX 11 | ||
| Citroen, Passenger Car EU | AX | 1.1 | Gasoline | 1986 09 | 1997 12 | 44 | 60 | 1124 | 4 | HDZ (TU1M) | Hatchback | AX 11 | ||
| Citroen, Passenger Car EU | C15 | 1.4 | Gasoline | 1991 05 | 1996 12 | 55 | 75 | 1360 | 4 | i.e. | KDY (TU3FM) | Van | C15 | |
| Citroen, Passenger Car EU | AX | 1.4 | Gasoline | 1991 08 | 1996 12 | 55 | 75 | 1360 | 4 | KDZ (TU3M/Z) | Hatchback | 4x4 | AX 14 | |
| Citroen, Passenger Car EU | AX | 1.1 | Gasoline | 1988 09 | 1989 12 | 40 | 54 | 1124 | 4 | HAZ (TU1CP) | Hatchback | AX 11 | ||
| Citroen, Passenger Car EU | AX | 1.4 | Gasoline | 1991 06 | 1996 12 | 69 | 94 | 1360 | 4 | i | KFZ (TU3FJ2) | Hatchback | AX 14 | |
| Citroen, Passenger Car EU | AX | 1.4 | Gasoline | 1991 06 | 1992 12 | 74 | 100 | 1360 | 4 | GTi | KFZ (TU3FJ2) | Hatchback | AX 14 | |
| Citroen, Passenger Car EU | AX | 1 | Gasoline | 1986 09 | 1992 06 | 32 | 44 | 954 | 4 | C1A | Hatchback | AX | ||
| Citroen, Passenger Car EU | AX | 1 | Gasoline | 1986 07 | 1998 12 | 33 | 45 | 954 | 4 | CDY (TU9M) | Hatchback | AX 10 | ||
| Citroen, Passenger Car EU | AX | 1.4 | Gasoline | 1988 01 | 1992 12 | 62 | 85 | 1360 | 4 | K2A | Hatchback | AX 14 | ||
| Citroen, Passenger Car EU | AX | 1.4 | Diesel | 1988 09 | 1992 06 | 38 | 52 | 1360 | 4 | Diesel | K9A (TUD3) | Hatchback | AX 14 | |
| Citroen, Passenger Car EU | AX | 1.4 | Gasoline | 1987 04 | 1997 04 | 55 | 75 | 1360 | 4 | KDZ (TU3M/Z) | Hatchback | AX 14 | ||
| Citroen, Passenger Car EU | AX | 1.4 | Gasoline | 1991 08 | 1996 12 | 55 | 75 | 1360 | 4 | KDX (TU3M/Z) | Hatchback | 4x4 | AX 14 | |
| Citroen, Passenger Car EU | AX | 1 | Gasoline | 1987 02 | 1998 12 | 37 | 50 | 954 | 4 | CDZ (TU9M) | Hatchback | AX 10 | ||
| Citroen, Passenger Car EU | C15 | 1.4 | Gasoline | 1987 07 | 1996 12 | 40 | 55 | 1360 | 4 | i | K3A | Van | C15 | |
| Citroen, Passenger Car EU | AX | 1.4 | Gasoline | 1988 06 | 1989 12 | 49 | 67 | 1360 | 4 | K1F (TU3A) | Hatchback | AX 14 | ||
| Citroen, Passenger Car EU | C15 | 1.4 | Gasoline | 1987 07 | 1996 12 | 49 | 67 | 1360 | 4 | K1H (TU3A) | Van | C15 | ||
| Citroen, Passenger Car EU | C15 | 1.1 | Gasoline | 1988 07 | 1996 12 | 44 | 60 | 1124 | 4 | i.e. | HDZ (TU1M) | Van | C15 | |
| Citroen, Passenger Car EU | AX | 1.4 | Gasoline | 1991 08 | 1996 12 | 66 | 90 | 1360 | 4 | i | KFY (TU3FJ2) | Hatchback | AX 14 | |
| Citroen, Passenger Car EU | BX | 1.4 | Gasoline | 1986 01 | 1993 02 | 53 | 72 | 1360 | 4 | 150C | Estate | BX 14 | ||
| Citroen, Passenger Car EU | BX | 1.4 | Gasoline | 1989 01 | 1993 02 | 55 | 75 | 1360 | 4 | KDY (TU3M) | Estate | BX 14 | ||
| Citroen, Passenger Car EU | AX | 1.1 | Gasoline | 1986 12 | 1994 04 | 40 | 54 | 1124 | 4 | H1B | Hatchback | AX 11 | ||
| Citroen, Passenger Car EU | AX | 1.3 | Gasoline | 1987 04 | 1988 12 | 70 | 95 | 1294 | 4 | M4A | Hatchback | Sport | AX 13 | |
| Citroen, Passenger Car EU | AX | 1.4 | Gasoline | 1986 12 | 1988 12 | 44 | 60 | 1360 | 4 | KAY (TU3CP) | Hatchback | AX 14 | ||
| Citroen, Passenger Car EU | AX | 1.4 | Gasoline | 1987 04 | 1997 04 | 55 | 75 | 1360 | 4 | KDY (TU3FM) | Hatchback | AX 14 | ||
| Citroen, Passenger Car EU | AX | 1.4 | Gasoline | 1987 04 | 1997 04 | 55 | 75 | 1360 | 4 | KDY (TU3M) | Hatchback | AX 14 | ||
| Citroen, Passenger Car EU | BX | 1.4 | Gasoline | 1985 09 | 1993 02 | 49 | 67 | 1360 | 4 | 150F | Hatchback | BX 14 | ||
| Citroen, Passenger Car EU | BX | 1.4 | Gasoline | 1983 04 | 1993 02 | 53 | 72 | 1360 | 4 | 150C | Hatchback | BX 14 | ||
| Citroen, Passenger Car EU | AX | 1.4 | Gasoline | 1988 01 | 1992 12 | 62 | 84 | 1360 | 4 | K2B | Hatchback | AX 14 | ||
| Citroen, Passenger Car EU | AX | 1.4 | Gasoline | 1987 04 | 1997 04 | 55 | 75 | 1360 | 4 | KDX (TU3M/Z) | Hatchback | AX 14 | ||
| Citroen, Passenger Car EU | BX | 1.4 | Gasoline | 1989 01 | 1993 02 | 55 | 75 | 1360 | 4 | KDZ (TU3M/Z) | Hatchback | BX 14 | ||
| Citroen, Passenger Car EU | C15 | 1.4 | Gasoline | 1991 05 | 1996 12 | 55 | 75 | 1360 | 4 | i.e. | KDY (TU3M) | Van | C15 | |
| Citroen, Passenger Car EU | AX | 1.4 | Gasoline | 1991 08 | 1996 12 | 55 | 75 | 1360 | 4 | KDY (TU3FM) | Hatchback | 4x4 | AX 14 | |
| Citroen, Passenger Car EU | AX | 1.4 | Gasoline | 1991 08 | 1996 12 | 55 | 75 | 1360 | 4 | KDY (TU3M) | Hatchback | 4x4 | AX 14 | |
| Citroen, Passenger Car EU | BX | 1.4 | Gasoline | 1989 01 | 1989 12 | 47 | 64 | 1360 | 4 | K1H (TU3A) | Hatchback | BX 14 | ||
| Citroen, Passenger Car EU | C15 | 1.4 | Gasoline | 1987 05 | 1996 07 | 55 | 75 | 1360 | 4 | Estate | C15 | |||
| Citroen, Passenger Car EU | AX | 1.1 | Gasoline | 1991 06 | 1992 07 | 40 | 54 | 1124 | 4 | H1A (TU1) | Hatchback | 4x4 | AX 11 | |
| Peugeot, Passenger Car EU | 205 | 1.4 | Gasoline | 1987 10 | 1990 10 | 49 | 67 | 1360 | 4 | K1D (TU3A) | Hatchback | 205 | ||
| Peugeot, Passenger Car EU | 205 | 1.1 | Gasoline | 1989 10 | 1994 12 | 44 | 60 | 1124 | 4 | HDZ (TU1M) | Convertible | CJ | 205 | |
| Peugeot, Passenger Car EU | 205 | 1.1 | Gasoline | 1989 07 | 1998 09 | 44 | 60 | 1124 | 4 | HDZ (TU1M) | Hatchback | 205 | ||
| Peugeot, Passenger Car EU | 205 | 1.4 | Gasoline | 1988 07 | 1998 09 | 55 | 75 | 1361 | 4 | KDZ (TU3M) | Hatchback | 205 | ||
| Peugeot, Passenger Car EU | 205 | 1.4 | Gasoline | 1988 07 | 1998 09 | 55 | 75 | 1361 | 4 | KDY (TU3M) | Hatchback | 205 | ||
| Peugeot, Passenger Car EU | 205 | 1.4 | Gasoline | 1991 05 | 1994 12 | 55 | 75 | 1361 | 4 | KDZ (TU3M) | Convertible | CJ | 205 | |
| Peugeot, Passenger Car EU | 309 | 1.4 | Gasoline | 1989 03 | 1989 07 | 55 | 75 | 1360 | 4 | KDY (TU3M) | Hatchback | 309 | ||
| Peugeot, Passenger Car EU | 309 | 1.4 | Gasoline | 1989 07 | 1993 12 | 55 | 75 | 1361 | 4 | KDZ (TU3M) | Hatchback | 309 | ||
| Peugeot, Passenger Car EU | 405 | 1.4 | Gasoline | 1987 01 | 1992 07 | 47 | 64 | 1360 | 4 | K5A (TU3) | 405 | |||
| Peugeot, Passenger Car EU | 205 | 1.4 | Gasoline | 1987 08 | 1993 09 | 44 | 60 | 1360 | 4 | KAY (TU3CP) | Hatchback | 205 | ||
| Peugeot, Passenger Car EU | 205 | 1.4 | Gasoline | 1991 05 | 1994 12 | 55 | 75 | 1361 | 4 | KDY (TU3M) | Convertible | CJ | 205 | |
| Peugeot, Passenger Car EU | 309 | 1.4 | Gasoline | 1989 03 | 1989 07 | 49 | 67 | 1360 | 4 | K1D (TU3A) | Hatchback | 309 | ||
| Peugeot, Passenger Car EU | 205 | 1.4 | Gasoline | 1990 08 | 1998 07 | 55 | 75 | 1360 | 4 | KDX (TU3MC) | Hatchback | 205 | ||
| Peugeot, Passenger Car EU | 309 | 1.4 | Gasoline | 1989 03 | 1989 07 | 55 | 75 | 1360 | 4 | KDZ (TU3M) | Hatchback | 309 | ||
| Peugeot, Passenger Car EU | 205 | 1.4 | Gasoline | 1989 01 | 1993 09 | 44 | 60 | 1361 | 4 | KAY (TU3CP) | Convertible | 205 | ||
| Peugeot, Passenger Car EU | 309 | 1.4 | Gasoline | 1990 07 | 1993 12 | 49 | 67 | 1361 | 4 | K1D (TU3A) | Hatchback | 309 | ||
| Peugeot, Passenger Car EU | 205 | 1.1 | Gasoline | 1987 10 | 1990 10 | 40 | 54 | 1124 | 4 | H1B (TU1) | Hatchback | 205 | ||
| Peugeot, Passenger Car EU | 205 | 1.4 | Gasoline | 1989 03 | 1994 12 | 49 | 67 | 1360 | 4 | K1D (TU3A) | Convertible | CJ | 205 | |
| Peugeot, Passenger Car EU | 205 | 1.4 | Gasoline | 1987 06 | 1989 12 | 62 | 84 | 1360 | 4 | K2B (TU3S) | Hatchback | 205 | ||
| Peugeot, Passenger Car EU | 309 | 1.4 | Gasoline | 1989 07 | 1993 12 | 55 | 75 | 1361 | 4 | KDY (TU3M) | Hatchback | 309 | ||
| Peugeot, Passenger Car EU | 205 | 1 | Gasoline | 1987 10 | 1998 09 | 33 | 45 | 954 | 4 | TU9 | Hatchback | 205 | ||
| Peugeot, Passenger Car EU | 309 | 1.4 | Gasoline | 1989 03 | 1989 07 | 62 | 84 | 1360 | 4 | K2B (TU3S) | Hatchback | 309 | ||
| Peugeot, Passenger Car EU | 405 | 1.4 | Gasoline | 1988 05 | 1992 07 | 47 | 64 | 1360 | 4 | K5A (TU3) | Estate | 405 | ||
| Citroen, Passenger cars AO | AX | 1.4 | Gasoline | 1986 09 | 1992 07 | 62 | 84 | 1360 | 4 | K2A | Hatchback | 4x4 | AX | |
| Peugeot, Passenger cars AO | 309 | 1.1 | Gasoline | 1989 09 | 1993 10 | 40 | 54 | 1124 | 4 | H1B (TU1) | Hatchback | 309 |
