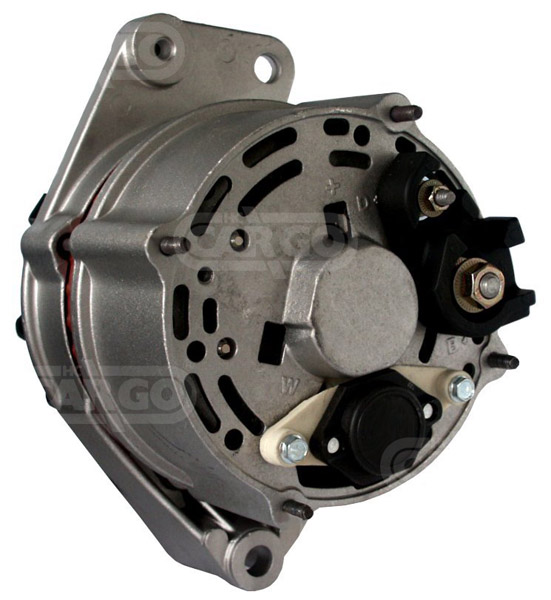

112763 - Alternator (112763)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 55,
Bracket Hole: 10.20, Belt. adj. bracket hole 7.00,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 3,
Pulley Dia.: 68.50,
Pulley Dist.: 78.50,
Grooves/Pulley: 1,
Radius: 90.00,
Radius: 90.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley P,
Total Length: 167.00

Electrical specifications (Alternator)
Voltage 14
Amp 55

Physical specifications (Alternator)
D Bracket hole 10.20
G Belt. adj. bracket hole 7.00
B Width/holder arm 56.00
E Belt. adj. brackethole pos. 3
H Pulley dia. 68.50
A Pulley dist. 78.50
i Grooves/pulley 1
j Radius 90.00
j Radius 90.00
k B+ position M8
n Rotation CR
o Regulator plug PL_NA
R Total length 167.00

Further information (Alternator)
Blower EF
Pulley P

Replacing
0120488197 BOSCH
0120488239 BOSCH
0120488265 BOSCH
0120489005 BOSCH
0120489382 BOSCH
0120489383 BOSCH
036903017h VOLKSWAGEN
036903017HX VOLKSWAGEN
036903025 VOLKSWAGEN
036903025b VOLKSWAGEN

UNISTART Price: £81.06

Sorry, this item is out of stock.

The 112763 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
VW, Passenger Car EU Polo 1 Gasoline 1989 08 1994 09 33 45 1043 4 AAK Coupe Polo
VW, Passenger Car EU Polo 1.3 Gasoline 1987 07 1994 08 40 55 1272 4 2G Coupe Polo
VW, Passenger Car EU Polo 1.3 Gasoline 1987 07 1994 08 40 55 1272 4 NZ Coupe Polo
VW, Passenger Car EU Polo 1.3 Gasoline 1987 07 1994 09 40 55 1272 4 NZ Hatchback Polo
VW, Passenger Car EU Polo 1.3 Gasoline 1987 07 1994 09 40 55 1272 4 AAV Hatchback Polo
VW, Passenger Car EU Golf 1.3 Gasoline 1983 08 1987 06 40 55 1272 4 MH Hatchback Golf II
VW, Passenger Car EU Jetta 1.3 Gasoline 1984 01 1987 06 40 55 1272 4 MH Jetta
VW, Passenger Car EU Golf 1.3 Gasoline 1983 08 1986 10 44 60 1272 4 GT Hatchback Golf II
VW, Passenger Car EU Polo 1.3 Gasoline 1991 03 1994 09 57 78 1272 4 3F Coupe Polo
VW, Passenger Car EU Polo 1 Gasoline 1989 08 1994 09 33 45 1043 4 AAU Coupe Polo
VW, Passenger Car EU Polo 1.3 Gasoline 1987 07 1994 08 40 55 1272 4 AAV Coupe Polo
VW, Passenger Car EU Polo 1 Gasoline 1989 08 1994 09 33 45 1043 4 AAU Hatchback Polo
VW, Passenger Car EU Polo 1.3 Gasoline 1989 10 1991 03 55 75 1272 4 3F Hatchback Polo
VW, Passenger Car EU Polo 1 Gasoline 1985 01 1994 09 33 45 1043 4 HZ Polo
VW, Passenger Car EU Polo 1 Gasoline 1985 08 1992 01 33 45 1043 4 HZ Coupe Polo
VW, Passenger Car EU Jetta 1.3 Gasoline 1987 06 1991 12 55 54 1272 4 2G Jetta
VW, Passenger Car EU Polo 1.3 Gasoline 1982 09 1989 09 55 75 1272 4 GK Coupe Polo
VW, Passenger Car EU Polo 1.3 Gasoline 1993 04 2004 07 40 54 1272 4 AAV Van Polo
VW, Passenger Car EU Polo 1.3 Diesel 1986 08 1990 08 33 45 1272 4 Diesel MN Coupe Polo
VW, Passenger Car EU Polo 1 Gasoline 1989 08 1994 09 33 45 1043 4 ACM Coupe Polo
VW, Passenger Car EU Polo 1.3 Gasoline 1989 10 1994 09 55 75 1272 4 3F Coupe Polo
VW, Passenger Car EU Polo 1.3 Diesel 1986 08 1988 12 33 45 1272 4 Diesel MN Polo
VW, Passenger Car EU Polo 1.3 Gasoline 1987 07 1994 09 40 55 1272 4 MH Polo
VW, Passenger Car EU Polo 1.3 Gasoline 1987 07 1994 09 40 55 1272 4 NZ Polo
VW, Passenger Car EU Golf 1 Gasoline 1985 08 1991 10 37 50 1043 4 HZ Hatchback Golf II
VW, Passenger Car EU Jetta 1.3 Gasoline 1987 06 1991 12 55 54 1272 4 NZ Jetta
VW, Passenger Car EU Golf 1.3 Gasoline 1986 06 1992 12 40 55 1272 4 NZ Hatchback Golf II
VW, Passenger Car EU Golf 1.3 Gasoline 1986 06 1992 12 40 55 1272 4 2G Hatchback Golf II
VW, Passenger Car EU Polo 1 Gasoline 1993 04 2004 07 33 45 1043 4 AAU Van Polo
VW, Passenger Car EU Polo 1.3 Diesel 1986 08 1990 07 33 45 1272 4 Diesel MN Hatchback Polo
VW, Passenger Car EU Polo 1 Gasoline 1989 08 1994 09 33 45 1043 4 ACM Hatchback Polo
VW, Passenger Car EU Jetta 1.3 Gasoline 1984 01 1986 10 44 60 1272 4 GT Jetta
VW, Passenger Car EU Polo 1.3 Gasoline 1987 07 1994 09 40 55 1272 4 2G Hatchback Polo
VW, Passenger Car EU Polo 1 Gasoline 1989 08 1994 09 33 45 1043 4 AAK Hatchback Polo
VW, Passenger Car EU Golf 1.3 Gasoline 1985 08 1987 12 37 50 1272 4 NU Hatchback Golf II
VW, Passenger Car EU Golf 1.3 Gasoline 1986 06 1992 12 40 55 1272 4 MH Hatchback Golf II
VW, Passenger Car EU Polo 1 Gasoline 1985 08 1992 01 33 45 1043 4 HZ Hatchback Polo
VW, Passenger Car EU Polo 1.3 Gasoline 1982 09 1989 09 55 75 1272 4 GK Hatchback Polo
Seat, Passenger Car EU Ibiza 1 Gasoline 1993 03 1996 09 33 45 1043 4 AAU Hatchback Ibiza
Seat, Passenger Car EU Ibiza 1.3 Gasoline 1993 03 1999 08 40 54 1272 4 i AAV Hatchback Ibiza
Seat, Passenger Car EU Terra 1.4 Diesel 1990 10 1995 12 35 48 1398 4 Diesel 1W Estate Terra
