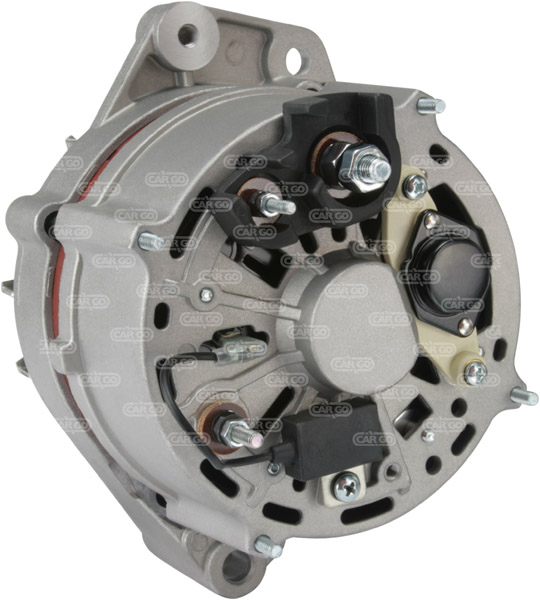

112765 - Alternator (112765)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 90, Terminal W,
Bracket Hole: 10.30, Belt. adj. bracket hole M8-1.25,
Width/Holder Arm: 55.80, Belt. adj. brackethole pos. 2,
Pulley Dia.: 73.00,
Pulley Dist.: 100.00,
Grooves/Pulley: 1,
Radius: 90.00,
Radius: 87.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley P,
Total Length: 185.00

Electrical specifications (Alternator)
Voltage 14
Amp 90
Terminal W

Physical specifications (Alternator)
D Bracket hole 10.30
G Belt. adj. bracket hole M8-1.25
B Width/holder arm 55.80
E Belt. adj. brackethole pos. 2
H Pulley dia. 73.00
A Pulley dist. 100.00
i Grooves/pulley 1
j Radius 90.00
j Radius 87.00
k B+ position M8
n Rotation CR
o Regulator plug PL_NA
R Total length 185.00

Further information (Alternator)
Blower EF
Pulley P

Replacing
0120469021 BOSCH
0120469722 BOSCH
0120469723 BOSCH
068903017q VOLKSWAGEN
068903017QX VOLKSWAGEN
068903029k VOLKSWAGEN
068903031RX VOLKSWAGEN
074903025a VOLKSWAGEN
b120500330 BOSCH
b120500331 BOSCH

UNISTART Price: £107.14

Sorry, this item is out of stock.

The 112765 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
VW, Passenger Car EU Transporter 1.6 Diesel 1984 10 1992 07 51 70 1589 4 TD JX Platform / Chassis T3 Transporter
VW, Passenger Car EU Transporter 2.4 Diesel 1990 09 2003 04 57 78 2370 5 Diesel AAB Bus T4 Transporter
VW, Passenger Car EU Passat 1.9 Diesel 1989 05 1993 10 50 68 1896 4 Diesel 1Y Estate Passat
VW, Passenger Car EU Passat 1.6 Diesel 1988 08 1993 09 59 80 1588 4 TD SB Passat
VW, Passenger Car EU Transporter 2.4 Diesel 1992 10 1998 09 57 78 2370 5 Diesel AAB Bus T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.4 Diesel 1990 07 1998 04 57 78 2370 5 Diesel AAB Van T4 Transporter
VW, Passenger Car EU Transporter 1.6 Diesel 1981 01 1987 07 37 50 1588 4 Diesel CS Van T3 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1990 11 2004 03 81 110 2461 5 AAF Platform / Chassis T4 Transporter
VW, Passenger Car EU Transporter 1.6 Diesel 1981 01 1987 07 37 50 1588 4 Diesel CS Bus T3 Transporter
VW, Passenger Car EU Passat 1.6 Diesel 1986 05 1988 03 59 80 1588 4 RA Hatchback Passat
VW, Passenger Car EU Transporter 2.4 Diesel 1990 09 1998 04 57 78 2370 5 Diesel AAB Platform / Chassis T4 Transporter
VW, Passenger Car EU Passat 1.6 Diesel 1988 08 1993 09 59 80 1588 4 TD RA Passat
VW, Passenger Car EU Transporter 2.5 Gasoline 1990 11 2003 04 81 110 2461 5 AAF Bus T4 Transporter
VW, Passenger Car EU Transporter 1.7 Diesel 1989 07 1992 07 42 57 1716 4 Diesel KY Platform / Chassis T3 Transporter
VW, Passenger Car EU Transporter 1.6 Diesel 1986 03 1992 07 51 70 1589 4 TD JX Bus T3 Syncro Transporter
VW, Passenger Car EU Transporter 1.7 Diesel 1989 07 1992 07 42 57 1716 4 Diesel KY Van T3 Transporter
VW, Passenger Car EU Transporter 1.6 Diesel 1986 03 1992 07 51 69 1589 4 TD JX Van T3 Syncro Transporter
VW, Passenger Car EU Transporter 2.4 Diesel 1992 10 1998 09 57 78 2370 5 Diesel AAB Van T4 Syncro Transporter
VW, Passenger Car EU Transporter 1.6 Diesel 1986 03 1992 07 51 69 1589 4 TD JX Platform / Chassis T3 Syncro Transporter
VW, Passenger Car EU Transporter 1.6 Diesel 1984 08 1992 07 51 70 1589 4 TD JX Bus T3 Transporter
VW, Passenger Car EU Transporter 1.7 Diesel 1986 10 1992 07 42 57 1716 4 Diesel KY Bus T3 Transporter
VW, Passenger Car EU Transporter 1.6 Diesel 1981 01 1987 07 37 50 1588 4 Diesel CS Platform / Chassis T3 Transporter
VW, Passenger Car EU Passat 1.9 Diesel 1989 05 1993 10 50 68 1896 4 Diesel 1Y Passat
VW, Passenger Car EU Passat 1.6 Diesel 1988 08 1993 09 59 80 1588 4 TD RA Estate Passat
VW, Passenger Car EU Passat 1.6 Diesel 1988 08 1993 09 59 80 1588 4 TD SB Estate Passat
VW, Passenger Car EU Transporter 1.6 Diesel 1984 10 1992 07 51 69 1589 4 TD JX Van T3 Transporter
VW, Passenger Car EU Transporter 2.4 Diesel 1992 10 1998 09 57 78 2370 5 Diesel AAB Platform / Chassis T4 Syncro Transporter
VW, Passenger Car EU Transporter 1.9 Diesel 1990 09 1995 12 45 61 1896 4 Diesel 1X Bus Transporter IV
VW, Passenger cars US Eurovan 2.4 Diesel 1993 01 1996 01 0 0 2390 L5 AAB Eurovan
VW, Passenger cars US Eurovan 2.4 Diesel 1993 01 - 0 0 2390 L5 AAB CL Eurovan
VW, Passenger Car EU Transporter 1.6 Diesel 1986 03 1992 07 51 70 1589 4 TD JX Bus T3 Syncro Transporter
VW, Passenger Car EU Transporter 1.6 Diesel 1986 03 1992 07 51 69 1589 4 TD JX Van T3 Syncro Transporter
VW, Passenger Car EU Transporter 1.6 Diesel 1986 03 1992 07 51 69 1589 4 TD JX Platform / Chassis T3 Syncro Transporter
VW, Passenger Car EU Transporter 1.7 Diesel 1986 10 1992 07 42 57 1716 4 Diesel KY Bus T3 Transporter
VW, Passenger Car EU Transporter 1.9 Diesel 1990 09 1995 12 45 61 1896 4 Diesel 1X Bus Transporter IV
