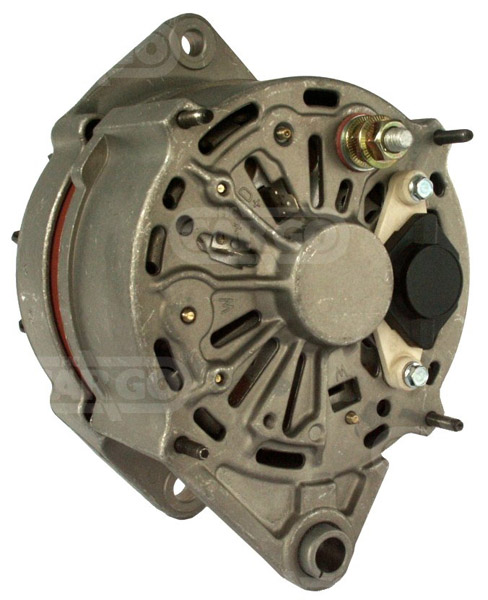

112771 - Alternator (112771)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 90,
Bracket Hole: 12.20, Belt. adj. bracket hole 10.20,
Width/Holder Arm: 14.30, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 82.00,
Pulley Dia.: 62.50,
Pulley Dist.: 39.50,
Grooves/Pulley: 5,
Radius: 92.00,
Radius: 92.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley SP,
Total Length: 180.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 90 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 12.20 | |||
| G | Belt. adj. bracket hole 10.20 | |||
| B | Width/holder arm 14.30 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| C | Mount. bracket dist. 82.00 | |||
| H | Pulley dia. 62.50 | |||
| A | Pulley dist. 39.50 | |||
| i | Grooves/pulley 5 | |||
| j | Radius 92.00 | |||
| j | Radius 92.00 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
| R | Total length 180.00 | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | SP | |||
Replacing | ||||
| 0120469858 | BOSCH | |||
| 0120469859 | BOSCH | |||
| 0120469938 | BOSCH | |||
| 0120469939 | BOSCH | |||
| 46431712 | FIAT | |||
| 60808791 | ALFA ROMEO | |||
| 60811651 | ALFA ROMEO | |||
| 7631385 | FIAT | |||
| 7699408 | FIAT | |||
| md011500 | MITSUBISHI | |||
UNISTART Price: £164.79
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fiat, Passenger Car EU | Tipo | 1.9 | Diesel | 1990 09 | 1995 04 | 66 | 90 | 1929 | 4 | TD | 160D1.000 | Hatchback | Tipo | |
| Fiat, Passenger Car EU | Tipo | 1.9 | Diesel | 1990 09 | 1995 04 | 66 | 90 | 1929 | 4 | TD | 160A6.000 | Hatchback | Tipo | |
| Fiat, Passenger Car EU | Tempra | 1.9 | Diesel | 1991 07 | 1995 02 | 66 | 90 | 1929 | 4 | TD | 160D1.000 | Estate | Tempra | |
| Fiat, Passenger Car EU | Tipo | 1.7 | Diesel | 1988 01 | 1994 10 | 43 | 58 | 1697 | 4 | Diesel | 149B4.000 | Hatchback | Tipo | |
| Fiat, Passenger Car EU | Tipo | 1.9 | Diesel | 1992 03 | 1993 06 | 59 | 80 | 1929 | 4 | TD | 160B6.046 | Hatchback | Tipo | |
| Fiat, Passenger Car EU | Tipo | 1.9 | Diesel | 1990 09 | 1995 04 | 66 | 90 | 1929 | 4 | TD | 160A6.046 | Hatchback | Tipo | |
| Fiat, Passenger Car EU | Tempra | 1.9 | Diesel | 1991 07 | 1995 02 | 66 | 90 | 1929 | 4 | TD | 160A6.000 | Estate | Tempra | |
| Fiat, Passenger Car EU | Tempra | 1.9 | Diesel | 1991 07 | 1996 08 | 48 | 65 | 1929 | 4 | Diesel | 160A7.000 | Tempra | ||
| Fiat, Passenger Car EU | Tempra | 1.9 | Diesel | 1991 07 | 1996 08 | 48 | 65 | 1929 | 4 | TD | 160A7.000 | Estate | Tempra | |
| Fiat, Passenger Car EU | Tipo | 1.7 | Diesel | 1988 01 | 1995 10 | 45 | 61 | 1697 | 4 | Diesel | 149B4.000 | Hatchback | Tipo | |
| Fiat, Passenger Car EU | Tempra | 1.9 | Diesel | 1992 07 | 1996 08 | 59 | 80 | 1929 | 4 | TD | 160B6.046 | Tempra | ||
| Fiat, Passenger Car EU | Tempra | 1.9 | Diesel | 1990 05 | 1996 08 | 66 | 90 | 1929 | 4 | TD | 160A6.000 | Tempra | ||
| Fiat, Passenger Car EU | Tempra | 1.9 | Diesel | 1990 05 | 1996 08 | 66 | 90 | 1929 | 4 | TD | 160D1.000 | Tempra | ||
| Fiat, Passenger Car EU | Marengo | 1.9 | Diesel | 1990 02 | 1996 12 | 48 | 65 | 1930 | 4 | Diesel | 160A7.000 | Estate | Marengo | |
| Fiat, Passenger Car EU | Croma | 1.9 | Diesel | 1989 05 | 1992 10 | 66 | 90 | 1929 | 4 | TD | 154C6.000 | Hatchback | Croma | |
| Fiat, Passenger Car EU | Croma | 1.9 | Diesel | 1992 11 | 1996 12 | 69 | 94 | 1929 | 4 | TDDi | 154D1.000 | Hatchback | Croma | |
| Fiat, Passenger Car EU | Marengo | 1.9 | Diesel | 1990 02 | 1996 12 | 66 | 92 | 1930 | 4 | TD | 160A6.000 | Estate | Marengo | |
| Fiat, Passenger Car EU | Tempra | 1.9 | Diesel | 1992 03 | 1993 06 | 59 | 80 | 1929 | 4 | TD | 160B6.046 | Estate | Tempra | |
| Fiat, Passenger Car EU | Tipo | 1.9 | Diesel | 1991 07 | 1996 08 | 48 | 65 | 1929 | 4 | Diesel | 160A7.000 | Hatchback | Tipo | |
| Lancia, Passenger Car EU | Dedra | 1.9 | Diesel | 1989 04 | 1999 07 | 66 | 90 | 1929 | 4 | TDS | 835A4.046 | Dedra | ||
| Lancia, Passenger Car EU | Dedra | 1.9 | Diesel | 1989 04 | 1999 07 | 66 | 90 | 1929 | 4 | TDS | 835A4.000 | Dedra | ||
| Lancia, Passenger Car EU | Dedra | 1.9 | Diesel | 1994 07 | 1999 07 | 66 | 90 | 1929 | 4 | TDS | 835A4.000 | Estate | Dedra | |
| Lancia, Passenger Car EU | Dedra | 1.9 | Diesel | 1994 07 | 1999 07 | 66 | 90 | 1929 | 4 | TDS | 160D1.000 | Estate | Dedra | |
| Lancia, Passenger Car EU | Dedra | 1.9 | Diesel | 1989 04 | 1999 07 | 66 | 90 | 1929 | 4 | TDS | 160D1.000 | Dedra | ||
| Lancia, Passenger Car EU | Delta | 1.9 | Diesel | 1994 10 | 1999 08 | 66 | 90 | 1929 | 4 | TD | 160D1.000 | Hatchback | Delta | |
| Lancia, Passenger Car EU | Delta | 1.9 | Diesel | 1994 10 | 1999 08 | 66 | 90 | 1929 | 4 | TD | 835A4.000 | Hatchback | Delta |
