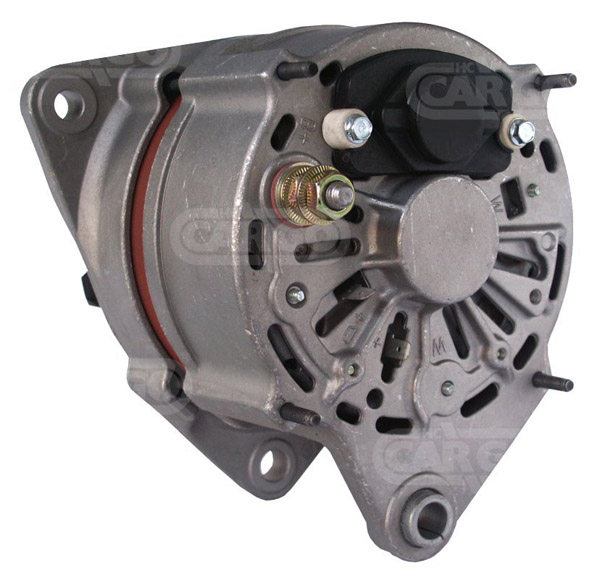

112780 - Alternator (112780)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 90,
Bracket Hole: 12.25, Belt. adj. bracket hole 10.25,
Width/Holder Arm: 13.00, Belt. adj. brackethole pos. 10,
Mount. Bracket Dist.: 82.00,
Pulley Dia.: 60.00,
Pulley Dist.: 48.75,
Grooves/Pulley: 5,
Radius: 93.50,
Radius: 92.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley SP,
Total Length: 190.00

Electrical specifications (Alternator)
Voltage 14
Amp 90

Physical specifications (Alternator)
D Bracket hole 12.25
G Belt. adj. bracket hole 10.25
B Width/holder arm 13.00
E Belt. adj. brackethole pos. 10
C Mount. bracket dist. 82.00
H Pulley dia. 60.00
A Pulley dist. 48.75
i Grooves/pulley 5
j Radius 93.50
j Radius 92.00
k B+ position M8
n Rotation CR
o Regulator plug PL_NA
R Total length 190.00

Further information (Alternator)
Blower EF
Pulley SP

Replacing
0120469028 BOSCH
0120469029 BOSCH
0120469847 BOSCH
0120469848 BOSCH
0120469893 BOSCH
0120469936 BOSCH
0120469937 BOSCH
0120469940 BOSCH
7774480 FIAT
7774481 FIAT

UNISTART Price: £146.88

Sorry, this item is out of stock.

The 112780 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Fiat, Passenger Car EU Tipo 1.4 Gasoline 1989 05 1995 04 51 70 1372 4 i.e. 160A1.046 Hatchback Tipo
Fiat, Passenger Car EU Tipo 1.4 Gasoline 1989 05 1995 04 51 70 1372 4 i.e. 836A4.000 Hatchback Tipo
Fiat, Passenger Car EU Tempra 1.4 Gasoline 1992 03 1996 08 51 69 1372 4 i.e. 160A1.046 Tempra
Fiat, Passenger Car EU Tempra 1.6 Gasoline 1990 06 1992 07 57 78 1581 4 i.e. 159A3.046 Tempra
Fiat, Passenger Car EU Tempra 1.6 Gasoline 1992 10 1996 08 55 75 1581 4 i.e. 835C1.000 Estate Tempra
Fiat, Passenger Car EU Tempra 1.6 Gasoline 1994 06 1996 08 66 90 1581 4 i.e. 159B9.000 Tempra
Fiat, Passenger Car EU Tempra 1.6 Gasoline 1994 06 1996 08 63 87 1581 4 i.e. 159B9.000 Tempra
Fiat, Passenger Car EU Punto 1.4 Gasoline 1996 09 1999 09 96 131 1372 4 Turbo 176B6.000 Hatchback GT Punto
Fiat, Passenger Car EU Tempra 1.4 Gasoline 1991 03 1996 08 57 78 1372 4 i.e. 159A2.000 Tempra
Fiat, Passenger Car EU Tempra 1.6 Gasoline 1990 03 1993 04 63 86 1581 4 159A3.000 Tempra
Fiat, Passenger Car EU Tipo 1.4 Gasoline 1987 07 1989 12 52 71 1372 4 160A1.000 Hatchback Selecta Tipo
Fiat, Passenger Car EU Tipo 1.6 Gasoline 1993 03 1995 04 55 75 1581 4 i.e. 159A3.048 Hatchback Tipo
Fiat, Passenger Car EU Tipo 1.6 Gasoline 1993 03 1995 04 55 75 1581 4 i.e. 835C1.000 Hatchback Tipo
Fiat, Passenger Car EU Tipo 1.6 Gasoline 1990 07 1993 01 57 78 1581 4 i.e. 159A3.046 Hatchback Tipo
Fiat, Passenger Car EU Tempra 1.6 Gasoline 1992 10 1996 08 55 75 1581 4 i.e. 159A3.048 Estate Tempra
Fiat, Passenger Car EU Tempra 1.6 Gasoline 1990 06 1996 08 57 78 1581 4 i.e. 159A3.046 Estate Tempra
Fiat, Passenger Car EU Tipo 1.6 Gasoline 1988 01 1991 10 61 83 1581 4 160A2.000 Hatchback Digit Tipo
Fiat, Passenger Car EU Tipo 1.4 Gasoline 1987 07 1989 12 52 71 1372 4 160A1.048 Hatchback Selecta Tipo
Fiat, Passenger Car EU Tempra 1.4 Gasoline 1992 03 1996 08 51 69 1372 4 i.e. 836A4.000 Tempra
Fiat, Passenger Car EU Tempra 1.6 Gasoline 1992 06 1996 08 55 75 1581 4 i.e. 159A3.048 Tempra
Fiat, Passenger Car EU Tempra 1.6 Gasoline 1990 12 1993 04 63 86 1581 4 159A3.000 Estate Tempra
Fiat, Passenger Car EU Tempra 1.6 Gasoline 1992 06 1996 08 55 75 1581 4 i.e. 835C1.000 Tempra
Fiat, Passenger Car EU Tempra 1.4 Gasoline 1992 10 1996 08 51 69 1372 4 i.e. 836A4.000 Estate Tempra
Fiat, Passenger Car EU Tempra 1.6 Gasoline 1990 06 1996 08 57 78 1581 4 i.e. 835C1.000 Estate Tempra
Fiat, Passenger Car EU Tipo 1.4 Gasoline 1989 05 1995 04 57 78 1372 4 i.e. 159A2.000 Hatchback Tipo
Fiat, Passenger Car EU Tempra 1.4 Gasoline 1992 10 1996 08 51 69 1372 4 i.e. 160A1.046 Estate Tempra
Fiat, Passenger Car EU Tempra 1.6 Gasoline 1994 06 1996 08 66 90 1581 4 i.e. 159B9.000 Estate Tempra
Fiat, Passenger Car EU Punto 1.4 Gasoline 1994 01 1996 09 98 133 1372 4 Turbo 176A4.000 Hatchback GT Punto
Lancia, Passenger Car EU Delta 1.6 Gasoline 1993 06 1999 08 55 75 1581 4 i.e. 835C1.000 Hatchback Delta
Lancia, Passenger Car EU Delta 1.4 Gasoline 1994 10 1999 08 51 69 1372 4 i.e. 836A4.000 Hatchback Delta
Lancia, Passenger Car EU Dedra 1.6 Gasoline 1989 08 1993 03 57 78 1581 4 i.e. 835A1.046 Dedra
Lancia, Passenger Car EU Dedra 1.6 Gasoline 1994 10 1999 07 66 90 1581 4 159B9.000 Estate Dedra
Lancia, Passenger Car EU Dedra 1.6 Gasoline 1993 04 1999 07 55 75 1581 4 i.e. 835C1.000 Dedra
Lancia, Passenger Car EU Delta 1.4 Gasoline 1994 10 1999 08 51 69 1372 4 i.e. 160A1.046 Hatchback Delta
Lancia, Passenger Car EU Dedra 1.6 Gasoline 1994 07 1999 07 66 90 1581 4 159B9.000 LE Dedra
