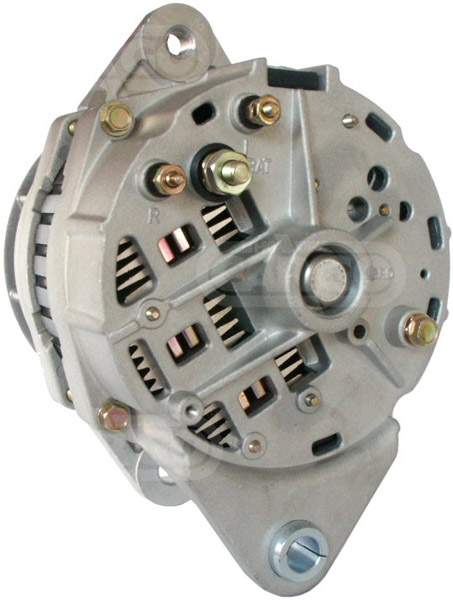

112824 - Alternator (112824)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.

Voltage: 14,
Amp: 145, Terminal W,
Bracket Hole: 13.20, Belt. adj. bracket hole 1/2" UNC,
Width/Holder Arm: 14.10, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 100.60,
Radius: 100.00,
Radius: 100.00,
B+ Position: 5/16" UNC,
Rotation: CR/ACR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley w/o, Remarks Replacing: 22SI. Negative grounding. One wire system. R-Terminal universal. I-Terminal 10-24.,
Total Length: 217.00

Electrical specifications (Alternator)
Voltage	14
Amp	145
Terminal	W

Physical specifications (Alternator)
D	Bracket hole 13.20
G	Belt. adj. bracket hole 1/2" UNC
B	Width/holder arm 14.10
E	Belt. adj. brackethole pos. 60
C	Mount. bracket dist. 100.60
j	Radius 100.00
j	Radius 100.00
k	B+ position 5/16" UNC
n	Rotation CR/ACR
o	Regulator plug PL_NA
R	Total length 217.00

Further information (Alternator)
Blower	EF
Pulley	w/o
Remarks	Replacing: 22SI. Negative grounding. One wire system. R-Terminal universal. I-Terminal 10-24.

Replacing
10459188	REMY (DELCO)
10459189	REMY (DELCO)
10459190	REMY (DELCO)
10459191	REMY (DELCO)
10459192	REMY (DELCO)
10459193	REMY (DELCO)
19020300	REMY (DELCO)
19020302	REMY (DELCO)
19020303	REMY (DELCO)
19020323	REMY (DELCO)

UNISTART Price: £105.25
