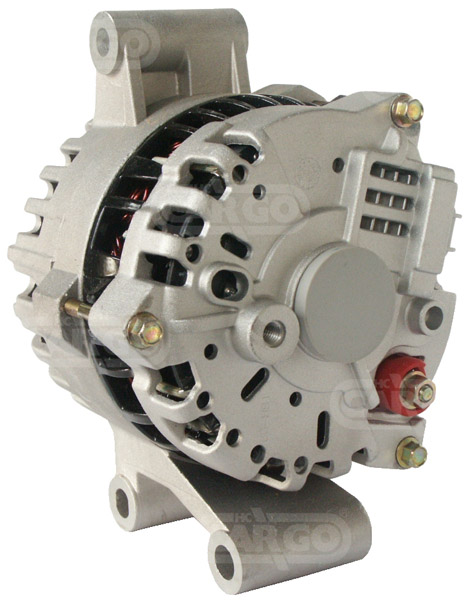

112961 - Alternator (112961)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 110,
Bracket Hole: 10.50, Belt. adj. bracket hole 10.20,
Width/Holder Arm: 55.20, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 74.00,
Pulley Dia.: 56.50,
Pulley Dist.: 40.50,
Grooves/Pulley: 6,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL116,
Bracket Hole: 12.40,
Blower: IF, Pulley SP, Remarks Replacing: 6G series.,
Total Length: 163.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 110 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.50 | |||
| G | Belt. adj. bracket hole 10.20 | |||
| B | Width/holder arm 55.20 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| C | Mount. bracket dist. 74.00 | |||
| H | Pulley dia. 56.50 | |||
| A | Pulley dist. 40.50 | |||
| i | Grooves/pulley 6 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL116 | |||
| D | Bracket hole 12.40 | |||
| R | Total length 163.00 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | SP | |||
| Remarks | Replacing: 6G series. | |||
Replacing | ||||
| 1L8U10300CD | FORD | |||
| 1L8U10300CE | FORD | |||
| 1L8Z10346CB | FORD | |||
| aj03-18-300a | MAZDA | |||
| AJ03-18-300B | MAZDA | |||
| gl463 | FORD | |||
UNISTART Price: £102.22
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mazda, Passenger cars US | Tribute | 3 | Gasoline | 2004 01 | - | 0 | 0 | 2954 | V6 | ES | Tribute | |||
| Mazda, Passenger cars US | Tribute | 3 | Gasoline | 2004 01 | - | 0 | 0 | 2954 | V6 | LX | Tribute | |||
| Mazda, Passenger cars US | Tribute | 3 | Gasoline | 2002 01 | 2002 01 | 0 | 0 | 2954 | V6 | ES | Tribute | |||
| Mazda, Passenger cars US | Tribute | 3 | Gasoline | 2003 01 | 2003 01 | 0 | 0 | 2954 | V6 | LX | Tribute | |||
| Mazda, Passenger cars US | Tribute | 2 | Gasoline | 2001 01 | 2001 01 | 0 | 0 | 1991 | L4 | Tribute | ||||
| Mazda, Passenger cars US | Tribute | 3 | Gasoline | 2002 01 | 2002 01 | 0 | 0 | 2954 | V6 | LX | Tribute | |||
| Mazda, Passenger cars US | Tribute | 3 | Gasoline | 2003 01 | 2003 01 | 0 | 0 | 2954 | V6 | ES | Tribute | |||
| Mazda, Passenger cars US | Tribute | 3 | Gasoline | 2001 01 | 2001 01 | 0 | 0 | 2954 | V6 | Tribute | ||||
| Mazda, Passenger cars US | Tribute | 3 | Gasoline | 2002 01 | - | 0 | 0 | 2954 | V6 | DX | Tribute | |||
| Ford, Passenger cars US | Escape | 3 | Gasoline | 2003 01 | 2003 01 | 0 | 0 | 0 | V6 | Escape | ||||
| Ford, Passenger cars US | Escape | 3 | Gasoline | 2001 01 | 2002 01 | 0 | 0 | 0 | V6 | Escape | ||||
| Ford, Passenger cars US | Escape | 3 | Gasoline | 2004 01 | - | 0 | 0 | 0 | V6 | Escape |
