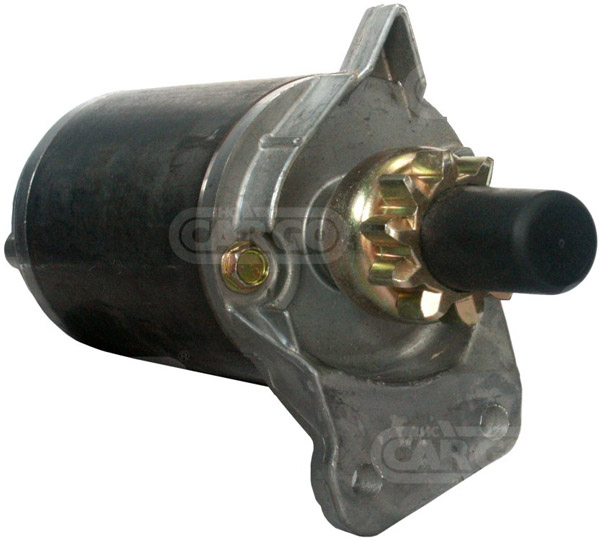

113015 - Starter (113015)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12, Drive dist. 27.40, Dist./back 150.85, Dist./front 58.50, No. of teeth 10, B+ M6, Gear type DD, Dist. 38.00,
Rotation: ACR, No./mount. holes 2 (0), Clutch type Dry,
Drive Type: Bronze,
Total Length: 228.75, Oil sealed No, Waterproof No
Electrical specifications (Starter) | ||||
| Voltage | 12 | |||
Physical specifications (Starter) | ||||
| B | Drive dist. 27.40 | |||
| F | Dist./back 150.85 | |||
| G | Dist./front 58.50 | |||
| H | No. of teeth 10 | |||
| I | B+ M6 | |||
| N | Gear type DD | |||
| O | Dist. 38.00 | |||
| P | Rotation ACR | |||
| R | Total length 228.75 | |||
Further information (Starter) | ||||
| No./mount. | holes 2 (0) | |||
| Clutch | type Dry | |||
| Drive | type Bronze | |||
| Oil | sealed No | |||
| Waterproof | No | |||
Replacing | ||||
| 191-1529 | ONAN | |||
| 191-1567 | ONAN | |||
| 4367240MO30SM | UNITED TECHNOLOGIES | |||
| 4379040MO30SM | UNITED TECHNOLOGIES | |||
| 57-9480 | TORO | |||
| AM32393 | JOHN DEERE | |||
| sm43672 | UNITED TECHNOLOGIES | |||
| sm43790 | UNITED TECHNOLOGIES | |||
UNISTART Price: £94.84
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cub Cadet, Agricultural | Garden | - | - | 0 | 20 | 0 | Onan B48G | 982 | ||||||
| Cub Cadet, Agricultural | Garden | - | - | 0 | 20 | 0 | Onan B48G | 984 | ||||||
| Cub Cadet, Agricultural | Garden | - | - | 0 | 20 | 0 | Onan B48G | 986 | ||||||
| Cub Cadet, Agricultural | Garden | - | - | 0 | 20 | 0 | Onan B48G | 1912 | ||||||
| Cub Cadet, Agricultural | Garden | - | - | 0 | 20 | 0 | Onan B48G | 1914 | ||||||
| John Deere, Agricultural | Lawn | - | - | 0 | 0 | 0 | Onan | 318 | ||||||
| John Deere, Agricultural | Lawn | - | - | 0 | 0 | 0 | Onan | 316 | ||||||
| John Deere, Agricultural | Lawn | - | - | 0 | 0 | 0 | Onan | 420 | ||||||
| Onan, MOTOR | Engine | - | - | 0 | 0 | 0 | Various Models | |||||||
| New Holland, Industrials | L | - | - | 0 | 0 | 0 | Onan B43G | L250 |
