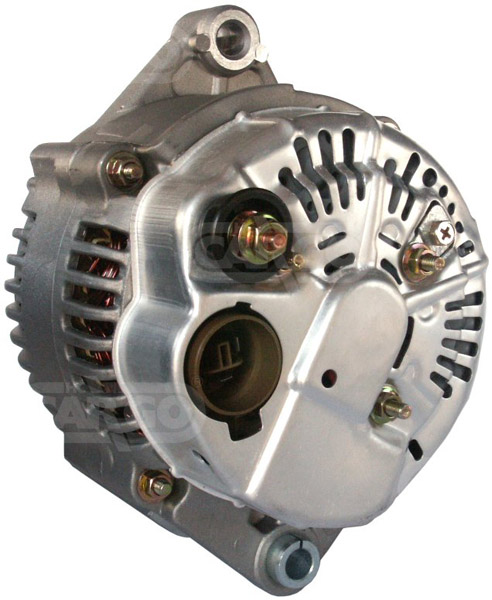

113069 - Alternator (113069)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 125,
Bracket Hole: M10-1.50, Belt. adj. bracket hole 11.50,
Width/Holder Arm: 22.30, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 54.00,
Pulley Dia.: 62.35,
Pulley Dist.: 33.80,
Grooves/Pulley: 6,
Radius: 84.20,
Radius: 87.30,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL93,
Blower: IF, Pulley SP,
Total Length: 184.50
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 125 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole M10-1.50 | |||
| G | Belt. adj. bracket hole 11.50 | |||
| B | Width/holder arm 22.30 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| C | Mount. bracket dist. 54.00 | |||
| H | Pulley dia. 62.35 | |||
| A | Pulley dist. 33.80 | |||
| i | Grooves/pulley 6 | |||
| j | Radius 84.20 | |||
| j | Radius 87.30 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL93 | |||
| R | Total length 184.50 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | SP | |||
Replacing | ||||
| 121000-4210 | DENSO | |||
| 121000-4211 | DENSO | |||
| 4671320 | CHRYSLER | |||
UNISTART Price: £114.54
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Chrysler, Passenger cars US | Sebring | 2.5 | Gasoline | 1998 01 | 1998 01 | 0 | 0 | 2497 | V6 | EEB | LXI | Sebring | ||
| Chrysler, Passenger cars US | Sebring | 2.4 | Gasoline | 1997 01 | 1998 01 | 0 | 0 | 2429 | L4 | EDZ | JXI | Sebring | ||
| Chrysler, Passenger cars US | Sebring | 2.5 | Gasoline | 1996 01 | 1997 01 | 0 | 0 | 2497 | V6 | EEB | JX | Sebring | ||
| Chrysler, Passenger cars US | Sebring | 2.4 | Gasoline | 1998 01 | 1998 01 | 0 | 0 | 2429 | L4 | EDZ | JX | Sebring | ||
| Chrysler, Passenger cars US | Sebring | 2.5 | Gasoline | 1998 01 | 1998 01 | 0 | 0 | 2497 | V6 | EEB | JXI | Sebring | ||
| Chrysler, Passenger cars US | Sebring | 2.5 | Gasoline | 1999 01 | 2000 01 | 0 | 0 | 2497 | V6 | JXI | Sebring | |||
| Chrysler, Passenger cars AO | Sebring | 2.5 | Gasoline | 1995 05 | 2000 09 | 120 | 163 | 2497 | 6 | EEB | Coupe | LE | Sebring |
