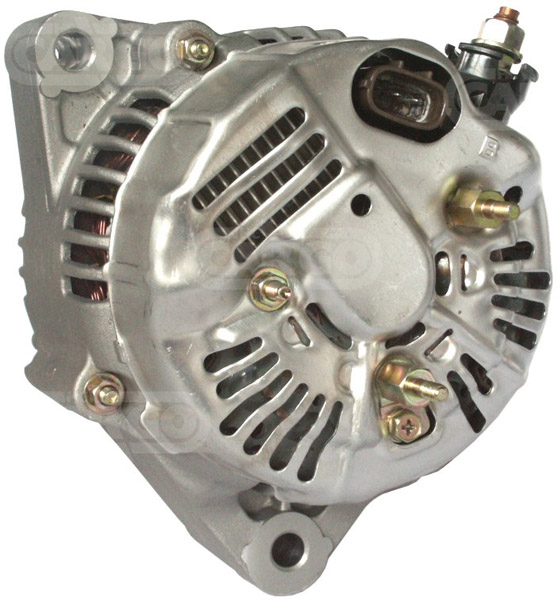

113090 - Alternator (113090)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 100,
Bracket Hole: 10.50, Belt. adj. bracket hole 10.50,
Width/Holder Arm: 57.80, Belt. adj. brackethole pos. 10,
Pulley Dia.: 60.00,
Pulley Dist.: 89.50,
Grooves/Pulley: 6,
Radius: 86.00,
Radius: 86.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL58,
Blower: IF, Pulley SP,
Total Length: 186.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 100 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.50 | |||
| G | Belt. adj. bracket hole 10.50 | |||
| B | Width/holder arm 57.80 | |||
| E | Belt. adj. brackethole pos. 10 | |||
| H | Pulley dia. 60.00 | |||
| A | Pulley dist. 89.50 | |||
| i | Grooves/pulley 6 | |||
| j | Radius 86.00 | |||
| j | Radius 86.00 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL58 | |||
| R | Total length 186.00 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | SP | |||
Replacing | ||||
| 100211-6390 | DENSO | |||
| 100211-6440 | DENSO | |||
| 101211-7180 | DENSO | |||
| 27060-50070 | TOYOTA | |||
| 27060-50080 | TOYOTA | |||
| 27060-50140 | TOYOTA | |||
UNISTART Price: £161.44
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lexus, Passenger Car EU | LS | 4 | Gasoline | 1989 12 | 1994 12 | 180 | 245 | 3969 | 8 | 1UZ-FE | LS 400 | |||
| Lexus, Passenger cars US | LS | 4 | Gasoline | 1990 01 | 1994 01 | 0 | 0 | 3967 | V8 | 1UZ-FE | LS 400 |
TEST & REPAIR SERVICE
Unistart has its own workshops for remanufacturing with the latest testing equipment. This enables us to provide an excellent (and free) technical helpline and aftersales support and backup service.
You can speak to one of our friendly and knowledgeable technicians who will be glad to Help with any enquiries no matter how large or small. Call us on 020 8 983 9969.
