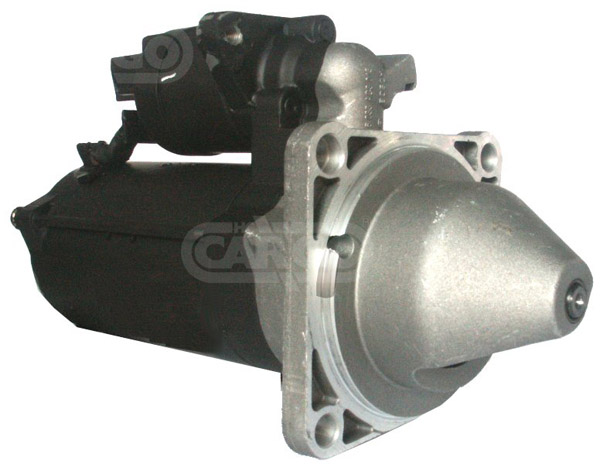

113182 - Starter (113182)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12, kW 3.0, Mount. flange 110.00, Drive dist. 30.00, Dist./back 229.00, Dist./front 74.50, No. of teeth 9, B+ M10, Gear type GR, Dist. 146.00, Dist. 2 103.00, Dist. 3 103.50,
Rotation: CR, No./mount. holes 3 (0),
Drive Type: Steel,
Total Length: 320.00, Oil sealed No, Waterproof No
Electrical specifications (Starter) | ||||
| Voltage | 12 | |||
| kW | 3.0 | |||
Physical specifications (Starter) | ||||
| A | Mount. flange 110.00 | |||
| B | Drive dist. 30.00 | |||
| F | Dist./back 229.00 | |||
| G | Dist./front 74.50 | |||
| H | No. of teeth 9 | |||
| I | B+ M10 | |||
| N | Gear type GR | |||
| O | Dist. 146.00 | |||
| O | Dist. 2 103.00 | |||
| O | Dist. 3 103.50 | |||
| P | Rotation CR | |||
| R | Total length 320.00 | |||
Further information (Starter) | ||||
| No./mount. | holes 3 (0) | |||
| Drive | type Steel | |||
| Oil | sealed No | |||
| Waterproof | No | |||
Replacing | ||||
| 0001230007 | BOSCH | |||
| 0001230010 | BOSCH | |||
| 0001230023 | BOSCH | |||
| 0001262007 | BOSCH | |||
| 0001262008 | BOSCH | |||
| 11.131.604 | ISKRA | |||
| 500325145 | IVECO | |||
| 504059251 | IVECO | |||
| azf4155 | ISKRA | |||
| MSN2039 | MAGNETI MARELLI | |||
UNISTART Price: £178.75
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| New Holland, Industrials | L | 3.6 | Diesel | 1995 09 | 1998 12 | 0 | 0 | 0 | Fiat | L65 | ||||
| New Holland, Industrials | L | 3.9 | Diesel | 1995 09 | 1998 12 | 0 | 0 | 0 | Fiat | L75 | ||||
| New Holland, Industrials | L | 2.9 | Diesel | 1995 09 | 1998 12 | 0 | 0 | 0 | Fiat | L60 | ||||
| New Holland, Industrials | L | 3.9 | Diesel | 1995 09 | 1998 12 | 0 | 0 | 0 | Fiat | L85 | ||||
| New Holland, Industrials | L | 3.9 | Diesel | 1995 09 | 1998 12 | 0 | 0 | 0 | Fiat | L95 | ||||
| New Holland, Agricultural | TL | 1998 10 | - | 0 | 0 | 0 | TL Series | |||||||
| New Holland, Industrials | L | 3.6 | Diesel | 1995 09 | 1998 12 | 0 | 0 | 0 | Fiat | L65 | ||||
| New Holland, Industrials | L | 3.9 | Diesel | 1995 09 | 1998 12 | 0 | 0 | 0 | Fiat | L75 | ||||
| New Holland, Industrials | L | 2.9 | Diesel | 1995 09 | 1998 12 | 0 | 0 | 0 | Fiat | L60 | ||||
| New Holland, Industrials | L | 3.9 | Diesel | 1995 09 | 1998 12 | 0 | 0 | 0 | Fiat | L85 | ||||
| New Holland, Industrials | L | 3.9 | Diesel | 1995 09 | 1998 12 | 0 | 0 | 0 | Fiat | L95 |
TEST & REPAIR SERVICE
Unistart has its own workshops for remanufacturing with the latest testing equipment. This enables us to provide an excellent (and free) technical helpline and aftersales support and backup service.
You can speak to one of our friendly and knowledgeable technicians who will be glad to Help with any enquiries no matter how large or small. Call us on 020 8 983 9969.
