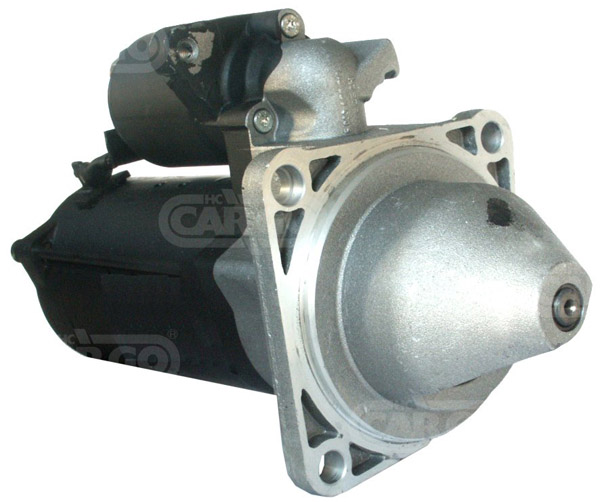

113183 - Starter (113183)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 24, kW 4.0, Mount. flange 110.00, Drive dist. 28.00, Dist./back 228.00, Dist./front 75.15, No. of teeth 9, B+ M10, Gear type GR, Dist. 147.00, Dist. 2 104.00, Dist. 3 104.00,
Rotation: CR, No./mount. holes 3 (0), Clutch type Dry,
Drive Type: Steel,
Total Length: 315.00, Oil sealed No, Waterproof No, Source Bosch
Electrical specifications (Starter) | ||||
| Voltage | 24 | |||
| kW | 4.0 | |||
Physical specifications (Starter) | ||||
| A | Mount. flange 110.00 | |||
| B | Drive dist. 28.00 | |||
| F | Dist./back 228.00 | |||
| G | Dist./front 75.15 | |||
| H | No. of teeth 9 | |||
| I | B+ M10 | |||
| N | Gear type GR | |||
| O | Dist. 147.00 | |||
| O | Dist. 2 104.00 | |||
| O | Dist. 3 104.00 | |||
| P | Rotation CR | |||
| R | Total length 315.00 | |||
| Source | Bosch | |||
Further information (Starter) | ||||
| No./mount. | holes 3 (0) | |||
| Clutch | type Dry | |||
| Drive | type Steel | |||
| Oil | sealed No | |||
| Waterproof | No | |||
Replacing | ||||
| 0001231010 | BOSCH | |||
UNISTART Price: £1120.89
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | - | 100 | 136 | 3908 | 4 | 8040.45.4000 | Platform / Chassis | 75 E 14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 01 | 1985 11 | 99 | 135 | 5500 | 6 | 8060.04.660 | Platform / Chassis | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 01 | 1985 11 | 99 | 135 | 5500 | 6 | 8060.04.660 | Dump Truck | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.9 | Diesel | 1985 12 | 1991 03 | 101 | 137 | 5861 | 6 | 8060.05.280 | Platform / Chassis | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 07 | 1985 10 | 99 | 135 | 5500 | 6 | 8060.04.669 | Platform / Chassis | 95-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 06 | 1985 12 | 99 | 135 | 5500 | 6 | 8060.04.689 | Dump Truck | 109-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.660 | Twin Cab | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.9 | Diesel | 1985 12 | 1991 03 | 101 | 137 | 5861 | 6 | 8060.05.280 | Dump Truck | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.660 | Dump Truck | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.060 | Platform / Chassis | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.060 | Dump Truck | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 01 | 1985 11 | 99 | 135 | 5500 | 6 | 8060.04.660 | Twin Cab | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.9 | Diesel | 1985 12 | 1991 03 | 101 | 137 | 5861 | 6 | 8060.05.280 | Twin Cab | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.660 | Platform / Chassis | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.060 | Twin Cab | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 07 | 1985 10 | 99 | 135 | 5500 | 6 | 8060.04.669 | Dump Truck | 95-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 06 | 1985 12 | 99 | 135 | 5500 | 6 | 8060.04.689 | Platform / Chassis | 109-14 | ||
| Iveco, Trucks EU | Zeta | 5.9 | Diesel | 1985 11 | 1991 03 | 101 | 137 | 5861 | 6 | 8060.05.289 | Dump Truck | 109-14 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | - | 100 | 136 | 3908 | 4 | 8040.45.4180 | Platform / Chassis | 75 E 14 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | - | 100 | 136 | 3908 | 4 | 8040.45.4000 | Platform / Chassis | 75 E 14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 01 | 1985 11 | 99 | 135 | 5500 | 6 | 8060.04.660 | Platform / Chassis | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 01 | 1985 11 | 99 | 135 | 5500 | 6 | 8060.04.660 | Dump Truck | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.9 | Diesel | 1985 12 | 1991 03 | 101 | 137 | 5861 | 6 | 8060.05.280 | Platform / Chassis | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 07 | 1985 10 | 99 | 135 | 5500 | 6 | 8060.04.669 | Platform / Chassis | 95-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 06 | 1985 12 | 99 | 135 | 5500 | 6 | 8060.04.689 | Dump Truck | 109-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.660 | Twin Cab | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.9 | Diesel | 1985 12 | 1991 03 | 101 | 137 | 5861 | 6 | 8060.05.280 | Dump Truck | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.660 | Dump Truck | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.060 | Platform / Chassis | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.060 | Dump Truck | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 01 | 1985 11 | 99 | 135 | 5500 | 6 | 8060.04.660 | Twin Cab | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.9 | Diesel | 1985 12 | 1991 03 | 101 | 137 | 5861 | 6 | 8060.05.280 | Twin Cab | 79-14 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | - | 100 | 136 | 3908 | 4 | 8040.45.4180 | Platform / Chassis | 75 E 14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.660 | Platform / Chassis | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.060 | Twin Cab | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 07 | 1985 10 | 99 | 135 | 5500 | 6 | 8060.04.669 | Dump Truck | 95-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 06 | 1985 12 | 99 | 135 | 5500 | 6 | 8060.04.689 | Platform / Chassis | 109-14 | ||
| Iveco, Trucks EU | Zeta | 5.9 | Diesel | 1985 11 | 1991 03 | 101 | 137 | 5861 | 6 | 8060.05.289 | Dump Truck | 109-14 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | - | 100 | 136 | 3908 | 4 | 8040.45.4000 | Platform / Chassis | 75 E 14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 06 | 1985 12 | 99 | 135 | 5500 | 6 | 8060.04.689 | Dump Truck | 109-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 01 | 1985 11 | 99 | 135 | 5500 | 6 | 8060.04.660 | Platform / Chassis | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 01 | 1985 11 | 99 | 135 | 5500 | 6 | 8060.04.660 | Dump Truck | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.9 | Diesel | 1985 12 | 1991 03 | 101 | 137 | 5861 | 6 | 8060.05.280 | Platform / Chassis | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.660 | Twin Cab | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.9 | Diesel | 1985 12 | 1991 03 | 101 | 137 | 5861 | 6 | 8060.05.280 | Dump Truck | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.660 | Dump Truck | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.060 | Platform / Chassis | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.060 | Dump Truck | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 01 | 1985 11 | 99 | 135 | 5500 | 6 | 8060.04.660 | Twin Cab | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.9 | Diesel | 1985 12 | 1991 03 | 101 | 137 | 5861 | 6 | 8060.05.280 | Twin Cab | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.660 | Platform / Chassis | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.060 | Twin Cab | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 07 | 1985 10 | 99 | 135 | 5500 | 6 | 8060.04.669 | Dump Truck | 95-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 06 | 1985 12 | 99 | 135 | 5500 | 6 | 8060.04.689 | Platform / Chassis | 109-14 | ||
| Iveco, Trucks EU | Zeta | 5.9 | Diesel | 1985 11 | 1991 03 | 101 | 137 | 5861 | 6 | 8060.05.289 | Dump Truck | 109-14 |
