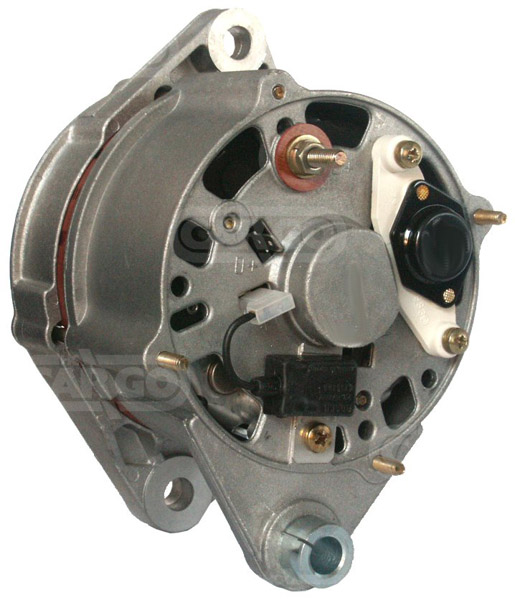

113187 - Alternator (113187)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 85,
Bracket Hole: 12.10, Belt. adj. bracket hole 11.10,
Width/Holder Arm: 17.00, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 70.10,
Radius: >85,
Radius: 81.00,
B+ Position: M6,
Regulator Plug: or plug PL_NA,
Blower: w/o, Pulley w/o,
Total Length: 168.00, Source Bosch
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 85 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 12.10 | |||
| G | Belt. adj. bracket hole 11.10 | |||
| B | Width/holder arm 17.00 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| C | Mount. bracket dist. 70.10 | |||
| j | Radius >85 | |||
| j | Radius 81.00 | |||
| k | B+ position M6 | |||
| o | Regulator plug PL_NA | |||
| R | Total length 168.00 | |||
| Source | Bosch | |||
Further information (Alternator) | ||||
| Blower | w/o | |||
| Pulley | w/o | |||
Replacing | ||||
| 0120484009 | BOSCH | |||
UNISTART Price: £626.24
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fiat, Passenger Car EU | Tipo | 1.6 | Gasoline | 1988 02 | 1991 05 | 66 | 90 | 1595 | 4 | i.e. | 149C2.046 | Hatchback | Tipo | |
| Fiat, Passenger Car EU | Croma | 2 | Gasoline | 1987 03 | 1992 09 | 88 | 120 | 1995 | 4 | i.e. | 834B.000 | Hatchback | 2000 | Croma |
| Fiat, Passenger Car EU | Croma | 2 | Gasoline | 1987 10 | 1996 08 | 85 | 116 | 1995 | 4 | i.e. | 154C3.046 | Hatchback | 2000 | Croma |
| Fiat, Passenger Car EU | Tempra | 1.9 | Diesel | 1991 07 | 1995 02 | 66 | 90 | 1929 | 4 | TD | 160D1.000 | Estate | Tempra | |
| Fiat, Passenger Car EU | Ducato | 1.9 | Diesel | 1989 03 | 1990 08 | 60 | 82 | 1929 | 4 | TD | 280A1.000 | Bus | Panorama | Ducato |
| Fiat, Passenger Car EU | Tipo | 1.8 | Gasoline | 1989 11 | 1992 06 | 100 | 136 | 1756 | 4 | i.e. 16V | 160A5.000 | Hatchback | Tipo | |
| Fiat, Passenger Car EU | Croma | 2 | Gasoline | 1986 03 | 1990 09 | 83 | 113 | 1995 | 4 | i.e. | 834B.048 | Hatchback | 2000 | Croma |
| Fiat, Passenger Car EU | Tempra | 1.9 | Diesel | 1991 07 | 1995 02 | 66 | 90 | 1929 | 4 | TD | 160A6.000 | Estate | Tempra | |
| Fiat, Passenger Car EU | Tempra | 1.9 | Diesel | 1991 07 | 1996 08 | 48 | 65 | 1929 | 4 | Diesel | 160A7.000 | Tempra | ||
| Fiat, Passenger Car EU | Ducato | 1.9 | Diesel | 1989 03 | 1994 03 | 60 | 82 | 1929 | 4 | TD | 280A1.000 | Van | Ducato | |
| Fiat, Passenger Car EU | Croma | 2 | Gasoline | 1985 12 | 1989 02 | 66 | 90 | 1995 | 4 | 154A1.000 | Hatchback | 2000 CHT | Croma | |
| Fiat, Passenger Car EU | Tempra | 1.9 | Diesel | 1992 07 | 1996 08 | 59 | 80 | 1929 | 4 | TD | 160B6.046 | Tempra | ||
| Fiat, Passenger Car EU | Tempra | 1.9 | Diesel | 1990 05 | 1996 08 | 66 | 90 | 1929 | 4 | TD | 160A6.000 | Tempra | ||
| Fiat, Passenger Car EU | Tempra | 1.9 | Diesel | 1990 05 | 1996 08 | 66 | 90 | 1929 | 4 | TD | 160D1.000 | Tempra | ||
| Fiat, Passenger Car EU | Tempra | 1.8 | Gasoline | 1990 03 | 1996 08 | 81 | 110 | 1756 | 4 | i.e. | 159A4.000 | Estate | Tempra | |
| Fiat, Passenger Car EU | Ducato | 1.9 | Diesel | 1989 03 | 1994 03 | 60 | 82 | 1929 | 4 | TD | 280A1.000 | Platform / Chassis | Ducato | |
| Fiat, Passenger Car EU | Marengo | 1.9 | Diesel | 1990 02 | 1996 12 | 48 | 65 | 1930 | 4 | Diesel | 160A7.000 | Estate | Marengo | |
| Fiat, Passenger Car EU | Croma | 1.9 | Diesel | 1989 05 | 1992 10 | 66 | 90 | 1929 | 4 | TD | 154C6.000 | Hatchback | Croma | |
| Fiat, Passenger Car EU | Ducato | 1.9 | Diesel | 1989 03 | 1990 08 | 60 | 82 | 1929 | 4 | TD | 280A1.000 | Van | Ducato | |
| Fiat, Passenger Car EU | Croma | 2 | Gasoline | 1987 03 | 1992 09 | 88 | 120 | 1995 | 4 | i.e. | 154C3.000 | Hatchback | 2000 | Croma |
| Fiat, Passenger Car EU | Tempra | 1.9 | Diesel | 1992 03 | 1993 06 | 59 | 80 | 1929 | 4 | TD | 160B6.046 | Estate | Tempra | |
| Fiat, Passenger Car EU | Croma | 1.6 | Gasoline | 1985 12 | 1990 12 | 61 | 83 | 1585 | 4 | 154A.048 | Hatchback | Croma | ||
| Ferrari, Passenger Car EU | 40 Series | 3 | Gasoline | 1988 02 | 1992 06 | 352 | 478 | 2936 | 8 | F120A | Coupe | F 40 | ||
| Ferrari, Passenger Car EU | 200 Series | 2 | Gasoline | 1982 06 | 1989 10 | 162 | 220 | 1991 | 8 | Turbo | F106D.. | Coupe | 208 | |
| Lancia, Passenger Car EU | Prisma | 1.9 | Diesel | 1985 05 | 1989 12 | 59 | 80 | 1928 | 4 | TD | 831D1.000 | Prisma |
