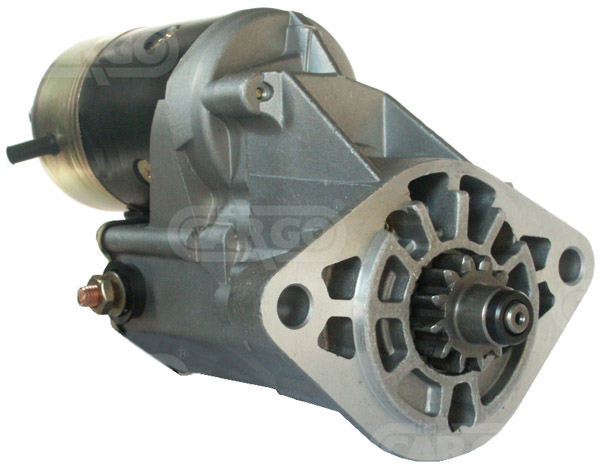

113239 - Starter (113239)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 2.5, Mount. flange 91.00, Drive dist. 15.50, Dist./back 258.00, Dist./front 36.00, No. of teeth 12, B+ M10, Gear type GR, Dist. 142.30,
Rotation: CR, No./mount. holes 2 (0),
Drive Type: Steel,
Total Length: 299.00, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 12
kW 2.5

Physical specifications (Starter)
A Mount. flange 91.00
B Drive dist. 15.50
F Dist./back 258.00
G Dist./front 36.00
H No. of teeth 12
I B+ M10
N Gear type GR
O Dist. 142.30
P Rotation CR
R Total length 299.00

Further information (Starter)
No./mount. holes 2 (0)
Drive type Steel
Oil sealed No
Waterproof No

Replacing
128000-8640 DENSO
128000-8641 DENSO
228000-1610 DENSO
228000-1611 DENSO
228000-5990 DENSO
228000-5992 DENSO
28100-17010 TOYOTA
28100-17040 TOYOTA
28100-17060 TOYOTA
28100-17090 TOYOTA

UNISTART Price: £190.60

Sorry, this item is out of stock.

The 113239 - Starter is shown in: Starters & Alternators > Starters , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Toyota, Passenger Car EU Land Cruiser 4.2 Diesel 1990 01 1997 12 123 167 4164 6 TD 1HD-T Land Cruiser
Toyota, Passenger Car EU Land Cruiser 2.4 Gasoline 1984 11 1993 05 81 110 2367 4 22R Land Cruiser
Toyota, Passenger Car EU Land Cruiser 2.4 Diesel 1990 01 1993 05 66 90 2446 4 TD 2L-T Land Cruiser
Toyota, Passenger Car EU Land Cruiser 4 Diesel 1981 10 1988 01 77 105 3980 6 Diesel 2H Land Cruiser
Toyota, Passenger Car EU Land Cruiser 4.2 Diesel 1992 10 1997 12 118 160 4164 6 TD 1HD-T Land Cruiser
Toyota, Passenger Car EU Land Cruiser 3.4 Diesel 1985 10 1986 08 91 124 3431 4 TD 13BT Land Cruiser
Toyota, Passenger Car EU Land Cruiser 2.8 Diesel 1990 01 2001 08 61 83 2779 4 TD 3L 4x4 Land Cruiser
Toyota, Passenger Car EU Land Cruiser 2.4 Diesel 1984 11 1985 10 53 72 2429 4 Diesel 2L Land Cruiser
Toyota, Passenger Car EU Land Cruiser 2.4 Diesel 1985 10 1990 05 63 86 2446 4 TD 2L-T Land Cruiser
Toyota, Passenger Car EU Land Cruiser 3 Diesel 1993 05 1996 05 92 125 2982 4 TD 1KZ-T Land Cruiser
Toyota, Passenger Car EU Land Cruiser 4.5 Gasoline 1992 08 1997 12 151 205 4477 6 24V 1FZ-FE Land Cruiser
Toyota, Passenger Car EU Land Cruiser 3.4 Gasoline 1996 04 - 131 178 3378 6 i 24V 5VZ-FE 4WD Land Cruiser
Toyota, Passenger Car EU Land Cruiser 3 Diesel 2000 10 - 120 163 2982 4 D-4D 1KD-FTV Land Cruiser
Toyota, Passenger Car EU Land Cruiser 4.2 Gasoline 1975 01 1986 04 89 121 4230 6 2F Pick Up Land Cruiser
Toyota, Passenger Car EU Land Cruiser 3.4 Diesel 1980 08 1984 10 66 90 3432 4 Diesel 3B Land Cruiser
Toyota, Passenger Car EU Land Cruiser 4.2 Diesel 1990 01 1997 12 99 135 4164 6 Diesel 1H-Z Land Cruiser
Toyota, Passenger Car EU Land Cruiser 2.4 Diesel 1990 07 1996 05 66 90 2446 4 TD 2L-T Convertible Land Cruiser
Toyota, Passenger Car EU Land Cruiser 4 Gasoline 1990 01 1992 08 115 156 3956 6 3F-E Land Cruiser
Toyota, Passenger Car EU Land Cruiser 3.9 Gasoline - 1975 01 96 131 3878 6 F Pick Up Land Cruiser
Toyota, Passenger Car EU Land Cruiser 2.6 Diesel 1975 01 1980 07 66 90 3576 6 Diesel H Pick Up Land Cruiser
Toyota, Passenger Car EU Land Cruiser 4 Diesel 1980 08 1984 10 76 103 3980 6 Diesel 2H Pick Up Land Cruiser
Toyota, Passenger Car EU Land Cruiser 3.9 Gasoline - 1975 01 96 131 3878 6 F Land Cruiser
Toyota, Passenger Car EU Land Cruiser 4 Diesel 1980 08 1984 10 76 103 3980 6 Diesel 2H Land Cruiser
Toyota, Passenger Car EU Land Cruiser 3 Diesel 1993 05 1996 05 92 125 2982 4 TD 1KZ-T Convertible Land Cruiser
Toyota, Passenger Car EU Land Cruiser 4 Diesel 1985 01 1987 12 76 103 3980 6 Diesel 2H Land Cruiser
Toyota, Passenger Car EU Land Cruiser 4.2 Gasoline 1981 10 1988 01 88 120 4230 6 2F Land Cruiser
Toyota, Passenger Car EU Land Cruiser 2.4 Gasoline 1988 12 1996 12 84 114 2366 4 22RE Land Cruiser
Toyota, Passenger Car EU Land Cruiser 4.2 Diesel 1998 01 - 150 204 4164 6 TD 1HD-FTE 100 Land Cruiser
Toyota, Passenger Car EU Land Cruiser 3.4 Diesel 1980 08 1984 10 66 90 3432 4 Diesel 3B Pick Up Land Cruiser
Toyota, Passenger Car EU Land Cruiser 4.7 Gasoline 2002 02 - 175 238 4664 8 2UZ-FE Land Cruiser
Toyota, Passenger Car EU Land Cruiser 3.6 Diesel 1979 04 1980 07 66 90 3576 6 Diesel H Land Cruiser
Toyota, Passenger Car EU Land Cruiser 3.4 Diesel 1981 10 1987 08 66 90 3432 4 Diesel 3B Land Cruiser
Toyota, Passenger Car EU Land Cruiser 4 Diesel 1985 10 1989 12 100 136 3980 6 TD 12HT Land Cruiser
Toyota, Passenger Car EU Land Cruiser 2.4 Gasoline 1984 11 1993 05 77 105 2367 4 22R Land Cruiser
Toyota, Passenger Car EU Land Cruiser 4.2 Diesel 1995 03 1997 12 125 170 4164 6 TD 1HD-FT Land Cruiser
Toyota, Passenger Car EU Land Cruiser 3 Diesel 1996 04 - 92 125 2982 4 TD 1KZ-TE 4WD Land Cruiser
Toyota, Passenger Car EU Land Cruiser 3.4 Diesel 1984 11 1996 12 70 95 3432 4 Diesel 3B Land Cruiser
Toyota, Passenger Car EU Land Cruiser 4.7 Gasoline 1998 01 - 173 235 4664 8 V8 32V 2UZ-FE Land Cruiser
Toyota, Passenger Car EU Land Cruiser 4 Gasoline 1987 08 1989 12 115 156 3956 6 3F-E Land Cruiser
Toyota, Passenger Car EU Land Cruiser 4.2 Gasoline 1975 01 1986 04 89 121 4230 6 2F Land Cruiser
Toyota, Passenger Car EU Land Cruiser 3 Diesel 1974 02 1984 10 59 80 2977 4 Diesel B Land Cruiser
Toyota, Passenger Car EU Land Cruiser 4 Gasoline 1984 11 1987 08 101 137 3956 6 3F Land Cruiser
Toyota, Passenger Car EU Land Cruiser 4.2 Diesel 1990 01 - 96 131 4164 6 TD 1H-Z Land Cruiser
Toyota, Passenger Car EU Land Cruiser 3 Diesel 2002 09 2010 02 127 173 2982 4 D-4D 1KD-FTV Land Cruiser
Toyota, Passenger Car EU Land Cruiser 3 Diesel 2004 08 - 122 166 2982 4 D-4D 1KD-FTV Land Cruiser
Toyota, Passenger Car EU Land Cruiser 3 Diesel 2003 01 - 120 163 2982 4 D-4D 1KD-FTV Land Cruiser
Toyota, Passenger cars US Land Cruiser 3.4 Diesel 1983 01 - 0 0 3431 L4 3B Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.7 Gasoline 2002 01 2002 01 0 0 4663 V8 2UZ-FE Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.2 Diesel 1981 01 - 0 0 4228 L6 Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.2 Diesel 1985 01 - 0 0 4228 L6 Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.2 Diesel 1987 01 - 0 0 4228 L6 Land Cruiser
Toyota, Passenger cars US Land Cruiser 3.9 Gasoline - - 0 0 3878 L6 Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.7 Gasoline 2003 01 - 0 0 4663 V8 2UZ-FE Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.7 Gasoline 2007 01 - 0 0 4663 V8 2UZ-FE Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.7 Gasoline 2005 01 - 0 0 4663 V8 2UZ-FE Land Cruiser
Toyota, Passenger cars US Land Cruiser 3.9 Gasoline 1974 01 1974 01 0 0 3878 L6 F Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.2 Diesel 1981 01 - 0 0 4228 L6 Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.2 Diesel 1983 01 - 0 0 4228 L6 Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.2 Diesel 1984 01 - 0 0 4228 L6 Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.2 Diesel 1986 01 - 0 0 4228 L6 Land Cruiser
Toyota, Passenger cars US Land Cruiser 4 Gasoline 1988 01 1992 01 0 0 3956 L6 3F-E Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.5 Gasoline 1993 01 1995 01 0 0 4477 L6 1FZ-FE Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.7 Gasoline 1998 01 1998 01 0 0 4663 V8 2UZ-FE Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.7 Gasoline 2004 01 - 0 0 4663 V8 2UZ-FE Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.2 Gasoline 1975 01 1977 01 0 0 4227 L6 2F Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.2 Diesel 1983 01 - 0 0 4228 L6 Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.2 Diesel 1984 01 - 0 0 4228 L6 Land Cruiser
Toyota, Passenger cars US Land Cruiser 2.4 Diesel 1987 01 - 0 0 2366 L4 Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.5 Gasoline 1996 01 1997 01 0 0 4477 L6 1FZ-FE Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.7 Gasoline 2006 01 - 0 0 4663 V8 2UZ-FE Land Cruiser
Toyota, Passenger cars US Land Cruiser 5.7 Gasoline 2008 01 - 0 0 5663 V8 3UR-FE Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.7 Gasoline 1999 01 2001 01 0 0 4663 V8 2UZ-FE Land Cruiser
Toyota, Passenger cars US Land Cruiser 3.4 Diesel 1984 01 - 0 0 3431 L4 3B Land Cruiser
Toyota, Passenger cars US Land Cruiser 3.4 Diesel 1982 01 - 0 0 3431 L4 3B Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.2 Gasoline 1978 01 1978 01 0 0 4227 L6 2F Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.2 Diesel 1986 01 - 0 0 4228 L6 Land Cruiser
Toyota, Passenger cars US Land Cruiser 3.9 Gasoline - 1972 01 0 0 3878 L6 FJ Land Cruiser
Toyota, Passenger cars US Land Cruiser 3.9 Gasoline 1973 01 1973 01 0 0 3878 L6 F Land Cruiser
Toyota, Passenger cars US Land Cruiser 4.2 Diesel 1985 01 - 0 0 4228 L6 Land Cruiser
Toyota, Passenger cars US Land Cruiser 3.4 Diesel 1985 01 - 0 0 3431 L4 3B Land Cruiser
Toyota, Passenger cars AO Land Cruiser 3 Diesel 1995 04 2000 07 103 140 2982 4 TD 1KZ-TE 90 Land Cruiser
Toyota, Passenger cars AO Land Cruiser 4.2 Diesel 1999 08 2001 08 123 167 4164 6 TD 90 4WD Land Cruiser
Toyota, Passenger cars AO Land Cruiser 3 Diesel 1990 01 1991 09 92 125 2982 4 TD 1KZ-T GX 90 Custom 4WD Land Cruiser
Toyota, Passenger cars AO Land Cruiser 3.5 Diesel 1990 01 1992 08 85 116 3470 5 1PZ 80 FRT-Top 4WD Land Cruiser
Toyota, Passenger cars AO Land Cruiser 2.4 Gasoline 1990 01 1993 05 77 105 2367 4 22R 80 4x4 Land Cruiser
Toyota, Passenger cars AO Land Cruiser 3.4 Diesel 1990 01 1996 12 70 95 3431 4 Diesel 80 4x4 Land Cruiser
Toyota, Passenger cars AO Land Cruiser 2.7 Gasoline 1995 04 2002 07 110 150 2694 4 90 Land Cruiser
Toyota, Passenger cars AO Land Cruiser 4.7 Gasoline 2002 08 - 175 238 4664 8 90 Land Cruiser
Toyota, Passenger cars AO Land Cruiser 3.4 Gasoline 2002 09 2004 08 136 185 3378 6 Land Cruiser
Toyota, Passenger cars AO Land Cruiser 4 Gasoline 2002 09 2004 08 179 243 3956 6 Land Cruiser
Toyota, Passenger cars AO Land Cruiser 2.5 Diesel 1984 11 1989 12 85 116 2498 4 TD 4x4 Land Cruiser
Toyota, Passenger cars AO Land Cruiser 4.5 Gasoline 1992 08 1998 01 215 292 4477 6 80 Land Cruiser
Toyota, Passenger cars AO Land Cruiser 4 Diesel 1997 01 2001 08 100 136 3980 6 TD 4x4 Land Cruiser
Toyota, Passenger cars AO Land Cruiser 2.7 Gasoline 2003 11 - 120 163 2694 4 2TR-FE Land Cruiser
Toyota, Passenger cars AO Land Cruiser 2.5 Diesel 1984 11 1989 12 85 116 2498 4 TD 4WD Land Cruiser
