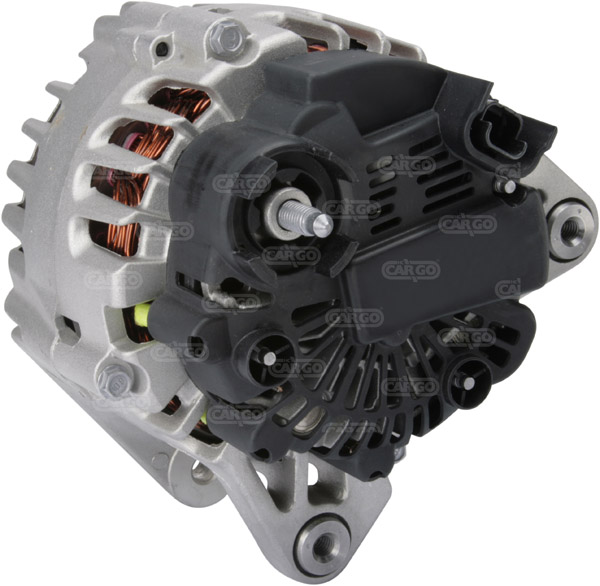

113249 - Alternator (113249)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 125,
Bracket Hole: 8.60, Belt. adj. bracket hole 8.60,
Width/Holder Arm: 13.80, Belt. adj. brackethole pos. 45,
Mount. Bracket Dist.: 61.20,
Pulley Dia.: 56.00,
Pulley Dist.: 32.50,
Grooves/Pulley: 6,
Radius: 90.00,
Radius: 90.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL55,
Blower: IF, Pulley SP/FW,
Total Length: 193.00

Electrical specifications (Alternator)
Voltage 14
Amp 125

Physical specifications (Alternator)
D Bracket hole 8.60
G Belt. adj. bracket hole 8.60
B Width/holder arm 13.80
E Belt. adj. brackethole pos. 45
C Mount. bracket dist. 61.20
H Pulley dia. 56.00
A Pulley dist. 32.50
i Grooves/pulley 6
j Radius 90.00
j Radius 90.00
k B+ position M8
n Rotation CR
o Regulator plug PL55
R Total length 193.00

Further information (Alternator)
Blower IF
Pulley SP/FW

Replacing
2542573 VALEO
2542573A VALEO
2542573C VALEO
2542573D VALEO
2542573E VALEO
7711134758 RENAULT
8200112065 RENAULT
8253975 VOLVO
sg12b055 VALEO

UNISTART Price: £212.15

Sorry, this item is out of stock.

The 113249 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 89 121 1783 4 16V F4P770 Estate Laguna
Renault, Passenger Car EU Laguna 2 Gasoline 2002 08 - 99 135 1998 4 16V F4R714 Estate Laguna
Renault, Passenger Car EU Laguna 2 Gasoline 2002 08 - 99 135 1998 4 16V F4R713 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 89 121 1783 4 16V F4P770 Hatchback Laguna
Renault, Passenger Car EU Laguna 2 Gasoline 2002 08 - 99 135 1998 4 16V F4R713 Estate Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 85 116 1783 4 16V F4P771 Hatchback Laguna
Renault, Passenger Car EU Laguna 2 Gasoline 2002 08 - 99 135 1998 4 16V F4R715 Estate Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 88 120 1783 4 16V F4P770 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 85 116 1783 4 16V F4P770 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 85 116 1783 4 16V F4P773 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 85 116 1783 4 16V F4P774 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 85 116 1783 4 16V F4P775 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 85 116 1783 4 16V F4P774 Estate Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 88 120 1783 4 16V F4P773 Estate Laguna
Renault, Passenger Car EU Laguna 2 Gasoline 2002 08 - 99 135 1998 4 16V F4R712 Estate Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 88 120 1783 4 16V F4P770 Estate Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 89 121 1783 4 16V F4P770 Estate Laguna
Renault, Passenger Car EU Laguna 2 Gasoline 2002 08 - 99 135 1998 4 16V F4R714 Estate Laguna
Renault, Passenger Car EU Laguna 2 Gasoline 2002 08 - 99 135 1998 4 16V F4R713 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 89 121 1783 4 16V F4P770 Hatchback Laguna
Renault, Passenger Car EU Laguna 2 Gasoline 2002 08 - 99 135 1998 4 16V F4R713 Estate Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 85 116 1783 4 16V F4P771 Hatchback Laguna
Renault, Passenger Car EU Laguna 2 Gasoline 2002 08 - 99 135 1998 4 16V F4R715 Estate Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 88 120 1783 4 16V F4P770 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 85 116 1783 4 16V F4P770 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 85 116 1783 4 16V F4P773 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 85 116 1783 4 16V F4P774 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 85 116 1783 4 16V F4P775 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 85 116 1783 4 16V F4P774 Estate Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 88 120 1783 4 16V F4P773 Estate Laguna
Renault, Passenger Car EU Laguna 2 Gasoline 2002 08 - 99 135 1998 4 16V F4R712 Estate Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 88 120 1783 4 16V F4P770 Estate Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 89 121 1783 4 16V F4P770 Estate Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 89 121 1783 4 16V F4P770 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 88 120 1783 4 16V F4P770 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 85 116 1783 4 16V F4P770 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 88 120 1783 4 16V F4P773 Estate Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 88 120 1783 4 16V F4P770 Estate Laguna
