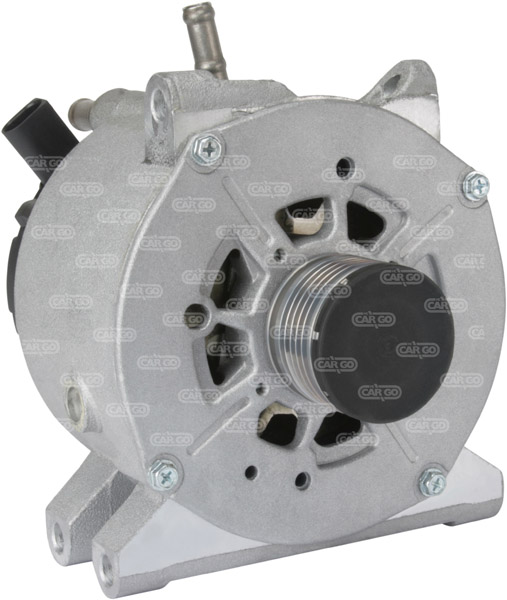

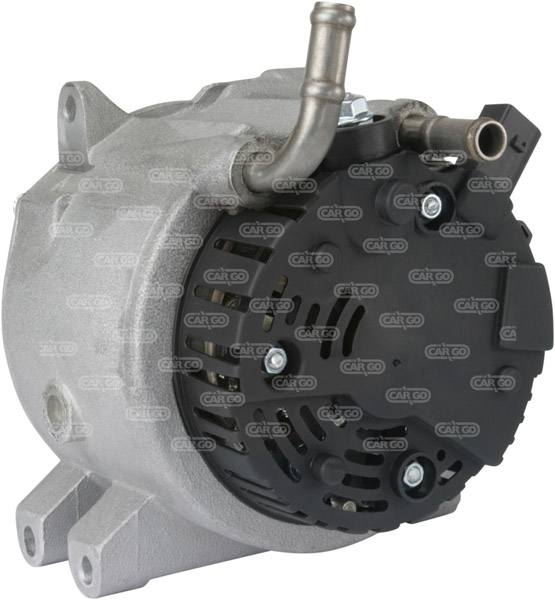

113251 - Alternator (113251)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 150,
Bracket Hole: 10.00, Belt. adj. bracket hole 8.00,
Width/Holder Arm: 151.50, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 43.00,
Pulley Dia.: 49.75,
Pulley Dist.: 30.00,
Grooves/Pulley: 5,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL61,
Blower: IF, Pulley SP/FW, Remarks Water cooled.
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 150 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.00 | |||
| G | Belt. adj. bracket hole 8.00 | |||
| B | Width/holder arm 151.50 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| C | Mount. bracket dist. 43.00 | |||
| H | Pulley dia. 49.75 | |||
| A | Pulley dist. 30.00 | |||
| i | Grooves/pulley 5 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL61 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | SP/FW | |||
| Remarks | Water cooled. | |||
Replacing | ||||
| 2542524 | VALEO | |||
| 2542524A | VALEO | |||
| 2542771 | VALEO | |||
| 2542771B | VALEO | |||
| 2542771D | VALEO | |||
| 6681540102 | MERCEDES BENZ | |||
| 6681540202 | MERCEDES BENZ | |||
| 6681540302 | MERCEDES BENZ | |||
| A6681540102 | MERCEDES BENZ | |||
| A6681540202 | MERCEDES BENZ | |||
UNISTART Price: £506.01
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mercedes-Benz, Passenger Car EU | 160 | 1.7 | Diesel | 2001 02 | 2004 08 | 55 | 75 | 1689 | 4 | CDi | OM668.940 | Hatchback | A 160 | |
| Mercedes-Benz, Passenger Car EU | Vaneo | 1.7 | Diesel | 2002 02 | - | 55 | 75 | 1689 | 4 | CDi | OM668.914 | MPV | Vaneo | |
| Mercedes-Benz, Passenger Car EU | 170 | 1.7 | Diesel | 2001 02 | 2004 08 | 70 | 95 | 1689 | 4 | CDi | OM668.942 | Hatchback | A 170 | |
| Mercedes-Benz, Passenger Car EU | 170 | 1.7 | Diesel | 1998 07 | 2001 02 | 66 | 90 | 1689 | 4 | CDi | OM668.940 | Hatchback | A 170 | |
| Mercedes-Benz, Passenger Car EU | 160 | 1.7 | Diesel | 2001 02 | 2004 08 | 55 | 75 | 1689 | 4 | CDi | OM668.940 | Hatchback | A 160 | |
| Mercedes-Benz, Passenger Car EU | Vaneo | 1.7 | Diesel | 2002 02 | - | 55 | 75 | 1689 | 4 | CDi | OM668.914 | MPV | Vaneo | |
| Mercedes-Benz, Passenger Car EU | 170 | 1.7 | Diesel | 2001 02 | 2004 08 | 70 | 95 | 1689 | 4 | CDi | OM668.942 | Hatchback | A 170 | |
| Mercedes-Benz, Passenger Car EU | 170 | 1.7 | Diesel | 1998 07 | 2001 02 | 66 | 90 | 1689 | 4 | CDi | OM668.940 | Hatchback | A 170 | |
| Mercedes-Benz, Passenger Car EU | 170 | 1.7 | Diesel | 1998 07 | 2001 02 | 66 | 90 | 1689 | 4 | CDi | OM668.940 | Hatchback | A 170 |
