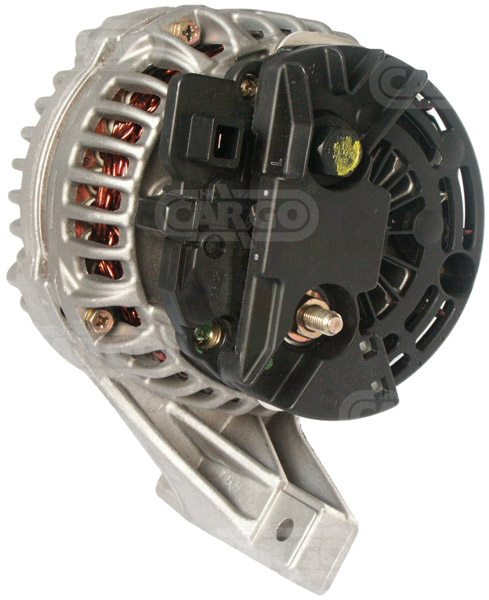

113272 - Alternator (113272)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 140,
Bracket Hole: 8.50, Belt. adj. bracket hole M8,
Width/Holder Arm: 30.00,
Mount. Bracket Dist.: 82.00,
Pulley Dia.: 56.00,
Pulley Dist.: 45.00,
Grooves/Pulley: 6,
Radius: 87.00,
B+ Position: M8,
Rotation: ACR,
Regulator Plug: or plug PL149,
Bracket Hole: 8.50,
Blower: IF, Pulley SP/FW,
Total Length: 191.00

Electrical specifications (Alternator)
Voltage 14
Amp 140

Physical specifications (Alternator)
D Bracket hole 8.50
G Belt. adj. bracket hole M8
B Width/holder arm 30.00
C Mount. bracket dist. 82.00
H Pulley dia. 56.00
A Pulley dist. 45.00
i Grooves/pulley 6
j Radius 87.00
k B+ position M8
n Rotation ACR
o Regulator plug PL149
D Bracket hole 8.50
R Total length 191.00

Further information (Alternator)
Blower IF
Pulley SP/FW

Replacing
0124525001 BOSCH
0124525014 BOSCH
0124525029 BOSCH
36050262 VOLVO
8602343 VOLVO
8602629 VOLVO
8602710 VOLVO
8622786 VOLVO
8637848 VOLVO
8676489 VOLVO

UNISTART Price: £168.24

Sorry, this item is out of stock.

The 113272 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Volvo, Passenger Car EU S40 2 Gasoline 1995 07 2003 12 100 136 1948 4 16V B4204S2 S40
Volvo, Passenger Car EU S40 1.9 Gasoline 1997 05 2000 07 147 200 1855 4 B4194T2 T4 S40
Volvo, Passenger Car EU S80 2.5 Diesel 1999 01 2006 07 103 140 2461 5 TDi D5252T S80
Volvo, Passenger Car EU S80 2.9 Gasoline 1998 05 2006 07 150 204 2922 6 24V B6304S3 S80
Volvo, Passenger Car EU S80 2.4 Gasoline 2000 06 2006 07 147 200 2435 5 Turbo B5244T3 S80
Volvo, Passenger Car EU V70 2.4 Diesel 2001 08 - 120 163 2401 5 Diesel D5244T5 Estate D5 V70
Volvo, Passenger Car EU S80 3 Gasoline 2001 06 2006 07 200 272 2922 6 B6294T T6 S80
Volvo, Passenger Car EU S80 2.4 Diesel 2001 10 2006 07 120 163 2401 5 Diesel D5244T2 S80
Volvo, Passenger Car EU V70 2.3 Gasoline 2000 03 - 184 250 2319 5 B5234T3 Estate T5 V70
Volvo, Passenger Car EU V70 2.4 Gasoline 2000 03 - 147 200 2435 5 Turbo B5244T3 Estate V70
Volvo, Passenger Car EU S80 2.4 Gasoline 2000 04 2003 09 147 200 2435 5 B5244T3 T5 AWD S80
Volvo, Passenger Car EU V70 2.4 Diesel 2005 12 - 136 185 2401 5 Diesel D5244T4 Estate D5 V70
Volvo, Passenger Car EU S60 2.5 Gasoline 2004 02 - 154 210 2521 5 Turbo B5254T2 S60
Volvo, Passenger Car EU V70 2.5 Gasoline 2004 04 - 154 209 2521 5 Turbo B5254T2 Estate V70
Volvo, Passenger Car EU S70 2.5 Diesel 1997 01 2000 11 103 140 2461 5 TDi D5252T S70
Volvo, Passenger Car EU V70 2.5 Diesel 1997 01 2000 05 103 140 2461 5 TDi D5252T Estate V70
Volvo, Passenger Car EU V70 2.4 Gasoline 2000 03 - 103 140 2435 5 B5244S2 Estate V70
Volvo, Passenger Car EU S40 2 Gasoline 2000 07 2003 12 147 200 1948 4 Turbo B4204T5 T4 S40
Volvo, Passenger Car EU S60 2.4 Gasoline 2000 11 - 103 140 2435 5 B5244S2 S60
Volvo, Passenger Car EU V70 2.4 Diesel 2001 09 - 103 140 2435 5 BiFuel B5244SG2 Estate V70
Volvo, Passenger Car EU XC 3 Gasoline 2002 10 - 200 272 2922 6 Turbo B6294T SUV XC90
Volvo, Passenger Car EU XC 2.4 Diesel 2002 10 - 120 163 2401 5 Diesel D5244T SUV XC90
Volvo, Passenger Car EU S60 2.4 Gasoline/gas 2002 06 - 103 140 2435 5 BiFuel B5244SG S60
Volvo, Passenger Car EU S60 2.5 Gasoline 2003 03 - 221 300 2521 5 Turbo B5254T4 AWD S60 R
Volvo, Passenger Car EU S60 2.5 Gasoline 2004 04 - 154 210 2521 5 Turbo B5254T2 AWD S60
Volvo, Passenger Car EU V70 2.4 Diesel 2003 03 - 120 163 2401 5 Diesel D5244T5 Estate D5 AWD V70
Volvo, Passenger Car EU S80 2.4 Bi-Fuel 2001 09 2006 07 103 140 2435 5 B5244SG LPG S80
Volvo, Passenger Car EU S80 2.8 Gasoline 1998 05 2006 07 200 272 2783 6 B6284T T6 S80
Volvo, Passenger Car EU S80 2 Gasoline 1998 06 2006 07 166 226 1984 5 Turbo B5204T3 S80
Volvo, Passenger Car EU S80 2.4 Gasoline 1999 01 2006 07 103 140 2435 5 B5244S2 S80
Volvo, Passenger Car EU V40 2 Gasoline 1997 10 2000 07 118 160 1948 4 Turbo 16V B4204T Estate V40
Volvo, Passenger Car EU XC 2.4 Gasoline 2000 03 2002 09 147 200 2435 5 Turbo B5244T3 SUV AWD XC70
Volvo, Passenger Car EU V70 2.3 Gasoline 2000 03 - 184 250 2319 5 B5234T4 Estate T5 V70
Volvo, Passenger Car EU V70 2.5 Diesel 2000 03 - 103 140 2461 5 TDi D5252T Estate V70
Volvo, Passenger Car EU V70 2.4 Gasoline 2000 03 - 125 170 2435 5 B5244S Estate V70
Volvo, Passenger Car EU V40 2 Gasoline 2001 06 2004 06 120 163 1948 4 Turbo B4204T3 Estate V40
Volvo, Passenger Car EU XC 2.4 Diesel 2002 10 - 120 163 2401 5 Diesel D5244T5 SUV XC90
Volvo, Passenger Car EU XC 2.5 Gasoline 2002 09 - 154 209 2521 5 Turbo B5254T2 SUV AWD XC70
Volvo, Passenger Car EU S80 2.5 Gasoline 2003 07 2006 07 154 210 2521 5 Turbo B5254T2 AWD S80
Volvo, Passenger Car EU S60 2.4 Diesel 2001 12 - 96 130 2401 5 Diesel D5244T2 S60
Volvo, Passenger Car EU S40 2 Gasoline 2000 07 2001 06 121 165 1948 4 Turbo B4204T2 S40
Volvo, Passenger Car EU V40 2 Gasoline 2000 07 2004 06 147 200 1948 4 Turbo B4204T5 Estate T4 V40
Volvo, Passenger Car EU V40 2 Gasoline 2000 07 2004 06 121 165 1948 4 Turbo B4204T2 Estate V40
Volvo, Passenger Car EU S60 2.4 Gasoline 2000 11 - 147 200 2435 5 Turbo B5244T3 S60
Volvo, Passenger Car EU V70 2.4 Gasoline 2001 09 - 147 200 2435 5 Turbo B5244T3 Estate AWD V70
Volvo, Passenger Car EU XC 2.5 Gasoline 2002 10 - 154 209 2521 5 Turbo B5254T2 SUV XC90
Volvo, Passenger Car EU XC 2.4 Diesel 2002 09 - 120 163 2401 5 Diesel D5244T SUV AWD XC70
Volvo, Passenger Car EU XC 2.4 Diesel 2005 12 - 136 185 2401 5 Diesel D5244T4 SUV D5 AWD XC70
Volvo, Passenger Car EU V40 2 Gasoline 1995 07 2004 06 100 136 1948 4 16V B4204S2 Estate V40
Volvo, Passenger Car EU V70 2 Gasoline 1997 01 2000 03 155 211 1984 5 Turbo B5204T Estate V70
Volvo, Passenger Car EU S80 2.9 Gasoline 1999 03 2006 07 147 200 2922 6 B6294S S80
Volvo, Passenger Car EU S80 2 Gasoline 1998 06 2006 07 120 163 1984 5 B5204T4 S80
Volvo, Passenger Car EU S80 2.4 Gasoline 1999 01 2006 07 125 170 2435 5 B5244S S80
Volvo, Passenger Car EU S40 2 Gasoline 1997 10 2000 07 118 160 1948 4 Turbo B4204T S40
Volvo, Passenger Car EU V70 2.4 Diesel 1999 08 2000 03 103 140 2435 5 BiFuel B5244SG Estate V70
Volvo, Passenger Car EU S80 2.5 Gasoline 2003 03 2006 07 154 210 2521 5 Turbo B5254T2 S80
Volvo, Passenger Car EU V70 2.4 Gasoline 2004 04 - 191 260 2401 5 Turbo B5244T5 Estate T5 V70
Volvo, Passenger Car EU S60 2.4 Gasoline 2004 04 - 191 260 2401 5 B5244T5 T5 S60
Volvo, Passenger Car EU V70 2.4 Diesel 2001 12 - 96 131 2401 5 Diesel D5244T2 Estate V70
Volvo, Passenger Car EU V70 2.5 Gasoline 2003 03 - 221 300 2521 5 Turbo B5254T4 Estate R AWD V70
Volvo, Passenger Car EU S60 2.4 Gasoline 2000 11 - 125 170 2435 5 B5244S S60
Volvo, Passenger Car EU S60 2.3 Gasoline 2000 11 - 184 250 2319 5 B5234T3 T5 S60
Volvo, Passenger Car EU S60 2.4 Diesel 2001 07 - 120 163 2401 5 Diesel D5244T S60
Volvo, Passenger Car EU V70 2 Gasoline 2001 07 - 132 180 1984 5 Turbo B5204T5 Estate V70
Volvo, Passenger Car EU V70 2.5 Gasoline 2002 09 - 154 209 2521 5 Turbo B5254T2 Estate AWD V70
Volvo, Passenger Car EU V70 2.5 Gasoline 2002 09 2004 12 155 211 2521 5 B5254T2 Estate AWD V70
Volvo, Passenger cars AO V70 2.4 Gasoline 2000 03 2003 09 121 165 2435 5 Estate V70
Volvo, Passenger cars AO S80 2.4 Gasoline 2004 06 2006 07 132 179 2435 5 B5244T4 LTP S80
Volvo, Passenger cars AO S60 2.4 Gasoline 2005 01 2006 10 132 180 2435 5 B5244T4 S60
Volvo, Passenger cars AO V70 2.5 Gasoline 2002 12 - 221 300 2521 5 B5254T4 Estate R Sport V70
Volvo, Passenger cars AO S60 2.3 Gasoline 2000 07 2002 09 195 265 2319 5 B5234T7 T5 S60
Volvo, Passenger cars AO S60 2.4 Gasoline 2001 01 2010 04 142 193 2435 5 Turbo B5244T S60
Volvo, Passenger cars AO S60 2.4 Gasoline 2004 02 - 191 260 2401 5 B5244T5 AWD S 60
Volvo, Passenger cars US S60 2.5 Gasoline 2003 09 2010 04 224 300 2521 5 B5254T4 AWD S60
