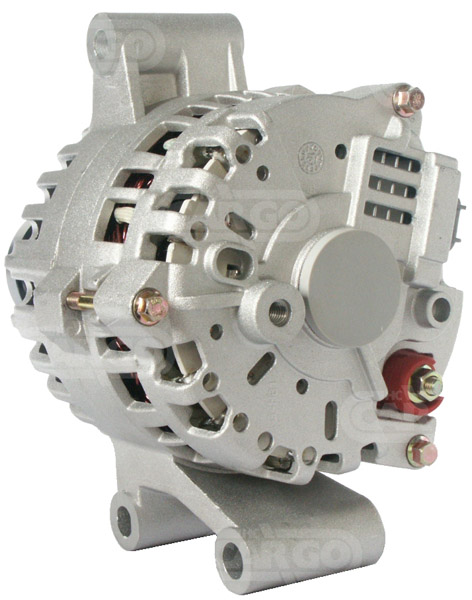

113285 - Alternator (113285)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.

Voltage: 14,
Amp: 75,
Bracket Hole: 12.75, Belt. adj. bracket hole 11.90/12.40,
Width/Holder Arm: 55.25, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 74.50,
Pulley Dia.: 59.00,
Pulley Dist.: 38.60,
Grooves/Pulley: 7,
Radius: 90.00,
Radius: 90.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL81,
Bracket Hole: 12.75,
Blower: IF, Pulley SP/FW, Remarks w/ single pulley: HC-CARGO 113544.,
Total Length: 218.50

Electrical specifications (Alternator)
Voltage	14
Amp	75

Physical specifications (Alternator)
D	Bracket hole 12.75
G	Belt. adj. bracket hole 11.90/12.40
B	Width/holder arm 55.25
E	Belt. adj. brackethole pos. 60
C	Mount. bracket dist. 74.50
H	Pulley dia. 59.00
A	Pulley dist. 38.60
i	Grooves/pulley 7
j	Radius 90.00
j	Radius 90.00
k	B+ position M6
n	Rotation CR
o	Regulator plug PL81
D	Bracket hole 12.75
R	Total length 218.50

Further information (Alternator)
Blower	IF
Pulley	SP/FW
Remarks	w/ single pulley: HC-CARGO 113544.

Replacing
0124315019	BOSCH
0124315027	BOSCH
0124315100	BOSCH
2C3U10300BB	FORD
4069776	FORD
4098414	FORD
4332279	FORD
B120416351	BOSCH
yc1t10300bb	FORD
yc1t10300bc	FORD

UNISTART Price: £126.80
