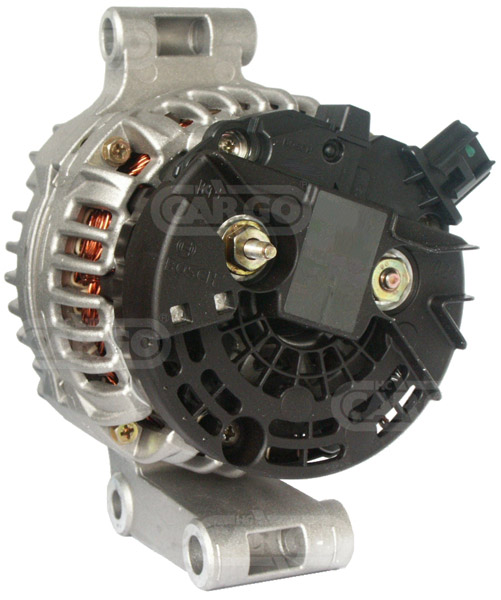

113298 - Alternator (113298)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 105,
Bracket Hole: 10.33, Belt. adj. bracket hole 10.75,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 75.00,
Pulley Dia.: 53.00,
Pulley Dist.: 40.00,
Grooves/Pulley: 6,
Radius: 90.00,
Radius: 90.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL81,
Bracket Hole: 12.95,
Blower: IF, Pulley SP,
Total Length: 179.50

Electrical specifications (Alternator)
Voltage 14
Amp 105

Physical specifications (Alternator)
D Bracket hole 10.33
G Belt. adj. bracket hole 10.75
B Width/holder arm 56.00
E Belt. adj. brackethole pos. 60
C Mount. bracket dist. 75.00
H Pulley dia. 53.00
A Pulley dist. 40.00
i Grooves/pulley 6
j Radius 90.00
j Radius 90.00
k B+ position M6
n Rotation CR
o Regulator plug PL81
D Bracket hole 12.95
R Total length 179.50

Further information (Alternator)
Blower IF
Pulley SP

Replacing
0124415016 BOSCH
0124415030 BOSCH
0124415032 BOSCH

UNISTART Price: £143.56

Sorry, this item is out of stock.

The 113298 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 63 86 1998 4 Diesel Di F3FA Bus Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 55 75 1998 4 Diesel Di D3FA Platform / Chassis Transit
Ford, Passenger Car EU Transit 2 Diesel 2002 08 - 92 125 1998 4 TDCi FIFA Van Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 55 75 1998 4 Diesel Di D3FA Van Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 74 100 1998 4 Diesel Di ABFA Van Transit
Ford, Passenger Car EU Transit 2 Diesel 2002 08 - 92 125 1998 4 TDCi FIFA Bus Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 63 86 1998 4 Diesel Di F3FA Van Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 63 86 1998 4 Diesel Di F3FA Platform / Chassis Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 55 75 1998 4 Diesel Di D3FA Bus Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 74 100 1998 4 Diesel Di ABFA Bus Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 74 100 1998 4 Diesel Di ABFA Platform / Chassis Transit
Ford, Passenger Car EU Transit 2 Diesel 2002 08 - 92 125 1998 4 TDCi FIFA Platform / Chassis Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 63 86 1998 4 Diesel Di F3FA Bus Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 55 75 1998 4 Diesel Di D3FA Platform / Chassis Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 55 75 1998 4 Diesel Di D3FA Van Transit
Ford, Passenger Car EU Transit 2 Diesel 2002 08 - 92 125 1998 4 TDCi FIFA Van Transit
Ford, Passenger Car EU Transit 2 Diesel 2002 08 - 92 125 1998 4 TDCi FIFA Bus Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 74 100 1998 4 Diesel Di ABFA Van Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 63 86 1998 4 Diesel Di F3FA Van Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 63 86 1998 4 Diesel Di F3FA Platform / Chassis Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 55 75 1998 4 Diesel Di D3FA Bus Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 74 100 1998 4 Diesel Di ABFA Bus Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 74 100 1998 4 Diesel Di ABFA Platform / Chassis Transit
Ford, Passenger Car EU Transit 2 Diesel 2002 08 - 92 125 1998 4 TDCi FIFA Platform / Chassis Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 63 86 1998 4 Diesel Di F3FA Bus Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 55 75 1998 4 Diesel Di D3FA Platform / Chassis Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 55 75 1998 4 Diesel Di D3FA Van Transit
Ford, Passenger Car EU Transit 2 Diesel 2002 08 - 92 125 1998 4 TDCi FIFA Van Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 74 100 1998 4 Diesel Di ABFA Van Transit
Ford, Passenger Car EU Transit 2 Diesel 2002 08 - 92 125 1998 4 TDCi FIFA Bus Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 63 86 1998 4 Diesel Di F3FA Van Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 63 86 1998 4 Diesel Di F3FA Platform / Chassis Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 55 75 1998 4 Diesel Di D3FA Bus Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 74 100 1998 4 Diesel Di ABFA Bus Transit
Ford, Passenger Car EU Transit 2 Diesel 2000 08 - 74 100 1998 4 Diesel Di ABFA Platform / Chassis Transit
Ford, Passenger Car EU Transit 2 Diesel 2002 08 - 92 125 1998 4 TDCi FIFA Platform / Chassis Transit

TEST & REPAIR SERVICE

Unistart has its own workshops for remanufacturing with the latest testing equipment. This enables us to provide an excellent (and free) technical helpline and aftersales support and backup service.

You can speak to one of our friendly and knowledgeable technicians who will be glad to Help with any enquiries no matter how large or small. Call us on 020 8 983 9969.
