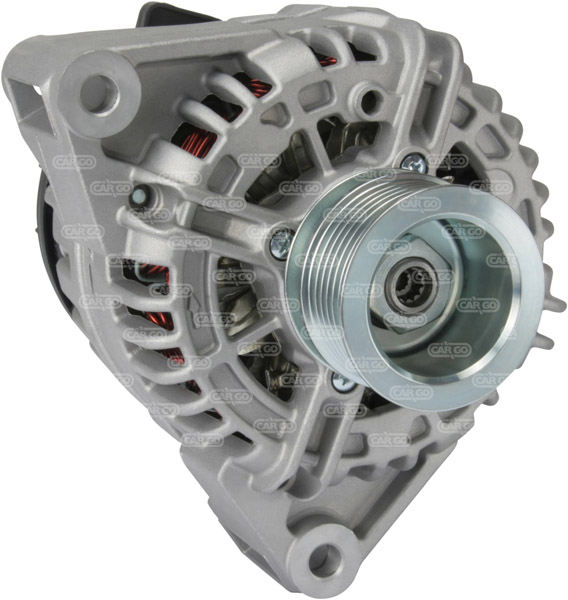

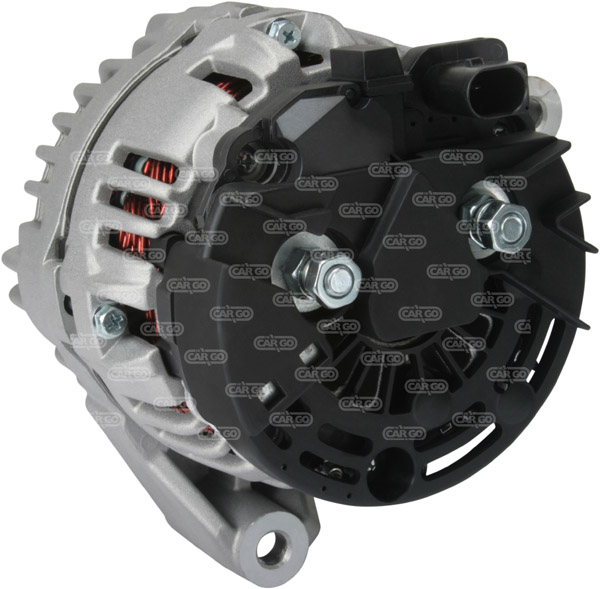

113301 - Alternator (113301)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 90,
Bracket Hole: 10.30, Belt. adj. bracket hole 10.20,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 50,
Pulley Dia.: 48.00,
Pulley Dist.: 91.50,
Grooves/Pulley: 6,
Radius: 90.00,
Radius: 90.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL103,
Blower: IF, Pulley SP,
Total Length: 183.00

Electrical specifications (Alternator)
Voltage 14
Amp 90

Physical specifications (Alternator)
D Bracket hole 10.30
G Belt. adj. bracket hole 10.20
B Width/holder arm 56.00
E Belt. adj. brackethole pos. 50
H Pulley dia. 48.00
A Pulley dist. 91.50
i Grooves/pulley 6
j Radius 90.00
j Radius 90.00
k B+ position M8
n Rotation CR
o Regulator plug PL103
R Total length 183.00

Further information (Alternator)
Blower IF
Pulley SP

Replacing
0121540302 MERCEDES BENZ
0124325040 BOSCH
0124325045 BOSCH
A0121540302 MERCEDES BENZ

UNISTART Price: £216.15

Sorry, this item is out of stock.

The 113301 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Mercedes-Benz, Passenger Car EU 230 2.3 Gasoline 2000 06 2002 06 145 197 2295 4 M111.982 Coupe Kompressor 230
Mercedes-Benz, Passenger Car EU 180 2 Gasoline 2000 09 2001 03 95 129 1998 4 M111.952 Estate C 180
Mercedes-Benz, Passenger Car EU 200 2 Gasoline 2000 08 2002 03 120 163 1998 4 M111.957 Kompressor E 200
Mercedes-Benz, Passenger Car EU 230 2.3 Gasoline 2000 06 2002 03 145 197 2295 4 M111.982 Convertible Kompressor CLK 230
Mercedes-Benz, Passenger Car EU 200 2 Gasoline 2000 08 2003 03 120 163 1998 4 M111.957 Estate Kompressor E 200
Mercedes-Benz, Passenger Car EU 230 2.3 Gasoline 2000 06 2002 06 145 197 2295 4 M111.982 Coupe Kompressor 230
Mercedes-Benz, Passenger Car EU 180 2 Gasoline 2000 09 2001 03 95 129 1998 4 M111.952 Estate C 180
Mercedes-Benz, Passenger Car EU 200 2 Gasoline 2000 08 2002 03 120 163 1998 4 M111.957 Kompressor E 200
Mercedes-Benz, Passenger Car EU 230 2.3 Gasoline 2000 06 2002 03 145 197 2295 4 M111.982 Convertible Kompressor CLK 230
Mercedes-Benz, Passenger Car EU 200 2 Gasoline 2000 08 2003 03 120 163 1998 4 M111.957 Estate Kompressor E 200
Mercedes-Benz, Passenger Car EU 230 2.3 Gasoline 2000 06 2002 06 145 197 2295 4 M111.982 Coupe Kompressor 230
Mercedes-Benz, Passenger Car EU 200 2 Gasoline 2000 08 2002 03 120 163 1998 4 M111.957 Kompressor E 200
Mercedes-Benz, Passenger Car EU 200 2 Gasoline 2000 08 2003 03 120 163 1998 4 M111.957 Estate Kompressor E 200
