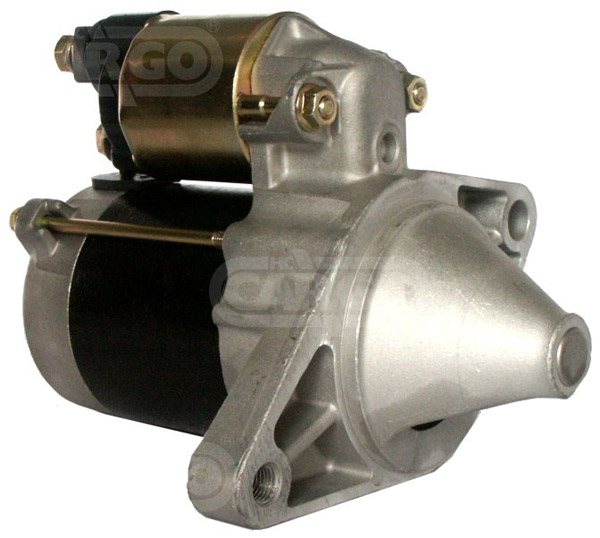

113313 - Starter (113313)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12, kW 0.7, Mount. flange 73.90, Drive dist. 11.50, Dist./back 135.00, Dist./front 47.25, No. of teeth 8, B+ M8, Gear type DD, Dist. 131.35,
Rotation: CR, No./mount. holes 2 (1),
Drive Type: Steel,
Total Length: 187.00, Oil sealed No, Waterproof No
Electrical specifications (Starter) | ||||
| Voltage | 12 | |||
| kW | 0.7 | |||
Physical specifications (Starter) | ||||
| A | Mount. flange 73.90 | |||
| B | Drive dist. 11.50 | |||
| F | Dist./back 135.00 | |||
| G | Dist./front 47.25 | |||
| H | No. of teeth 8 | |||
| I | B+ M8 | |||
| N | Gear type DD | |||
| O | Dist. 131.35 | |||
| P | Rotation CR | |||
| R | Total length 187.00 | |||
Further information (Starter) | ||||
| No./mount. | holes 2 (1) | |||
| Drive | type Steel | |||
| Oil | sealed No | |||
| Waterproof | No | |||
Replacing | ||||
| 228000-8350 | DENSO | |||
| 228000-9530 | DENSO | |||
| 28100-0J010 | TOYOTA | |||
| 28100-23020 | TOYOTA | |||
UNISTART Price: £107.91
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Toyota, Passenger Car EU | Yaris | 1 | Gasoline | 2003 03 | - | 48 | 65 | 998 | 4 | 16V | 1SZ-FE | Hatchback | Yaris | |
| Toyota, Passenger Car EU | Yaris | 1 | Gasoline | 1999 04 | - | 50 | 68 | 998 | 4 | i | 1SZ-FE | Hatchback | Yaris | |
| Toyota, Passenger Car EU | Yaris | 1.3 | Gasoline | 2002 04 | - | 64 | 87 | 1298 | 4 | 2SZ-FE | Hatchback | Yaris | ||
| Toyota, Passenger Car EU | Yaris | 1 | Gasoline | 2003 03 | - | 48 | 65 | 998 | 4 | 16V | 1SZ-FE | Hatchback | Yaris | |
| Toyota, Passenger Car EU | Yaris | 1 | Gasoline | 1999 04 | - | 50 | 68 | 998 | 4 | i | 1SZ-FE | Hatchback | Yaris | |
| Toyota, Passenger Car EU | Yaris | 1.3 | Gasoline | 2002 04 | - | 64 | 87 | 1298 | 4 | 2SZ-FE | Hatchback | Yaris | ||
| Toyota, Passenger Car EU | Yaris | 1 | Gasoline | 1999 04 | - | 50 | 68 | 998 | 4 | i | 1SZ-FE | Hatchback | Yaris | |
| Toyota, Passenger Car EU | Yaris | 1.3 | Gasoline | 2002 04 | - | 64 | 87 | 1298 | 4 | 2SZ-FE | Hatchback | Yaris | ||
| Toyota, Passenger Car EU | Yaris | 1 | Gasoline | 2003 03 | - | 48 | 65 | 998 | 4 | 16V | 1SZ-FE | Hatchback | Yaris | |
| Toyota, Passenger Car EU | Yaris | 1 | Gasoline | 1999 04 | - | 50 | 68 | 998 | 4 | i | 1SZ-FE | Hatchback | Yaris | |
| Toyota, Passenger Car EU | Yaris | 1.3 | Gasoline | 2002 04 | - | 64 | 87 | 1298 | 4 | 2SZ-FE | Hatchback | Yaris |
