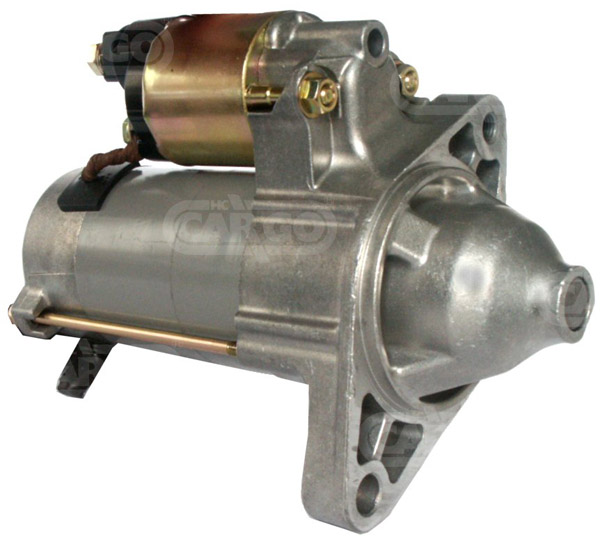

113314 - Starter (113314)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12, kW 1.0, Mount. flange 74.00, Drive dist. 13.75, Dist./back 155.30, Dist./front 48.00, No. of teeth 9, B+ M8, Gear type GR, Dist. 120.30,
Rotation: CR, No./mount. holes 2 (1),
Drive Type: Steel,
Total Length: 204.00, Oil sealed No, Waterproof No
Electrical specifications (Starter) | ||||
| Voltage | 12 | |||
| kW | 1.0 | |||
Physical specifications (Starter) | ||||
| A | Mount. flange 74.00 | |||
| B | Drive dist. 13.75 | |||
| F | Dist./back 155.30 | |||
| G | Dist./front 48.00 | |||
| H | No. of teeth 9 | |||
| I | B+ M8 | |||
| N | Gear type GR | |||
| O | Dist. 120.30 | |||
| P | Rotation CR | |||
| R | Total length 204.00 | |||
Further information (Starter) | ||||
| No./mount. | holes 2 (1) | |||
| Drive | type Steel | |||
| Oil | sealed No | |||
| Waterproof | No | |||
Replacing | ||||
| 228000-8540 | DENSO | |||
| 228000-8541 | DENSO | |||
| 228000-8542 | DENSO | |||
| 228000-8550 | DENSO | |||
| 228000-8552 | DENSO | |||
| 28100-21020 | TOYOTA | |||
| 28100-21021 | TOYOTA | |||
| 28100-21022 | TOYOTA | |||
| 28100-21030 | TOYOTA | |||
| 28100-21031 | TOYOTA | |||
UNISTART Price: £102.83
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Toyota, Passenger Car EU | Yaris | 1.5 | Gasoline | 2006 03 | - | 80 | 109 | 1497 | 4 | 1NZ-FE | Yaris | |||
| Toyota, Passenger Car EU | Yaris | 1.5 | Gasoline | 2003 01 | - | 77 | 105 | 1497 | 4 | TS | 1NZ-FE | Hatchback | Yaris | |
| Toyota, Passenger Car EU | Yaris | 1.5 | Gasoline | 2001 04 | - | 78 | 106 | 1497 | 4 | i 16V | 1NZ-FE | Hatchback | Yaris | |
| Toyota, Passenger Car EU | Yaris | 1.3 | Gasoline | 1999 11 | - | 63 | 86 | 1299 | 4 | 16V | 2NZ-FE | Hatchback | Yaris | |
| Toyota, Passenger Car EU | Yaris | 1.3 | Gasoline | 1999 08 | - | 62 | 84 | 1299 | 4 | 2NZ-FE | MPV | Yaris Verso | ||
| Toyota, Passenger Car EU | Yaris | 1.3 | Gasoline | 1999 08 | - | 63 | 86 | 1299 | 4 | 2NZ-FE | MPV | Yaris Verso | ||
| Toyota, Passenger Car EU | Yaris | 1.5 | Gasoline | 2003 03 | 2005 07 | 110 | 150 | 1497 | 4 | VVTi TS | 1NZ-FE | Hatchback | Yaris | |
| Toyota, Passenger Car EU | Yaris | 1.5 | Gasoline | 2000 03 | 2005 09 | 78 | 106 | 1497 | 4 | 1NZ-FE | MPV | 4WD | Yaris Verso | |
| Toyota, Passenger Car EU | Yaris | 1.5 | Gasoline | 2000 03 | - | 78 | 106 | 1497 | 4 | 16V | 1NZ-FE | MPV | Yaris Verso | |
| Toyota, Passenger Car EU | Yaris | 1.5 | Gasoline | 2003 05 | - | 77 | 105 | 1497 | 4 | TS | 1NZ-FE | MPV | Yaris Verso | |
| Toyota, Passenger cars AO | Corolla | 1.5 | Gasoline | 2004 06 | - | 80 | 109 | 1497 | 4 | 1NZ-FE | RC | Corolla | ||
| Toyota, Passenger cars AO | Echo | 1.5 | Gasoline | 1999 04 | 2005 08 | 78 | 106 | 1497 | 4 | VVTi | 1NZ-FE | Echo |
