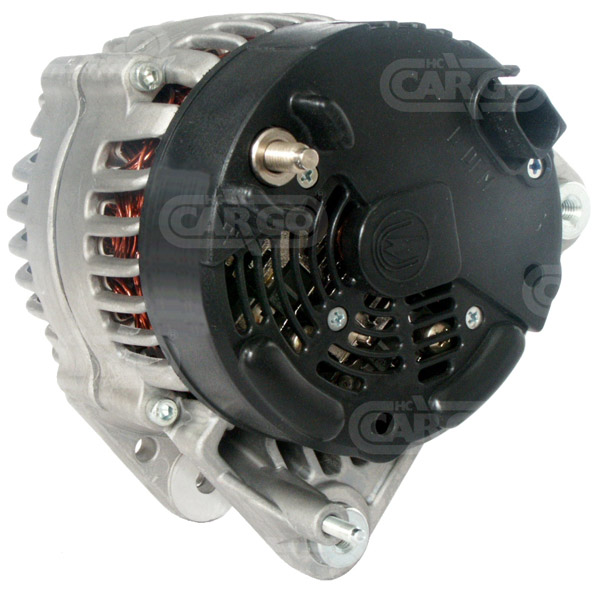

113340 - Alternator (113340)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 70,
Bracket Hole: 8.55, Belt. adj. bracket hole 8.70,
Width/Holder Arm: 14.00, Belt. adj. brackethole pos. 45,
Mount. Bracket Dist.: 62.00,
Pulley Dia.: 56.00,
Pulley Dist.: 39.00,
Grooves/Pulley: 6,
Radius: 86.00,
Radius: 90.50,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL61,
Blower: IF, Pulley SP/FW,
Total Length: 192.50

Electrical specifications (Alternator)
Voltage 14
Amp 70

Physical specifications (Alternator)
D Bracket hole 8.55
G Belt. adj. bracket hole 8.70
B Width/holder arm 14.00
E Belt. adj. brackethole pos. 45
C Mount. bracket dist. 62.00
H Pulley dia. 56.00
A Pulley dist. 39.00
i Grooves/pulley 6
j Radius 86.00
j Radius 90.50
k B+ position M8
n Rotation CR
o Regulator plug PL61
R Total length 192.50

Further information (Alternator)
Blower IF
Pulley SP/FW

Replacing
0124315001 BOSCH
0124315032 BOSCH
038903023 VOLKSWAGEN
038903023k VOLKSWAGEN
038903023q VOLKSWAGEN
038903024b VOLKSWAGEN
2542244 VALEO
9517403 MAGNETON (PAL/SKODA)
aak5547 ISKRA
SG8B027 VALEO

UNISTART Price: £163.35

Sorry, this item is out of stock.

The 113340 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
VW, Passenger Car EU Polo 1.9 Diesel 1997 05 2001 09 66 90 1896 4 TDi AGR Estate Polo
VW, Passenger Car EU Bora 1.9 Diesel 1999 05 2001 06 81 110 1896 4 TDi AHF Estate Bora
VW, Passenger Car EU Golf 1.9 Diesel 1999 05 - 50 68 1896 4 SDi AGP Estate Golf IV
VW, Passenger Car EU Bora 1.9 Diesel 2000 11 2005 05 96 130 1896 4 TDi ASZ Estate Bora
VW, Passenger Car EU Polo 1.9 Diesel 2001 10 - 74 101 1896 4 TDi AXR Hatchback Polo
VW, Passenger Car EU Bora 1.9 Diesel 2001 05 2005 05 110 150 1896 4 TDi ARL Estate Bora
VW, Passenger Car EU Polo 1.9 Diesel 1999 08 2001 09 50 68 1896 4 SDi AQM Polo
VW, Passenger Car EU Golf 2.8 Gasoline 2000 05 - 150 204 2792 6 V6 AUE Estate 4 Motion Golf IV
VW, Passenger Car EU Golf 1.9 Diesel 2000 05 2005 06 110 150 1896 4 TDi ARL Hatchback Golf IV
VW, Passenger Car EU Golf 1.9 Diesel 2000 09 - 74 101 1896 4 TDi AXR Estate Golf IV
VW, Passenger Car EU Bora 1.9 Diesel 2000 09 2005 05 74 101 1896 4 TDi AXR Estate Bora
VW, Passenger Car EU Golf 2.3 Gasoline 2000 10 - 125 170 2324 5 V5 AQN Estate Golf IV
VW, Passenger Car EU Caddy 1.9 Diesel 1997 09 2004 01 66 90 1896 4 TDi ALH Van Caddy
VW, Passenger Car EU Polo 1.9 Diesel 1999 10 2001 09 66 90 1896 4 TDi ALH Polo
VW, Passenger Car EU Bora 1.9 Diesel 1998 10 2001 06 66 90 1896 4 TDi AGR Bora
VW, Passenger Car EU Bora 1.9 Diesel 1999 02 2001 06 66 90 1896 4 TDi ALH 4 Motion Bora
VW, Passenger Car EU Bora 1.9 Diesel 1999 02 2001 06 66 90 1896 4 TDi AGR 4 Motion Bora
VW, Passenger Car EU Bora 2.3 Gasoline 1999 05 2000 10 110 150 2324 5 V5 AGZ Estate 4 Motion Bora
VW, Passenger Car EU Golf 1.9 Diesel 1999 05 2005 05 66 90 1896 4 TDi AGR Estate 4 Motion Golf IV
VW, Passenger Car EU Polo 1.9 Diesel 1999 08 2001 09 50 68 1896 4 SDi AGP Estate Polo
VW, Passenger Car EU Caddy 1.9 Diesel 1995 11 2004 01 47 64 1896 4 SDi AYQ Estate Caddy
VW, Passenger Car EU Golf 2.3 Gasoline 2000 10 - 125 170 2324 5 V5 AQN Estate 4 Motion Golf IV
VW, Passenger Car EU Polo 1.9 Diesel 2003 11 - 96 130 1896 4 TDi ASZ Hatchback Polo
VW, Passenger Car EU Polo 1.9 Diesel 2003 11 - 96 130 1896 4 TDi BLT Hatchback Polo
VW, Passenger Car EU Caddy 1.4 Gasoline 2000 08 2004 01 55 75 1390 4 AUA Van Caddy
VW, Passenger Car EU Bora 2.3 Gasoline 2000 10 2005 05 125 170 2324 5 V5 AQN 4 Motion Bora
VW, Passenger Car EU Polo 1.9 Diesel 2001 10 - 47 64 1896 4 SDi ASY Hatchback Polo
VW, Passenger Car EU Beetle 1.9 Diesel 2003 07 2010 09 74 101 1896 4 TDi BEW Hatchback New Beetle
VW, Passenger Car EU Golf 1.9 Diesel 2000 11 2005 06 96 130 1896 4 TDi ASZ Hatchback 4 Motion Golf IV
VW, Passenger Car EU Golf 1.9 Diesel 2000 11 - 96 130 1896 4 TDi ASZ Estate 4 Motion Golf IV
VW, Passenger Car EU Bora 1.9 Diesel 2000 11 2005 05 96 130 1896 4 TDi ASZ 4 Motion Bora
VW, Passenger Car EU Caddy 1.9 Diesel 1995 11 2004 01 47 64 1896 4 SDi AYQ Van Caddy
VW, Passenger Car EU Golf 1.9 Diesel 1997 08 2005 06 50 68 1896 4 SDi AGP Hatchback Golf IV
VW, Passenger Car EU Polo 1.9 Diesel 1997 05 2001 09 66 90 1896 4 TDi ALH Estate Polo
VW, Passenger Car EU Golf 1.9 Diesel 1999 05 2002 09 66 90 1896 4 TDi AGR Estate Golf IV
VW, Passenger Car EU Bora 1.9 Diesel 1999 05 2001 06 85 115 1896 4 TDi AUY Estate Bora
VW, Passenger Car EU Bora 2.8 Gasoline 2000 05 2005 05 150 204 2792 6 V6 AUE 4 Motion Bora
VW, Passenger Car EU Golf 2.3 Gasoline 1998 12 2000 10 110 150 2324 5 V5 AGZ Hatchback 4 Motion Golf IV
VW, Passenger Car EU Golf 1.9 Diesel 1998 12 2001 06 85 115 1896 4 TDi AJM Hatchback Golf IV
VW, Passenger Car EU Bora 1.9 Diesel 1998 12 2001 06 85 115 1896 4 TDi AUY Bora
VW, Passenger Car EU Bora 1.9 Diesel 2000 09 2005 05 74 101 1896 4 TDi ATD Estate Bora
VW, Passenger Car EU Golf 2.3 Gasoline 2000 10 2005 06 125 170 2324 5 V5 AQN Hatchback Golf IV
VW, Passenger Car EU Bora 1.9 Diesel 1999 05 2001 06 85 115 1896 4 TDi AJM Estate 4 Motion Bora
VW, Passenger Car EU Golf 1.9 Diesel 1999 05 2005 05 66 90 1896 4 TDi ALH Estate Golf IV
VW, Passenger Car EU Polo 1.9 Diesel 1999 08 2001 09 50 68 1896 4 SDi AQM Estate Polo
VW, Passenger Car EU Polo 1.9 Diesel 1999 08 2001 09 50 68 1896 4 SDi AGP Polo
VW, Passenger Car EU Bora 1.9 Diesel 1999 02 2001 06 85 115 1896 4 TDi AJM 4 Motion Bora
VW, Passenger Car EU Golf 1.9 Diesel 2000 11 - 96 130 1896 4 TDi ASZ Estate Golf IV
VW, Passenger Car EU Polo 1.9 Diesel 2006 05 - 74 101 1896 4 TDi BMT Hatchback Polo
VW, Passenger Car EU Golf 1.9 Diesel 2000 09 - 74 101 1896 4 TDi ATD Estate Golf IV
VW, Passenger Car EU Golf 1.9 Diesel 2000 09 - 74 101 1896 4 TDi ATD Estate 4 Motion Golf IV
VW, Passenger Car EU Bora 1.9 Diesel 2000 09 2005 05 74 101 1896 4 TDi ATD Bora
VW, Passenger Car EU Beetle 1.9 Diesel 2003 06 - 74 100 1896 4 TDi AXR Convertible New Beetle
VW, Passenger Car EU Caddy 1.9 Diesel 1996 10 2004 01 66 90 1896 4 TDi ALH Estate Caddy
VW, Passenger Car EU Polo 1.9 Diesel 1999 10 2001 09 66 90 1896 4 TDi AGR Polo
VW, Passenger Car EU Golf 1.9 Diesel 1997 08 2004 05 81 110 1896 4 TDi AHF Hatchback Golf IV
VW, Passenger Car EU Golf 1.9 Diesel 1997 10 2004 05 66 90 1896 4 TDi ALH Hatchback Golf IV
VW, Passenger Car EU Bora 2.3 Gasoline 1998 10 2000 10 110 150 2324 5 V5 AGZ Bora
VW, Passenger Car EU Bora 1.9 Diesel 1998 10 2001 06 81 110 1896 4 TDi AHF Bora
VW, Passenger Car EU Bora 1.9 Diesel 1998 10 2001 06 81 110 1896 4 TDi ASV Bora
VW, Passenger Car EU Golf 1.9 Diesel 1999 05 2001 06 81 110 1896 4 TDi AHF Estate Golf IV
VW, Passenger Car EU Golf 1.9 Diesel 1999 05 2001 06 81 110 1896 4 TDi ASV Estate Golf IV
VW, Passenger Car EU Bora 1.9 Diesel 1999 05 2001 06 85 115 1896 4 TDi AJM Estate Bora
VW, Passenger Car EU Bora 2.8 Gasoline 1999 03 2005 05 150 204 2792 6 V6 AQP 4 Motion Bora
VW, Passenger Car EU Polo 1.9 Diesel 1998 06 2001 09 81 110 1896 4 TDi ASV Estate Polo
VW, Passenger Car EU Golf 2.8 Gasoline 1999 03 2005 06 150 204 2792 6 V6 AQP Hatchback 4 Motion Golf IV
VW, Passenger Car EU Golf 2.8 Gasoline 1999 03 2005 06 150 204 2792 6 V6 BDE Hatchback 4 Motion Golf IV
VW, Passenger Car EU Golf 1.9 Diesel 2000 09 2005 06 74 101 1896 4 TDi ATD Hatchback 4 Motion Golf IV
VW, Passenger Car EU Bora 1.9 Diesel 2000 05 2005 05 110 150 1896 4 TDi ARL Bora
VW, Passenger Car EU Bora 1.9 Diesel 2000 09 2005 05 74 101 1896 4 TDi ATD Estate 4 Motion Bora
VW, Passenger Car EU Bora 2.3 Gasoline 2000 10 2005 05 125 170 2324 5 V5 AQN Bora
VW, Passenger Car EU Bora 2.3 Gasoline 2000 10 2005 05 125 170 2324 5 V5 AQN Estate 4 Motion Bora
VW, Passenger Car EU Beetle 2.3 Gasoline 2000 10 2010 09 125 170 2324 5 V5 AQN Hatchback New Beetle
VW, Passenger Car EU Bora 1.9 Diesel 2004 07 2005 05 66 90 1896 4 TDi AGR Estate Bora
VW, Passenger Car EU Bora 2.8 Gasoline 2000 05 2005 05 150 204 2792 6 V6 AUE Estate 4 Motion Bora
VW, Passenger Car EU Polo 1.9 Diesel 2002 09 - 47 64 1896 4 SDi ASY Polo
VW, Passenger Car EU Bora 2.8 Gasoline 2000 03 2000 05 150 204 2792 6 VR6 AUE Estate Bora
VW, Passenger Car EU Golf 2.3 Gasoline 1997 08 2000 10 110 150 2324 5 V5 AGZ Hatchback Golf IV
VW, Passenger Car EU Golf 1.9 Diesel 1997 10 2004 05 66 90 1896 4 TDi AGR Hatchback Golf IV
VW, Passenger Car EU Golf 1.9 Diesel 1997 08 2004 05 81 110 1896 4 TDi ASV Hatchback Golf IV
VW, Passenger Car EU Bora 1.9 Diesel 1998 10 2001 06 66 90 1896 4 TDi ALH Bora
VW, Passenger Car EU Beetle 1.9 Diesel 1998 01 2004 06 66 90 1896 4 TDi ALH Hatchback New Beetle
VW, Passenger Car EU Bora 1.9 Diesel 1998 10 2005 05 50 68 1896 4 SDi AQM Bora
VW, Passenger Car EU Golf 1.9 Diesel 1998 07 2002 04 66 90 1896 4 TDi AGR Hatchback 4 Motion Golf IV
VW, Passenger Car EU Golf 1.9 Diesel 1998 07 - 66 90 1896 4 TDi ALH Hatchback 4 Motion Golf IV
VW, Passenger Car EU Bora 1.9 Diesel 1999 05 2001 06 81 110 1896 4 TDi ASV Estate Bora
VW, Passenger Car EU Golf 1.9 Diesel 1999 05 2006 05 66 90 1896 4 TDi ALH Estate Golf IV
VW, Passenger Car EU Golf 1.9 Diesel 1999 08 2001 06 85 115 1896 4 TDi AUY Estate Golf IV
VW, Passenger Car EU Polo 1.9 Diesel 1998 06 2001 09 81 110 1896 4 TDi ASV Polo
VW, Passenger Car EU Golf 2.8 Gasoline 1999 03 2005 06 150 204 2792 6 V6 AUE Hatchback 4 Motion Golf IV
VW, Passenger Car EU Bora 1.9 Diesel 2000 11 2005 05 96 130 1896 4 TDi ASZ Estate 4 Motion Bora
VW, Passenger Car EU Polo 1.9 Diesel 2001 10 - 74 101 1896 4 TDi ATD Hatchback Polo
VW, Passenger Car EU Golf 1.9 Diesel 2000 09 2005 06 74 101 1896 4 TDi AXR Hatchback Golf IV
VW, Passenger Car EU Bora 1.9 Diesel 2000 09 2005 05 74 101 1896 4 TDi AXR Bora
VW, Passenger Car EU Bora 2.3 Gasoline 2000 10 2005 05 125 170 2324 5 V5 AQN Estate Bora
Seat, Passenger Car EU Cordoba 1.9 Diesel 1996 09 1999 06 47 64 1896 4 SDi AEY Estate Cordoba
Seat, Passenger Car EU Cordoba 1.9 Diesel 1996 08 1999 06 66 90 1896 4 TDi AHU Estate Cordoba
Seat, Passenger Car EU Toledo 2.3 Gasoline 1999 04 2001 05 110 150 2324 5 V5 AGZ Toledo
Seat, Passenger Car EU Toledo 1.9 Diesel 1999 04 2006 05 81 110 1896 4 TDi ASV Toledo
Seat, Passenger Car EU Cordoba 1.9 Diesel 1999 06 2002 10 50 68 1896 4 SDi AQM Hatchback Cordoba
Seat, Passenger Car EU Cordoba 1.9 Diesel 1999 06 2002 10 66 90 1896 4 TDi AHU Hatchback Cordoba
Seat, Passenger Car EU Cordoba 1.9 Diesel 1999 06 2002 10 81 110 1896 4 TDi ASV Hatchback Cordoba
Seat, Passenger Car EU Leon 1.9 Diesel 1999 11 - 66 90 1896 4 TDi ALH Hatchback Leon
Seat, Passenger Car EU Ibiza 1.9 Diesel 1999 08 2002 02 50 68 1896 4 SDi AGP Hatchback Ibiza
Seat, Passenger Car EU Ibiza 1.9 Diesel 1999 08 2002 02 66 90 1896 4 TDi ALH Hatchback Ibiza
Seat, Passenger Car EU Ibiza 1.9 Diesel 1999 08 2002 02 66 90 1896 4 TDi AGR Hatchback Ibiza
Seat, Passenger Car EU Cordoba 1.9 Diesel 2002 09 - 74 100 1896 4 TDi AXR Cordoba
Seat, Passenger Car EU Ibiza 1.9 Diesel 2005 05 - 74 100 1896 4 TDi AXR Hatchback Ibiza
Seat, Passenger Car EU Ibiza 1.9 Diesel 2002 02 - 96 131 1896 4 TDi ASZ Hatchback Ibiza
Seat, Passenger Car EU Toledo 1.9 Diesel 1999 11 2004 06 50 68 1896 4 SDi AQM Toledo
Seat, Passenger Car EU Ibiza 1.9 Diesel 2004 03 - 118 160 1896 4 TDi BUK Hatchback Ibiza Cupra R
Seat, Passenger Car EU Inca 1.9 Diesel 2000 09 - 47 64 1896 4 SDi AYQ Van Inca
Seat, Passenger Car EU Cordoba 1.9 Diesel 1999 06 - 66 90 1896 4 TDi AGR Estate Cordoba
Seat, Passenger Car EU Leon 1.9 Diesel 1999 11 - 66 90 1896 4 TDi AGR Hatchback Leon
Seat, Passenger Car EU Ibiza 1.9 Diesel 1999 08 2002 02 81 110 1896 4 TDi ASV Hatchback Ibiza
Seat, Passenger Car EU Ibiza 1.9 Diesel 2004 03 - 118 160 1896 4 TDi BPX Hatchback Ibiza Cupra R
Seat, Passenger Car EU Cordoba 1.9 Diesel 2002 09 - 74 100 1896 4 TDi ATD Cordoba
Seat, Passenger Car EU Ibiza 1.9 Diesel 2002 02 - 74 100 1896 4 TDi ATD Hatchback Ibiza
Seat, Passenger Car EU Ibiza 1.9 Diesel 2008 03 2010 06 77 105 1896 4 TDi BLS Hatchback Ibiza
Seat, Passenger Car EU Cordoba 1.9 Diesel 1997 07 1999 06 81 110 1896 4 TDi AFN Estate Cordoba
Seat, Passenger Car EU Cordoba 1.9 Diesel 1999 06 - 50 68 1896 4 SDi AQM Estate Cordoba
Seat, Passenger Car EU Cordoba 1.9 Diesel 1999 06 - 50 68 1896 4 SDi AGP Estate Cordoba
Seat, Passenger Car EU Cordoba 1.9 Diesel 2002 10 - 96 131 1896 4 TDi ASZ Cordoba
Seat, Passenger Car EU Cordoba 1.9 Diesel 2005 05 - 96 131 1896 4 TDi BLT Cordoba
Seat, Passenger Car EU Cordoba 1.9 Diesel 2002 09 - 47 64 1896 4 SDi ASY Cordoba
Seat, Passenger Car EU Ibiza 1.9 Diesel 2008 07 2010 06 77 105 1896 4 TDi BLS Coupe Ibiza Spotscoupe
Seat, Passenger Car EU Cordoba 1.9 Diesel 1999 06 2002 10 50 68 1896 4 SDi AGP Hatchback Cordoba
Seat, Passenger Car EU Cordoba 1.9 Diesel 1999 06 - 66 90 1896 4 TDi ALH Estate Cordoba
Seat, Passenger Car EU Cordoba 1.9 Diesel 1999 06 2002 10 81 110 1896 4 TDi ASK Hatchback Cordoba
Seat, Passenger Car EU Ibiza 1.9 Diesel 2006 09 - 74 100 1896 4 TDi BMT Hatchback Ibiza
Seat, Passenger Car EU Cordoba 1.9 Diesel 2002 09 - 74 100 1896 4 TDi BMT Cordoba
Seat, Passenger Car EU Toledo 1.9 Diesel 1999 04 2006 05 81 110 1896 4 TDi AHF Toledo
Seat, Passenger Car EU Cordoba 1.9 Diesel 1999 06 - 81 110 1896 4 TDi ASV Estate Cordoba
Seat, Passenger Car EU Ibiza 1.9 Diesel 1999 08 2002 02 50 68 1896 4 SDi AQM Hatchback Ibiza
Seat, Passenger Car EU Ibiza 1.9 Diesel 2005 05 - 96 131 1896 4 TDi BLT Hatchback Ibiza
Seat, Passenger Car EU Ibiza 1.9 Diesel 2002 02 - 47 64 1896 4 SDi ASY Hatchback Ibiza
Skoda, Passenger Car EU Octavia 1.9 Diesel 2003 01 - 96 130 1896 4 TDi ASZ Hatchback Octavia
Skoda, Passenger Car EU Fabia 1.9 Diesel 2007 10 - 77 105 1896 4 TDi BLS Estate Fabia
Skoda, Passenger Car EU Octavia 1.9 Diesel 2000 08 - 74 100 1896 4 TDi ATD Estate Octavia
Skoda, Passenger Car EU Octavia 1.9 Diesel 2000 08 2004 09 81 110 1896 4 TDi ASV Hatchback Octavia
Skoda, Passenger Car EU Fabia 1.9 Diesel 2000 09 - 74 100 1896 4 TDi AXR Hatchback Fabia
Skoda, Passenger Car EU Fabia 1.9 Diesel 2005 10 - 74 100 1896 4 TDi AXR Fabia
Skoda, Passenger Car EU Fabia 1.9 Diesel 2000 11 - 47 64 1896 4 SDi ASY Estate Fabia
Skoda, Passenger Car EU Fabia 1.9 Diesel 2007 10 - 77 105 1896 4 TDi BSW Estate Fabia
Skoda, Passenger Car EU Octavia 1.9 Diesel 2005 10 - 74 100 1896 4 TDi AXR Hatchback Octavia
Skoda, Passenger Car EU Octavia 1.9 Diesel 1998 07 - 66 90 1896 4 TDi AGR Estate Octavia
Skoda, Passenger Car EU Octavia 1.9 Diesel 2000 09 - 74 100 1896 4 TDi ATD Estate 4x4 Octavia
Skoda, Passenger Car EU Roomster 1.9 Diesel 2006 09 - 77 105 1896 4 TDi BSW MPV Roomster
Skoda, Passenger Car EU Roomster 1.9 Diesel 2006 09 - 77 105 1896 4 TDi BLS MPV Roomster
Skoda, Passenger Car EU Roomster 1.9 Diesel 2006 03 2006 05 74 101 1896 4 TDi AXR MPV Roomster
Skoda, Passenger Car EU Fabia 1.9 Diesel 2005 10 2007 12 74 100 1896 4 TDi AXR Estate Fabia
Skoda, Passenger Car EU Fabia 1.9 Diesel 2005 10 2007 04 96 130 1896 4 TDi BLT Hatchback RS Fabia
Skoda, Passenger Car EU Octavia 1.9 Diesel 2003 01 - 96 130 1896 4 TDi ASZ Estate Octavia
Skoda, Passenger Car EU Octavia 1.9 Diesel 2000 08 - 74 100 1896 4 TDi AXR Estate Octavia
Skoda, Passenger Car EU Fabia 1.9 Diesel 1999 12 - 47 64 1896 4 SDi ASY Hatchback Fabia

TEST & REPAIR SERVICE

Unistart has its own workshops for remanufacturing with the latest testing equipment. This enables us to provide an excellent (and free) technical helpline and aftersales support and backup service.

You can speak to one of our friendly and knowledgeable technicians who will be glad to Help with any enquiries no matter how large or small. Call us on 020 8 983 9969.
