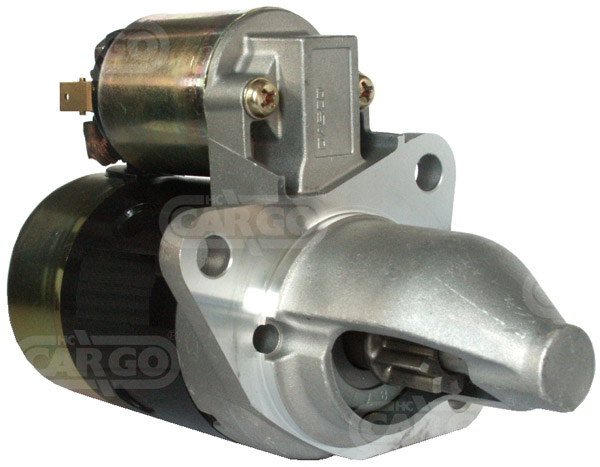

113346 - Starter (113346)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 0.8, Mount. flange 67.00, Drive dist. 39.50, Dist./back 132.00, Dist./front 77.50, No. of teeth 9, B+ M8, Gear type DD/GR, Dist. 70.50, Dist. 2 110.00, Dist. 3 84.00,
Rotation: ACR, No./mount. holes 3 (0),
Drive Type: Steel,
Total Length: 210.50, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 12
kW 0.8

Physical specifications (Starter)
A Mount. flange 67.00
B Drive dist. 39.50
F Dist./back 132.00
G Dist./front 77.50
H No. of teeth 9
I B+ M8
N Gear type DD/GR
O Dist. 70.50
O Dist. 2 110.00
O Dist. 3 84.00
P Rotation ACR
R Total length 210.50

Further information (Starter)
No./mount. holes 3 (0)
Drive type Steel
Oil sealed No
Waterproof No

Replacing
0001106016 BOSCH
11.130.783 ISKRA
26660 LUCAS
26690 LUCAS
26693 LUCAS
26694 LUCAS
27034 LUCAS
30000a MAGNETI MARELLI
30001a MAGNETI MARELLI
30002a MAGNETI MARELLI

UNISTART Price: £83.89

Sorry, this item is out of stock.

The 113346 - Starter is shown in: Starters & Alternators > Starters , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Rover, Passenger Car EU 100 1.4 Gasoline 1994 04 1997 10 55 75 1396 4 14K2A Convertible Metro 114
Rover, Passenger Car EU 200 1.4 Gasoline 1993 01 1999 11 76 103 1396 4 i 14K4F Convertible 214
Rover, Passenger Car EU 400 1.4 Gasoline 1990 04 1995 04 66 90 1396 4 14K4C 414
Rover, Passenger Car EU 100 1.4 Gasoline 1990 03 1998 12 55 75 1396 4 14K2D Hatchback 114
Rover, Passenger Car EU 200 1.4 Gasoline 1995 11 2000 03 55 75 1396 4 i 14K2F Hatchback 214
Rover, Passenger Car EU 400 1.4 Gasoline 1995 05 2000 03 76 103 1396 4 Si 14K4F Hatchback 414
Rover, Passenger Car EU 200 1.4 Gasoline 1990 01 1995 10 70 95 1396 4 14K4C Hatchback 214
Rover, Passenger Car EU 45 1.6 Gasoline 2000 02 - 80 109 1588 4 16K4F Hatchback 45
Rover, Passenger Car EU 25 1.4 Gasoline 1999 10 2005 05 76 103 1396 4 16V 14K4F Hatchback 25
Rover, Passenger Car EU 100 1.4 Gasoline 1990 03 1991 08 69 94 1396 4 GTi 16V 14K4D Hatchback Metro 114
Rover, Passenger Car EU 25 1.1 Gasoline 2004 01 2005 05 55 75 1119 4 16V 11K4F Hatchback 25
Rover, Passenger Car EU 200 1.4 Gasoline 1992 01 1999 11 66 90 1396 4 i 14K4D Convertible 214
Rover, Passenger Car EU 400 1.4 Gasoline 1993 01 1995 04 76 103 1396 4 14K4F 414
Rover, Passenger Car EU 100 1.4 Gasoline 1990 03 1998 12 66 90 1396 4 16V 14K4C Hatchback Metro 114
Rover, Passenger Car EU 100 1.4 Gasoline 1994 04 1997 10 55 75 1396 4 14K2D Convertible Metro 114
Rover, Passenger Car EU 400 1.4 Gasoline 1995 05 2000 03 76 103 1396 4 Si 14K4F 414
Rover, Passenger Car EU 400 1.6 Gasoline 1995 05 2000 03 82 112 1588 4 Si 16K4F 416
Rover, Passenger Car EU 100 1.4 Diesel 1992 10 1994 12 38 52 1361 4 TUD3 Hatchback 114
Rover, Passenger Car EU 200 1.1 Gasoline 1998 01 2000 03 44 60 1119 4 11K2D Hatchback 211
Rover, Passenger Car EU 100 1.4 Gasoline 1994 10 1995 10 76 103 1396 4 GSi 14K4F Hatchback 114
Rover, Passenger Car EU 400 1.4 Gasoline 1996 03 1997 12 55 75 1396 4 14K2F Hatchback 400
Rover, Passenger Car EU 200 1.4 Gasoline 1989 10 1995 10 66 90 1396 4 14K4C Hatchback 214
Rover, Passenger Car EU 200 1.4 Gasoline 1993 09 1995 10 55 75 1396 4 14K2D Hatchback 214
Rover, Passenger Car EU 200 1.4 Gasoline 1993 09 1995 10 55 75 1396 4 14K2A Hatchback 214
Rover, Passenger Car EU 200 1.4 Gasoline 1995 11 2000 03 76 103 1396 4 Si 14K4F Hatchback 214
Rover, Passenger Car EU 200 1.6 Gasoline 1995 11 2000 03 82 112 1588 4 Si 16K4F Hatchback 216
Rover, Passenger Car EU 400 1.6 Gasoline 1996 03 1999 11 82 111 1588 4 16V 16K4F Coupe 416
Rover, Passenger Car EU 200 1.4 Gasoline 1989 10 1995 10 66 90 1396 4 14K4D Hatchback 214
Rover, Passenger Car EU 200 1.4 Gasoline 1992 12 1995 10 76 103 1396 4 14K4F Hatchback 214
Rover, Passenger Car EU 100 1.4 Gasoline 1990 03 1998 12 55 75 1396 4 14K2A Hatchback Metro 114
Rover, Passenger Car EU 110 1.1 Gasoline 1990 03 1998 12 44 60 1119 4 11K2A Hatchback Metro 111
Rover, Passenger Car EU 100 1.4 Gasoline 1990 03 1998 12 66 90 1396 4 16V 14K4D Hatchback Metro 114
Rover, Passenger Car EU 200 1.6 Gasoline 1996 01 1999 11 82 111 1588 4 i 16K4F Convertible 216
Rover, Passenger Car EU 25 1.4 Gasoline 1999 10 2005 05 62 84 1396 4 16V 14K4M Hatchback 25
Rover, Passenger Car EU 25 1.6 Gasoline 1999 10 2005 05 80 109 1588 4 16V 16K4F Hatchback 25
Rover, Passenger Car EU 214 1.4 Gasoline 1990 04 1992 09 70 95 1396 4 14K4C Convertible 214
Rover, Passenger Car EU 200 1.4 Gasoline 1992 01 1999 11 66 90 1396 4 i 14K4C Convertible 214
Rover, Passenger Car EU 400 1.4 Gasoline 1990 04 1995 04 66 90 1396 4 14K4D 414
Rover, Passenger Car EU 100 1.1 Gasoline 1990 03 1998 12 44 60 1119 4 11K2D Hatchback Metro 111
Rover, Passenger Car EU 400 1.6 Gasoline 1995 05 2000 03 82 112 1588 4 Si 16K4F Hatchback 416
Rover, Passenger Car EU 400 1.6 Gasoline 1995 06 2000 03 83 113 1590 4 Si D16Y2 Hatchback 416
Rover, Passenger Car EU 100 1.4 Gasoline 1991 08 1998 12 76 103 1396 4 GTi 16V 14K4F Hatchback 114
Rover, Passenger Car EU 100 1.1 Gasoline 1994 04 1997 10 44 60 1119 4 11K2D Convertible Metro 111
Rover, Passenger Car EU 400 1.6 Gasoline 1995 05 2000 03 83 113 1590 4 Si D16Y2 416
Rover, Passenger Car EU 100 1.4 Gasoline 1990 03 1991 08 69 94 1396 4 GTi 16V 14K4C Hatchback Metro 114
Rover, Passenger Car EU 100 1.4 Gasoline 1997 03 1998 10 75 102 1396 4 14K4F Convertible 114
Rover, Passenger Car EU 45 1.4 Gasoline 2000 02 - 76 103 1396 4 14K4F Hatchback 45
Rover, Passenger Car EU 45 1.4 Gasoline 2000 02 - 76 103 1396 4 14K4F 45
Rover, Passenger Car EU Streetwise 1.4 Gasoline 2003 08 - 76 103 1396 4 14K4F Hatchback Streetwise
VW, Trucks EU Delivery 4.3 Diesel 1997 03 2000 02 69 94 4300 Platform / Chassis 8.1
VW, Trucks EU Delivery 4.3 Diesel 1994 03 2002 02 69 94 4300 Platform / Chassis 7.1
VW, Trucks EU Delivery 4.3 Diesel 1994 03 2002 02 99 135 4300 Platform / Chassis 8.14
MG, Passenger Car EU Express 1.4 Gasoline 2003 03 2005 05 76 103 1396 4 14K4F Hatchback Express
MG, Passenger Car EU ZR 1.4 Gasoline 2001 06 - 76 103 1396 4 14K4F Hatchback ZR 105
