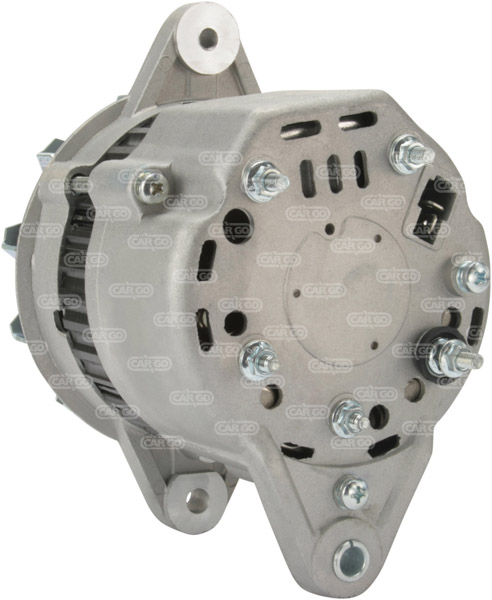

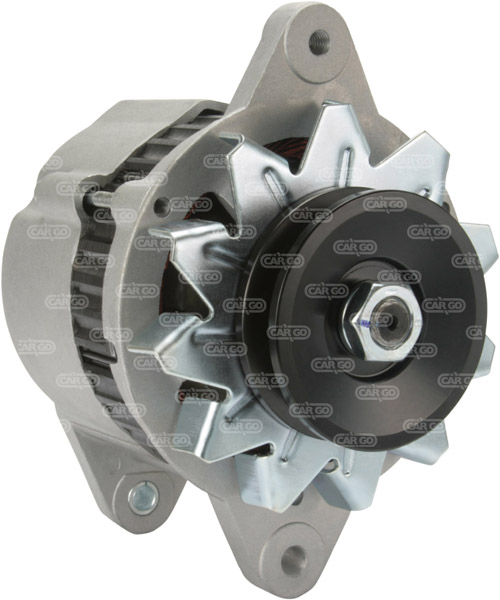

113347 - Alternator (113347)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 20,
Bracket Hole: 8.15, Belt. adj. bracket hole M8,
Width/Holder Arm: 14.50, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 80.50,
Pulley Dia.: 75.00,
Pulley Dist.: 42.50,
Grooves/Pulley: 1,
Radius: 77.50,
Radius: 77.50,
B+ Position: M5,
Regulator Plug: or plug PL09,
Blower: EF, Pulley P,
Total Length: 162.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 20 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 8.15 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 14.50 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| C | Mount. bracket dist. 80.50 | |||
| H | Pulley dia. 75.00 | |||
| A | Pulley dist. 42.50 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 77.50 | |||
| j | Radius 77.50 | |||
| k | B+ position M5 | |||
| o | Regulator plug PL09 | |||
| R | Total length 162.00 | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | P | |||
Replacing | ||||
| 5812003580 | ISUZU | |||
| 5812210540 | ISUZU | |||
| lr120-23 | HITACHI | |||
