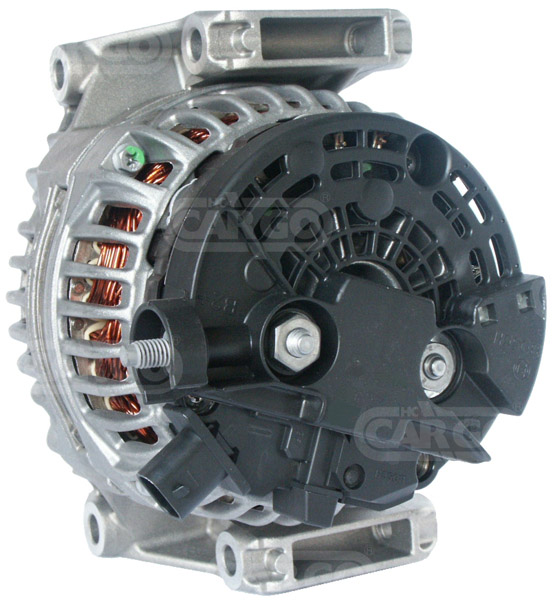

113352 - Alternator (113352)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 120,
Bracket Hole: 8.50, Belt. adj. bracket hole 9.30,
Width/Holder Arm: 79.50, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 57.00,
Pulley Dia.: 56.80,
Pulley Dist.: 32.00,
Grooves/Pulley: 5,
Radius: 81.00,
Radius: >85,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL75,
Blower: IF, Pulley SP,
Total Length: 186.00

Electrical specifications (Alternator)
Voltage 14
Amp 120

Physical specifications (Alternator)
D Bracket hole 8.50
G Belt. adj. bracket hole 9.30
B Width/holder arm 79.50
E Belt. adj. brackethole pos. 60
C Mount. bracket dist. 57.00
H Pulley dia. 56.80
A Pulley dist. 32.00
i Grooves/pulley 5
j Radius 81.00
j Radius >85
k B+ position M8
n Rotation CR
o Regulator plug PL75
R Total length 186.00

Further information (Alternator)
Blower IF
Pulley SP

Replacing
01124515033 BOSCH
0124325168 BOSCH
0124415009 BOSCH
0124415025 BOSCH
0124415026 BOSCH
0124425004 BOSCH
0124425019 BOSCH
0124425053 BOSCH
0124425056 BOSCH
0124515033 BOSCH

UNISTART Price: £154.72

Sorry, this item is out of stock.

The 113352 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Opel, Passenger Car EU Speedster 2 Gasoline 2003 04 - 147 200 1998 4 Turbo Z20LET Convertible Speedster
Opel, Passenger Car EU Vectra 2.2 Gasoline 2000 09 2003 07 108 147 2198 4 i 16V Z22SE Estate Vectra B
Opel, Passenger Car EU Vectra 2 Gasoline 2003 03 - 129 175 1998 4 Turbo 16V Z20NET Hatchback GTS Vectra C
Opel, Passenger Car EU Vectra 2.2 Gasoline 2003 10 - 114 155 2198 4 Z22YH Hatchback GTS Direct Vectra C
Opel, Passenger Car EU Vectra 2.2 Gasoline 2003 10 - 114 155 2198 4 Z22YH Direct Vectra C
Opel, Passenger Car EU Astra 2.2 Gasoline 2000 09 2005 05 108 147 2198 4 i 16V Z22SE Coupe Astra G
Opel, Passenger Car EU Zafira 2.2 Gasoline 2000 09 2005 06 108 147 2198 4 16V Z22SE MPV Zafira A
Opel, Passenger Car EU Vectra 2.2 Gasoline 2002 04 - 108 147 2198 4 i 16V Z22SE Vectra C
Opel, Passenger Car EU Astra 2.2 Gasoline 2000 06 2005 01 108 147 2198 4 i 16V Z22SE Hatchback Astra G
Opel, Passenger Car EU Vectra 2.2 Gasoline 2002 08 - 108 147 2198 4 i 16V Z22SE Hatchback GTS Vectra C
Opel, Passenger Car EU Astra 2.2 Gasoline 2001 03 2004 07 108 147 2198 4 i 16V Z22SE Estate Astra G
Opel, Passenger Car EU Astra 2.2 Gasoline 2001 03 2005 10 108 147 2198 4 i 16V Z22SE Convertible Astra G
Opel, Passenger Car EU Vectra 2 Gasoline 2003 03 - 129 175 1998 4 Turbo 16V Z20NET Vectra C
Opel, Passenger Car EU Vectra 2 Gasoline 2003 10 - 129 175 1998 4 Turbo Z20NET Estate Vectra C
Opel, Passenger Car EU Astra 2.2 Gasoline 2001 03 2005 01 108 147 2198 4 i 16V Z22SE Astra G
Opel, Passenger Car EU Speedster 2.2 Gasoline 2000 09 - 108 147 2198 4 i Z22SE Convertible Speedster
Opel, Passenger Car EU Vectra 2.2 Gasoline 2000 09 2003 07 108 147 2198 4 i 16V Z22SE Hatchback Vectra B
Opel, Passenger Car EU Vectra 2.2 Gasoline 2000 09 2002 04 108 147 2198 4 i 16V Z22SE Vectra B
Opel, Passenger Car EU Vectra 2.2 Gasoline 2003 10 - 114 155 2198 4 Z22YH Estate Direct Vectra C
Opel, Passenger Car EU Signum 2 Gasoline 2003 05 - 129 175 1998 4 Turbo Z20NET Hatchback Signum
Vauxhall, Passenger Car EU Zafira 2.2 Gasoline 2000 09 - 108 147 2198 4 16V Z22SE MPV Zafira
Vauxhall, Passenger Car EU Vectra 2.2 Gasoline 2000 09 - 108 147 2198 4 i 16V Z22SE Vectra
Vauxhall, Passenger Car EU Vectra 2 Gasoline 2003 03 - 129 175 1998 4 Turbo 16V Z20NET Vectra
Vauxhall, Passenger Car EU Vectra 2.2 Gasoline 2003 10 - 114 155 2198 4 Z22YH Direct Vectra
Vauxhall, Passenger Car EU Astra 2.2 Gasoline 2001 03 2005 05 108 147 2198 4 16V Z22SE Estate Astra MK IV
Vauxhall, Passenger Car EU Vectra 2.2 Gasoline 2003 10 - 114 155 2198 4 Z22YH Estate Direct Vectra
Vauxhall, Passenger Car EU Vectra 2.2 Gasoline 2003 10 - 114 155 2198 4 Z22YH Hatchback Direct GTS Vectra
Vauxhall, Passenger Car EU Astra 2.2 Gasoline 2000 03 2005 08 108 147 2198 4 Z22SE Coupe Astra Mk IV
Vauxhall, Passenger Car EU Signum 2 Gasoline 2003 05 - 129 175 1998 4 i Turbo Z20NET Hatchback Signum
Vauxhall, Passenger Car EU Signum 2.2 Gasoline 2003 05 2008 05 114 155 2198 4 i Z22YH Hatchback Signum
Vauxhall, Passenger Car EU Vectra 2 Gasoline 2003 03 - 129 175 1998 4 Turbo 16V Z20NET Hatchback GTS Vectra
Vauxhall, Passenger Car EU VX 2 Gasoline 2003 04 2005 07 147 200 1998 4 i Turbo Z20LET Convertible 220 VX
Vauxhall, Passenger Car EU Vectra 2 Gasoline 2003 10 - 129 175 1998 4 Turbo 16V Z20NET Estate Vectra
Vauxhall, Passenger Car EU Vectra 2.2 Gasoline 2002 04 - 108 147 2198 4 i 16V Z22SE Vectra
Vauxhall, Passenger Car EU Speedster 2.2 Gasoline 2000 09 - 108 147 2198 4 i Z22SE Convertible Speedster
Vauxhall, Passenger Car EU Vectra 2.2 Gasoline 2000 09 2003 07 108 147 2198 4 i 16V Z22SE Hatchback Vectra
Vauxhall, Passenger Car EU Vectra 2.2 Gasoline 2000 09 - 108 147 2198 4 i 16V Z22SE Estate Vectra
Vauxhall, Passenger Car EU Astra 2.2 Gasoline 2001 03 2005 05 108 147 2198 4 16V Z22SE Astra MK IV
Vauxhall, Passenger Car EU Astra 2.2 Gasoline 2001 03 2005 10 108 147 2198 4 16V Z22SE Convertible Astra MK IV
Opel, Passenger Car EU Vectra 2 Gasoline 2003 03 - 129 175 1998 4 Turbo 16V Z20NET Hatchback GTS Vectra C
Opel, Passenger Car EU Vectra 2.2 Gasoline 2003 10 - 114 155 2198 4 Z22YH Hatchback GTS Direct Vectra C
Opel, Passenger Car EU Vectra 2.2 Gasoline 2003 10 - 114 155 2198 4 Z22YH Direct Vectra C
Opel, Passenger Car EU Vectra 2.2 Gasoline 2002 04 - 108 147 2198 4 i 16V Z22SE Vectra C
Opel, Passenger Car EU Vectra 2.2 Gasoline 2002 08 - 108 147 2198 4 i 16V Z22SE Hatchback GTS Vectra C
Opel, Passenger Car EU Vectra 2 Gasoline 2003 10 - 129 175 1998 4 Turbo Z20NET Estate Vectra C
Opel, Passenger Car EU Vectra 2 Gasoline 2003 03 - 129 175 1998 4 Turbo 16V Z20NET Vectra C
Opel, Passenger Car EU Signum 2 Gasoline 2003 05 - 129 175 1998 4 Turbo Z20NET Hatchback Signum
Opel, Passenger Car EU Vectra 2.2 Gasoline 2003 10 - 114 155 2198 4 Z22YH Estate Direct Vectra C
Opel, Passenger Car EU Signum 2.2 Gasoline 2003 05 - 114 155 2198 4 Z22YH Hatchback Signum
